SPG600 & SPG300 Sync Pulse Generators Service Manual 2-13
Logo Submenu
This menu allows you to overlay and position a logo graphic on an output test
signal. Use the up (
S) or down (T) arrow button to scroll through the menu.

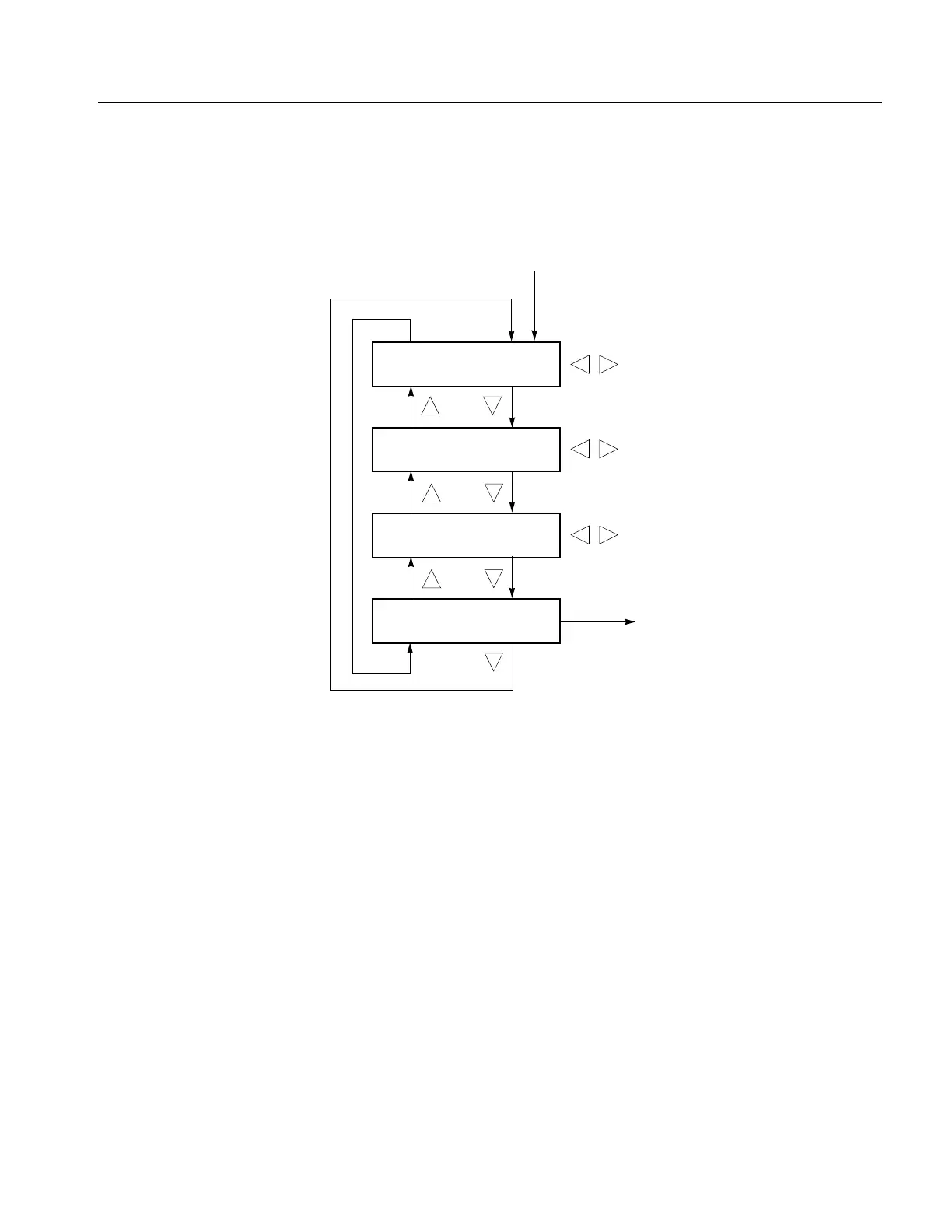

Figure 2-7 shows the Logo submenu diagram.
Figure 2-7: Logo submenu diagram
You can create a logo file using the Logo Generator application. Refer to the
SPG600 & SPG300 Sync Pulse Generators User Manual included on the product
CD-ROM for detailed information for using Logo Generator.
Select Logo in the Overlay submenu
Select OFF or a logo
Set the horizontal position
Save the display position for the logo
: LOGO
X : 0.0 % APH
Set the vertical position
: LOGO
Y : 0.0 % APH
ENTER
: LOGO
 Logo: OFF ↵
: LOGO : SAVE
Press ENTER to sav
↵
