2-18 SPG600 & SPG300 Sync Pulse Generators Service Manual
Embedded Submenu
This menu allows you to enable or disable the generation of embedded audio, select
an audio channel, set the state of the audio emphasis bits, and set the resolution of
the serial digital audio signal data. Use the up (
S) or down (T) arrow button to
scroll through the menu. Figure 2-12 shows the Embedded submenu diagram.

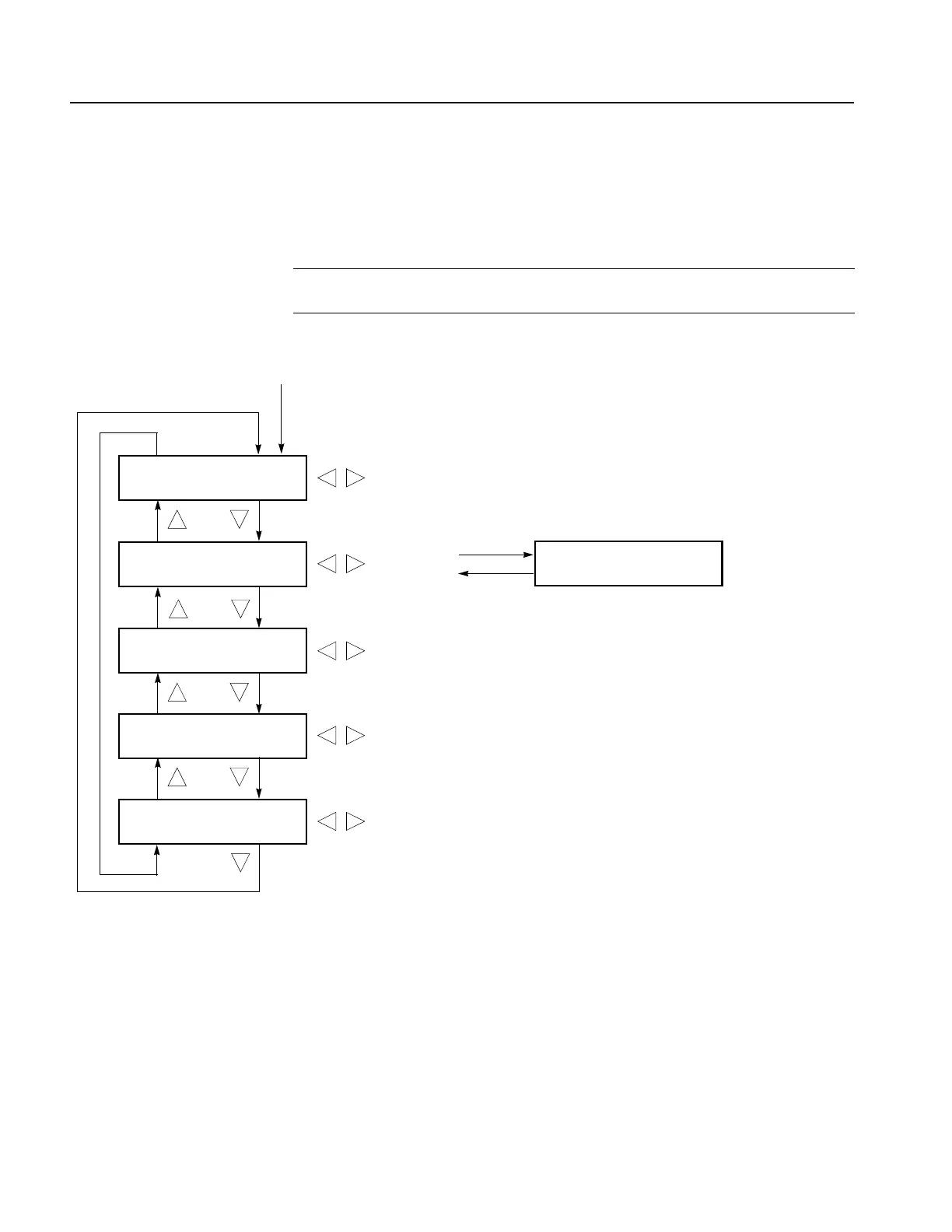

Figure 2-12: Embedded submenu diagram
NOTE. The Embedded submenu contents are common for the serial digital black
signals and the serial digital test signals except for the menu title on the first line.
Status: Disable
Status: Enable
Emphasis: NO
Emphasis: CD
Emphasis: CCITT
Select EMBEDDED in the Audio menu
ENTER
CANCEL
To Audio Channel submenu
(page 2-19)
Channel: 1
Channel: 2
Channel: 3
Channel: 4
Channel: ALL
Sync: Frame
Sync: w/o Frame No.
Sync: Async
Resolution: 20 bits
Resolution: 24 bits
STD/BLK : GRP-1
 Resolution: 20 bits ↵
STD/BLK : GRP-1)
 Sync: Frame ↵
STD/BLK : GRP-1
 Emphasis: NO ↵
STD/BLK : GRP-1
Channel: 1
STD/BLK : GRP-1
n Status: Disable ↵
