SPG600 & SPG300 Sync Pulse Generators Service Manual 2-17
AES/EBU Submenu
This menu allows you to select an audio channel, the state of the audio emphasis
bits, the resolution of the serial digital audio signal data, and the audio timing. Use
the up (
S) or down (T) arrow button to scroll through the menu. Figure 2-11
shows the AES/EBU submenu diagram.

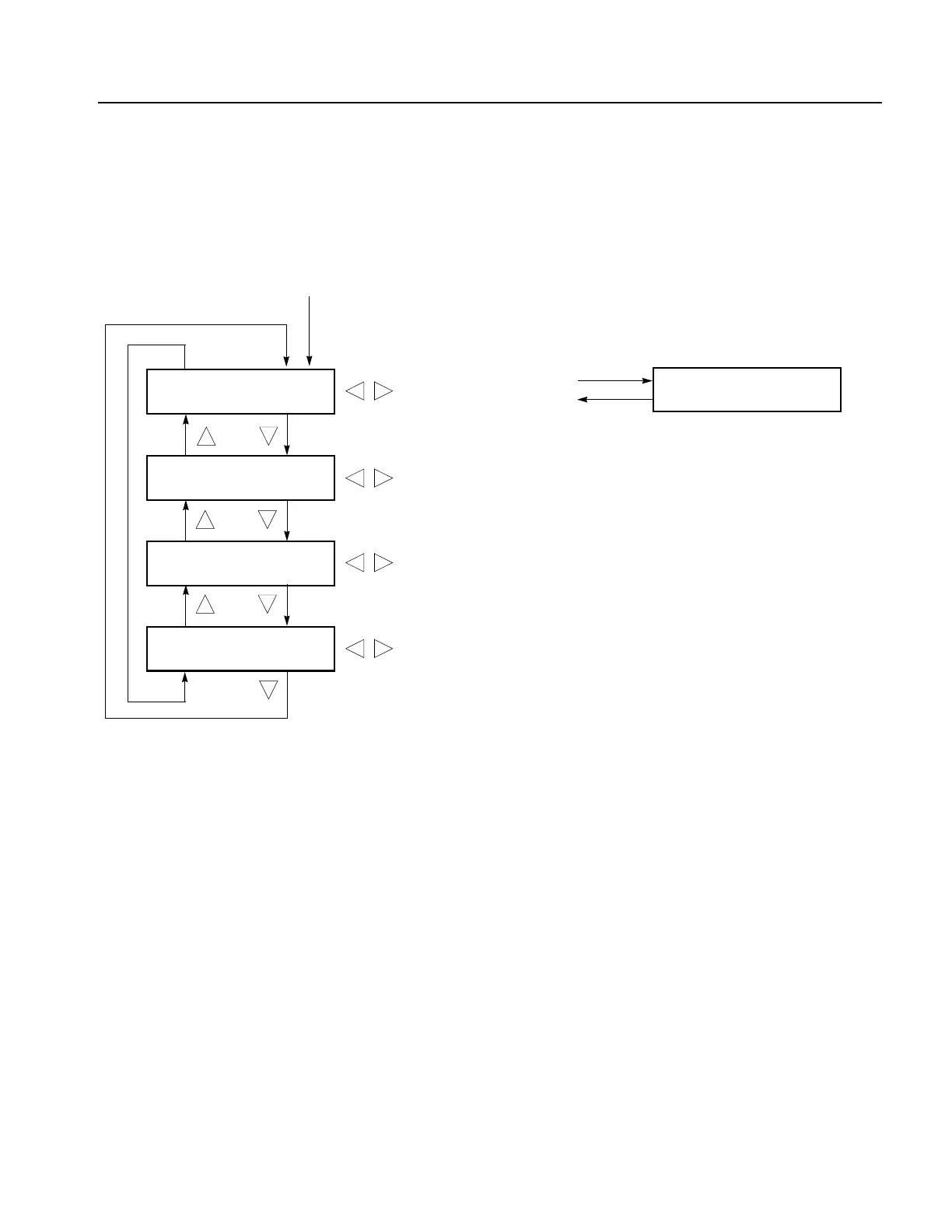

Figure 2-11: AES/EBU submenu diagram
Emphasis: NO
Emphasis: CD
Emphasis: CCITT
Select AES/EBU in the Audio menu
ENTER
CANCEL
To Audio channel submenu
(page 2-19)
Resolution: 20 bits
Resolution: 24 bits
Set the audio timing in 1 µs steps.
AES/EBU
Delay: 0.0
µsec
AES/EBU
Resolution: 20 bits ↵
AES/EBU
Emphasis: NO ↵
AES/EBU
Channel : 1
1 SPG600 only
Channel: 1 Channel: 6
1
Channel: 2 Channel: 7
1
Channel: 3 Channel: 8
1
Channel: 4 Channel: ALL
1
Channel: 5
1
To Next Page
