Appendix C: Using Logo Generator
SPG600 & SPG300 Sync Pulse Generators User Manual C-7
Gray Scale Settings Dialog Box. The Gray Scale Settings dialog box (see
Figure C-2) appears when you click the Gray Level command.

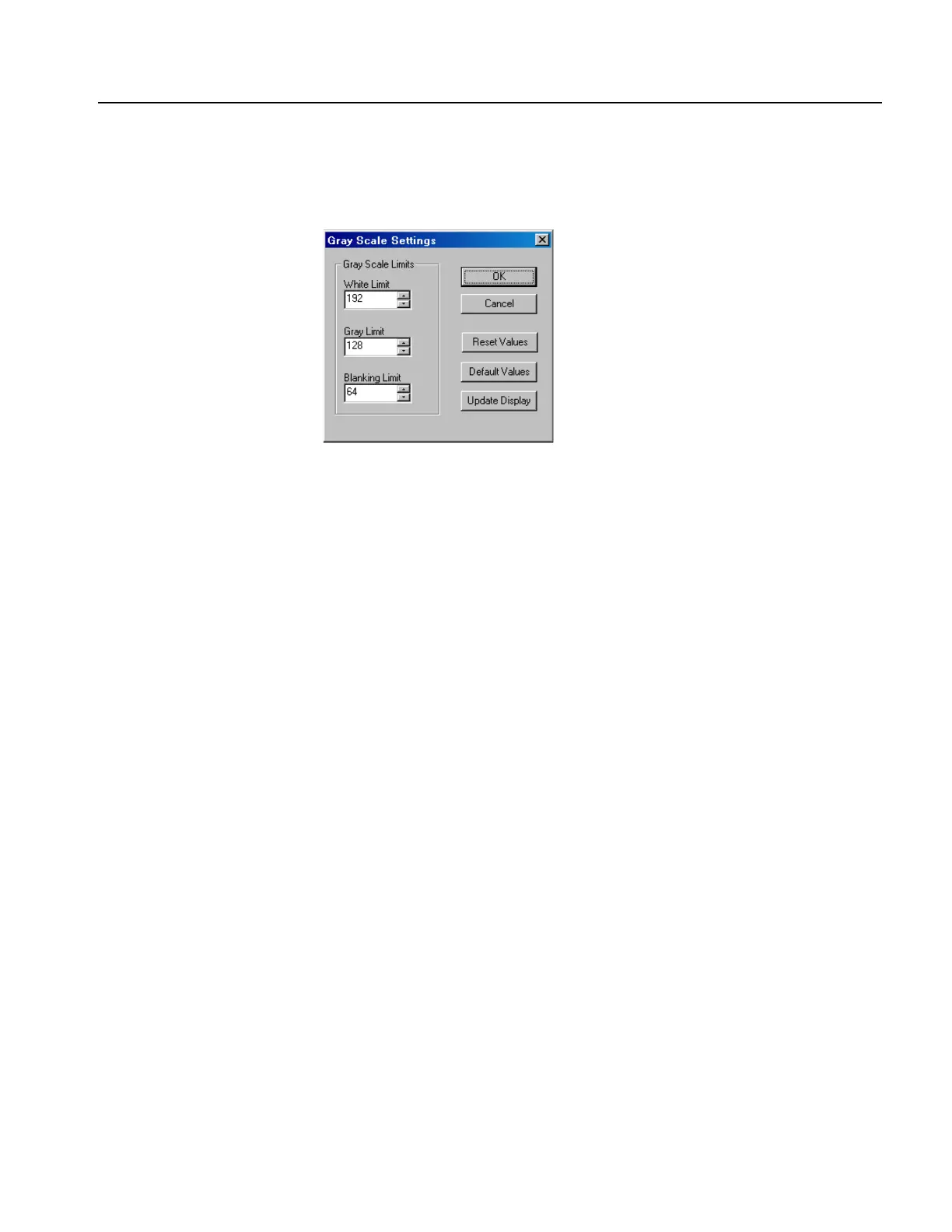

Figure C-2: Gray Scale Settings dialog box
In this dialog box, you can set the following parameters:
White Limit: Sets the maximum level for the Gray 2 level. The gray scale
values greater than this value become white level. You can set the value from
0 to 255. The default value is 192.
Gray Limit: Sets the maximum level for the Gray 1 level. The gray scale
values greater than this value become white level. You can set the value from
0 to 255. The default value is 128.
Blanking Limit: Sets the maximum level for the Transparent. You can set the
value from 0 to 255. The default value is 64.
OK button enables all of the settings in the dialog box and closes the dialog box.
Cancel button cancels all of the settings in the dialog box and closes the dialog box.
Reset Values button resets all of the settings to the values when the dialog box is
first displayed.
Default Values button resets all of the settings to their default value.
Update Display button enables all of the settings with the dialog box opened.
