Menus
SPG600 & SPG300 Sync Pulse Generators User Manual 3-25
Genlock Timing Submenu
This menu allows you to adjust the timing offset of the input signal relative to the
internal reference signal (frame reset signal). Use the up (
S) or down (T) arrow
button to scroll through the menu. Figure 3-16 shows the Genlock timing submenu
diagram.

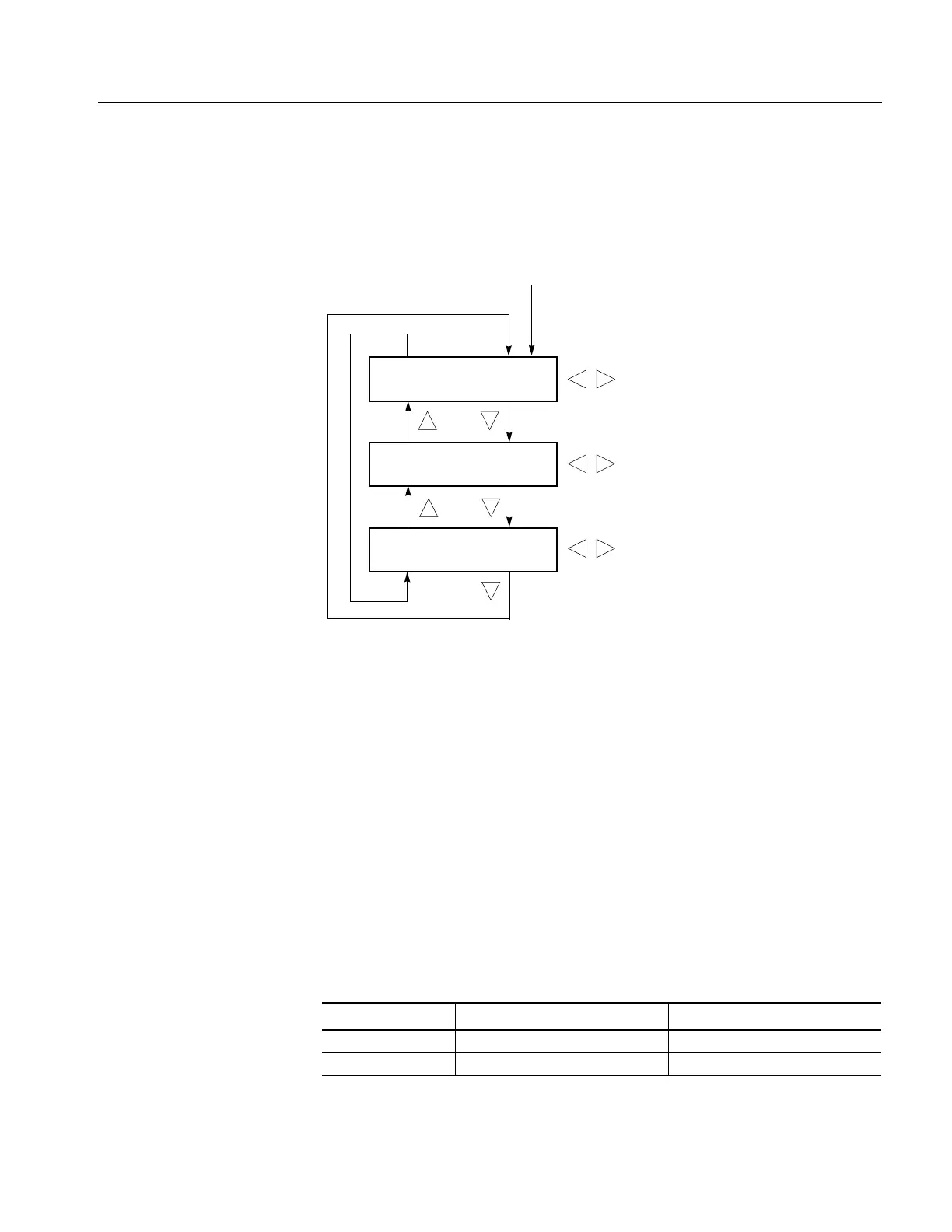

Figure 3-16: Genlock timing submenu diagram
VERTICAL. Use the left (
W) or right (X) arrow button to adjust the vertical offset.
The value wraps around, so when the maximum value is reached the next value is
the minimum value. The range of the timing adjustment depends on the selected
signal format. Refer to Table 3-6 for the appropriate range.
HORIZONTAL. Use the left (
W) or right (X) arrow button to adjust the coarse
horizontal offset. The value wraps around, so when the maximum value is reached
the next value is the minimum value. The range of the timing adjustment depends
on the selected signal format. Refer to Table 3-6 for the appropriate range.
FINE. Use the left (
W) or right (X) arrow button to adjust the fine horizontal offset.
You can set the value from -18.5 ns to +18.5 ns in 0.1 ns steps.
Table 3-6: Genlock timing range
Format name Vertical settings
Horizontal settings (
µs)
NTSC -525 to +525 -63.5556 to +63.5185
PAL -1250 to +1250 -64.0000 to +63.9630
Select GENLOCK TIMING in the Genlock menu
Set the vertical timing in 1 line steps
Set the horizontal timing in 1 clock steps
Set the horizontal timing in 0.1 ns steps
TIMING : VERTICAL
0 Line (s)
TIMING : HORIZONTAL
0.0000
µsec
TIMING : FINE
0.0 nsec
To Next Page
