Menus
SPG600 & SPG300 Sync Pulse Generators User Manual 3-23
Genlock Menu
Pressing the GENLOCK button displays the Genlock menu. This menu lets you
select the genlock source, set the timing offset, and set the instrument actions when
lock is lost. Use the up (
S) or down (T) arrow button to scroll through the menu.

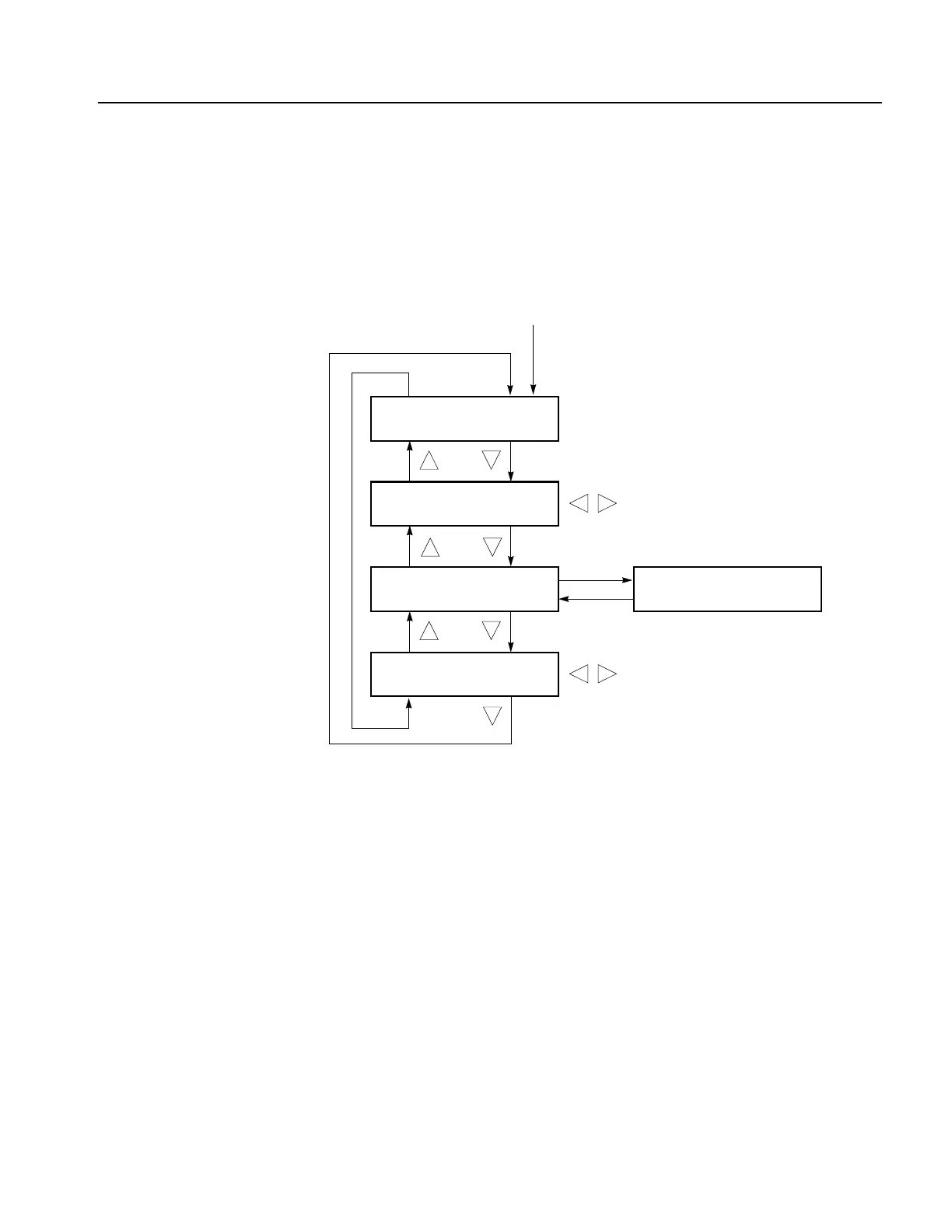

Figure 3-15 shows the Genlock menu diagram.
Figure 3-15: Genlock menu diagram
GENLOCK STATUS
Displays the genlock source and status. The possible messages for the status are:
Internal, Locked, Loss of Lock, and No Signal.
GENLOCK SOURCE
Selects the signal source to genlock. Use the left (W) or right (X) arrow button to
select the genlock source. The choices are:
Internal. Uses the internal reference signal.
525 SYNC. Sync locks to an NTSC black burst signal applied to the REF connector.
NTSC Burst. Burst locks to an NTSC black burst signal applied to the REF
connector.
625 SYNC. Sync locks to a PAL black burst signal applied to the REF connector.
Press the GENLOCK button
Internal CW 1 MHz
525 SYNC CW 3.58 MHz
NTSC Burst CW 4.43 MHz
625 SYNC CW 5 MHz
PAL Burst CW 10 MHz
Internal Mode
Stay Mode
ENTER
CANCEL
To Genlock timing submenu
(page 3-25)
GENLOCK STATUS
Internal
GENLOCK SOURCE
■ Internal ↵
GENLOCK TIMING
LOCK LOSS ACTION
■ Internal Mode ↵
To Next Page
