SPG600 & SPG300 Sync Pulse Generators User Manual 3-17
EDH. Enables or disables the insertion of the EDH (Error Detection and Handling)
information on the serial digital video signals. Use the left (
W) or right (X) arrow
button to select between Disable and Enable. Press the ENTER button to confirm
the selection.
Audio Menu
Pressing the AUDIO button displays the Audio menu. This menu lets you set the
parameters of the AES/EBU audio and embedded audio in the serial digital signal.
Use the up (
S) or down (T) arrow button to scroll through the menu. Figure 3-11
shows the Audio menu diagram.

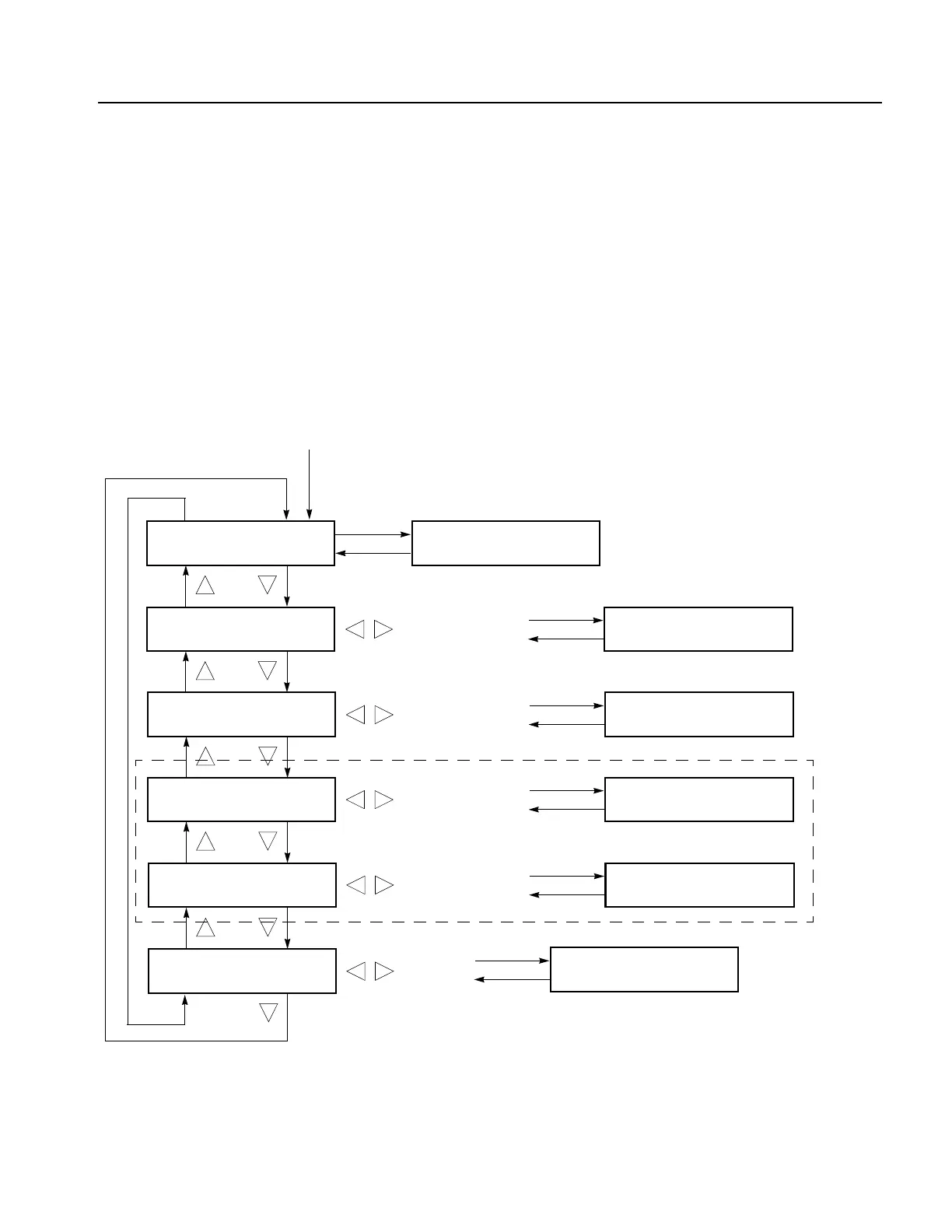

Figure 3-11: Audio menu diagram
Press the AUDIO button
ENTER
CANCEL
To Embedded submenu
(page 3-20)
EMBEDDED (STD/BLK)
Group 1
AES/EBU
ENTER
CANCEL
To AES/EBU submenu
(page 3-19)
Group 1 Group 3
Group 2 Group 4
ENTER
CANCEL
To Embedded submenu
(page 3-20)
EMBEDDED (STD/TEST)
Group 1
Group 1 Group 3
Group 2 Group 4
ENTER
CANCEL
To Embedded submenu
(page 3-20)
EMBEDDED (OPT/BLK)
Group 1
Group 1 Group 3
Group 2 Group 4
ENTER
CANCEL
To Embedded submenu
(page 3-20)
EMBEDDED (OPT/TEST)
Group 1
Group 1 Group 3
Group 2 Group 4
SPG600 Option 03 only
ANALOG
Left
Left
Right
Both
ENTER
CANCEL
To Audio channel submenu
(page 3-21)
