Getting Started
Ventilation
NOTE. The oscil
loscope cools by convection. Keep two inches clear on the sides
and top of the product to allow adequate air flow.

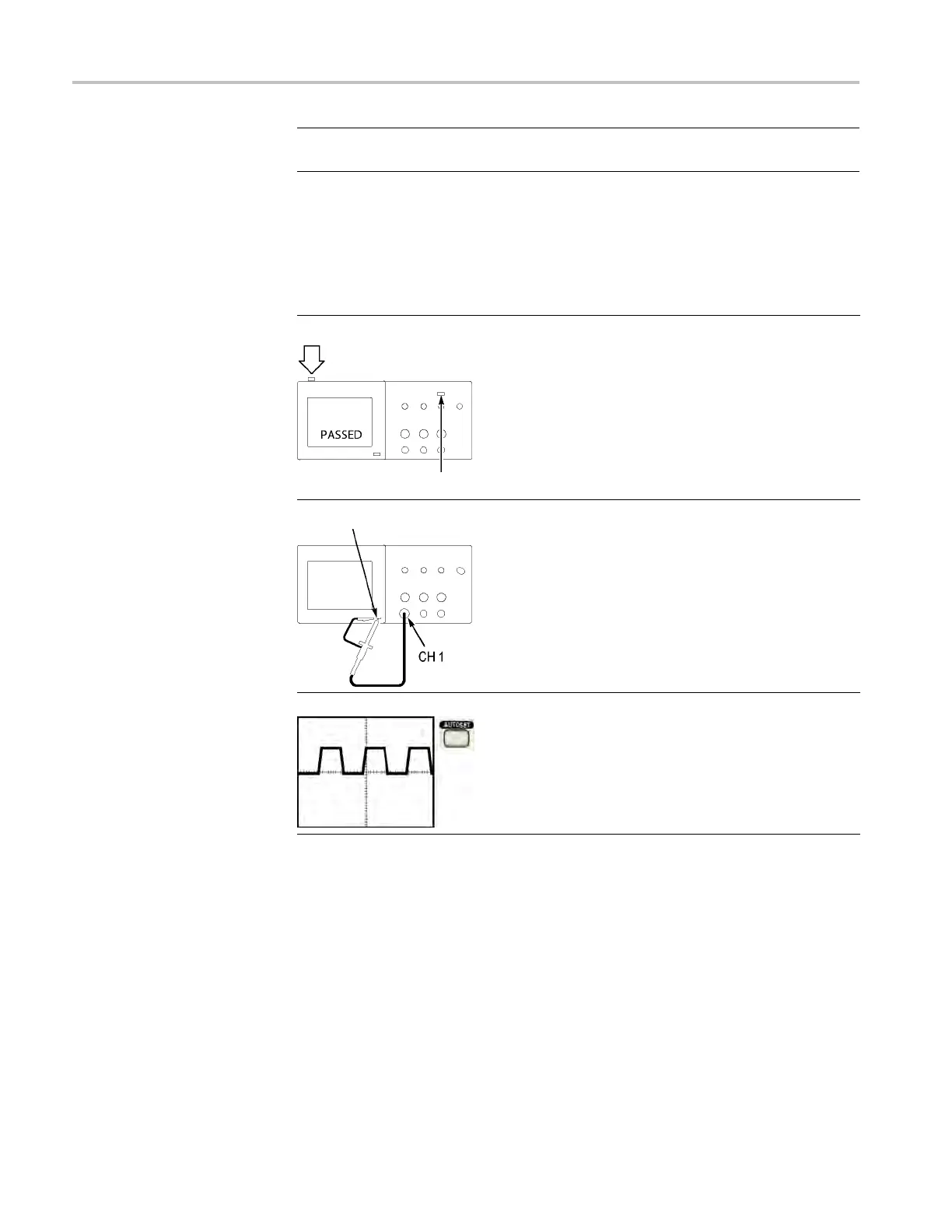

Functional Check
Perform this functional check to verify that your oscilloscope is operating
correctly.
ON/OFF button
1. Power on the oscilloscope.
Push the Default Setup button.
The default Probe option a ttenuation setting is
10X.
Default Setup button
PROBE COMP
2. Connect the TPP0101/TP0201 probe to channel
1 on the oscilloscope. To do this, align the slot
in the probe connector with the key on the CH 1
BNC, push to connect, and twist to the right to
lock the p robe in place.
Connect the probe tip and reference l ead to the
PROBE COMP terminals.
3. Push the AutoSet button. Within a few seconds,
you should see a square wave in the display of
about 5V peak-to-peak at 1 kHz.
Push the 1 channel 1 menu button on the front
panel twice to remove channel 1, push the 2
channel 2 menu button to display channel 2, and
repeat steps 2 and 3.
8 TBS1000 Series Oscilloscopes Installation and Safety Manual
