Operating Basics

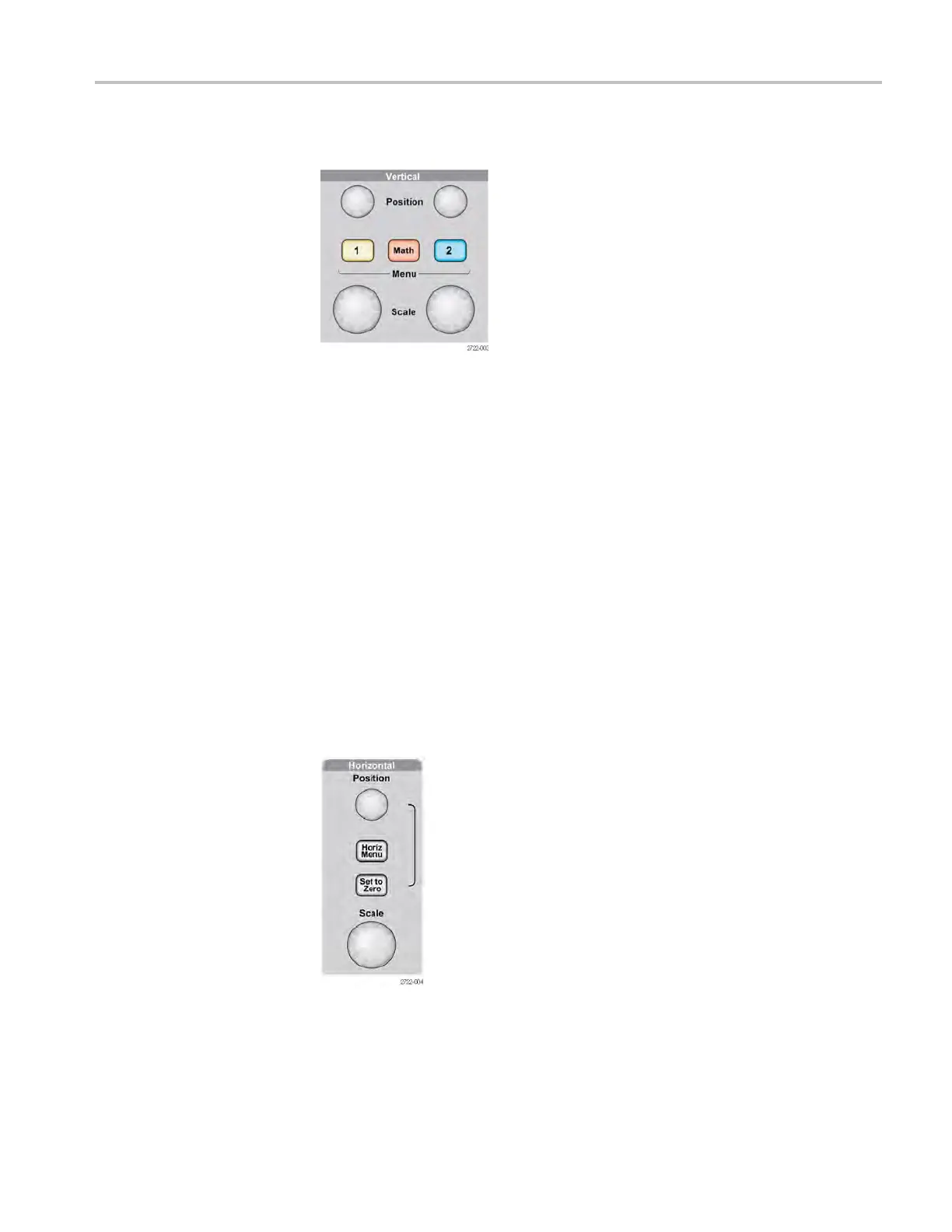

Vertical Cont
rols
Vertical Measurement Overrange (Clipping). A display of ? in the measurement
readout indicates an invalid value. This may be due to waveforms that extend
beyond the screen (overrange). Adjust the vertical scaling to ensure the readout
is valid.
Positio
n(1&2). Positions a waveform vertically.
1&2Menu. Displays the Vertical menu selections and toggles the display of the
channel waveform on and off.
Scale (1 & 2). Selects vertical scale factors.
Math. Displays waveform math operations menu and toggles the display of the
math waveform on and off.
Horizontal Controls
TBS1000 Series Oscilloscopes Installation and Safety Manual 19
