Accessories

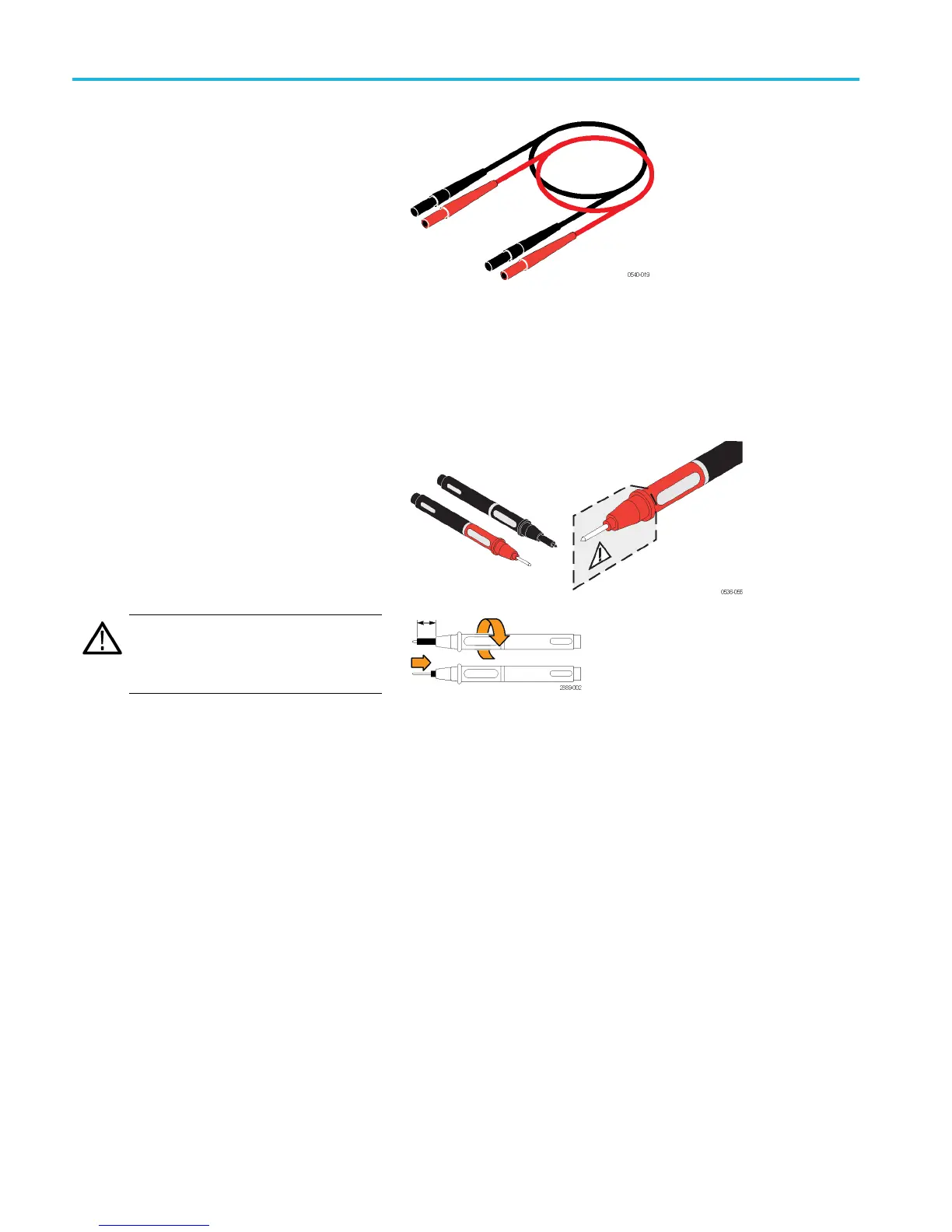

Extender Leads
These cables extend the reach of the probes
by ~67 in (1.5 m). The banana ends connect
to all of the cl
ip accessories that are included
with the probes.
Maximum ratings:
2300 V CAT I *
1000 V CAT III
* See Specifications for the Over-Voltage
Transient (O
VT) rating for the probe that you
are using.
One pair of extender leads are included with
the probes.
Reorder Tektronix part number:
196-3523-xx (one pair)
Handheld Probes (TP175-FL)
These prob
es plug onto the banana input
leads and extender leads. The tips are
threaded to accept tip accessories.
The insul
ator sheath at the probe tip extends
and retracts into CAT III and CAT IV-rated
spacings. Twist the probe body past the
detent a
t each end of the twist to lock the
probe into the CAT setting.
WARNING. Always verify that the probe
body is l
ocked into position before taking
measurements. Do not use in the unlocked
neutral position.
Maximum ratings:
1000 V
CAT II
1000 V CAT III
10 A
One p
air of handheld probes are included
with the probes.
Reorder Tektronix part number:
TP17
5-FL (one pair)
11 THDP0100/0200 & TMDP0200 High Voltage Differential Probes Instruction M anual
