Accessories
Pogo Pin Tip Adapters & Tips

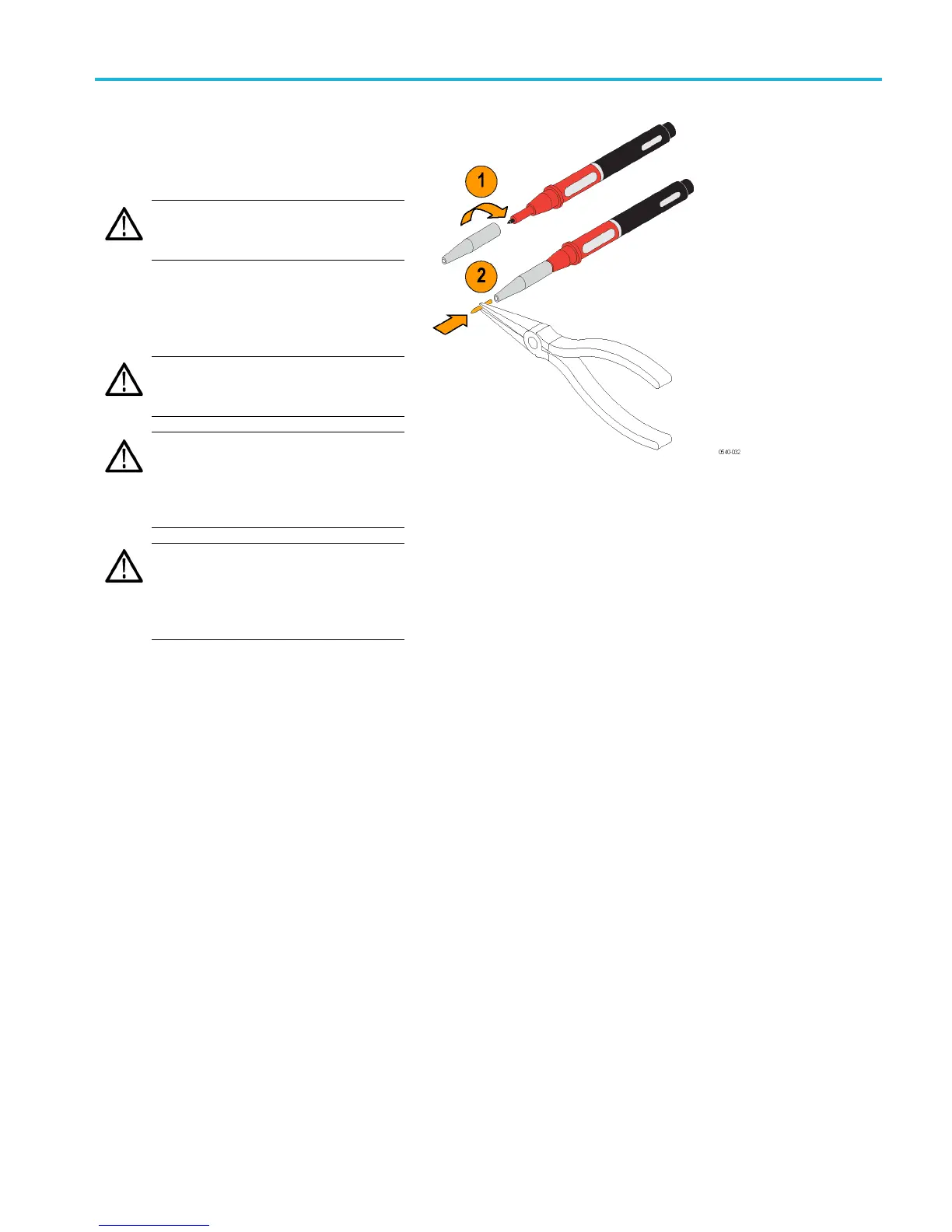

These insulated adapters hold pogo pins
and screw on to
the threaded tips of the
TP175-FL handheld probes.
WARNING. To prevent electrical shock,
tighten the p
ogo pin tip adapter completely
to the TP175-FL probe.
Two pairs of pogo pin types are included
with the adapters; one pair have sharp,
cone points
and the other pair have serrated
edges for embedding in soft conductors.
WARNING. The pogo pins have very sharp
points. To
prevent injury, handle the pins
carefully when you install and remove them.
WARNING. To prevent risk of arc flash,
ensure th
at the pogo pin is completely
inserted into the adapter. Verify that the
exposed metal portion of the tip is 19 mm
(0.75 in
) or l ess.
WARNING. The probe input rating is
derated to 150 V CAT II, 1 mA, when used
with th
e THDP and TMDP series probes. Do
not use this pogo pin adapter to measure
voltages that exceed this rating.
Maxim
um ratings:
150 V CAT II
1mA
Reor
der Tektronix part number:
020-3107-xx (includes 2 Tip Adapters, 2
Cone-Tip Pogo Pins, & 2 Serrated-Tip Pogo
Pins
)
THDP0100/0200 & TMDP 0200 High Voltage Differential P robes Instruction Manual 12
