Accessories

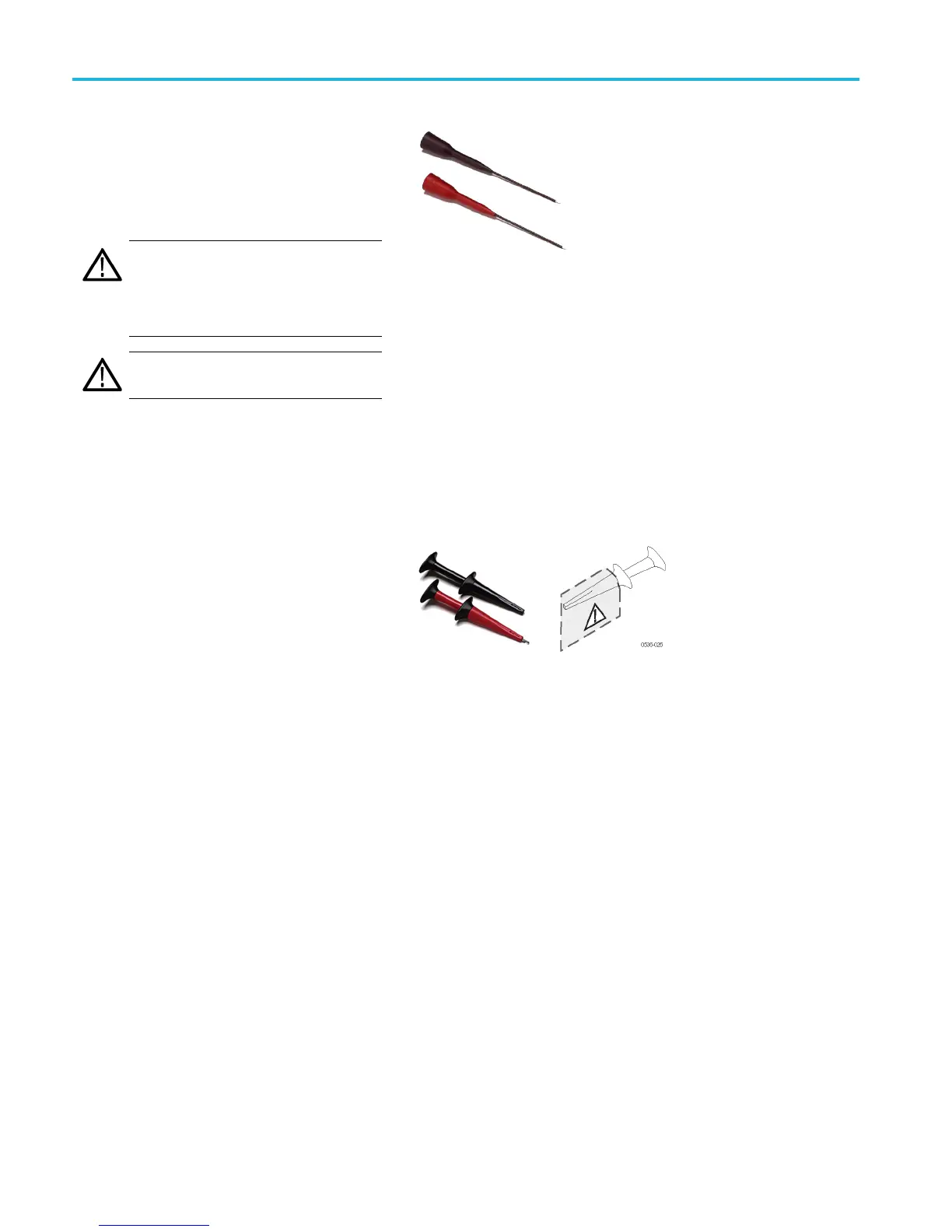

Extended Test P
robe Adapters
These adapters screw on to the threaded
tips of the handheld probes.
Use these adap
ters to reach into dense
circuitry. The sharp tips can contact small
component leads and circuit board features.
WARNING. The
probe input rating is
derated to 150V CAT II, 1 mA, when used
with the THDP and TMDP series probes.
Do not use th
is extended probe adapter to
measure voltages that exceed this rating.
WARNING. The tip on this adapter is very
sharp. To p
revent injury, d o not touch the tip.
Maximum ratings:
300 V CAT II
3A
Reorder Tektronix part number:
012-1724-xx (one pair)
Hook Clips (AC280-FL)
Plug the probe te
st leads into the banana
plug connectors. Squeeze the grips to
expose the hook clip and then clasp it around
the circuit tes
t point.
Maximum ratings:
1000 V CAT III
3A
One pair of hook clips are included with the
probes.
Reorder Tekt
ronix part number:
AC280-FL (one pair)
13 THDP0100/0200 & TMDP0200 High Voltage Differential Probes Instruction Manual
