Operating Basic
s
Measurement Examples
Example 1 . Consider a case where you need to measure two sinus oidal waveforms that are 180° out of phase with each
other, each with an amplitude of 1000 V
pk
with no DC offset (centered at 0 V). (See Figure 3.)

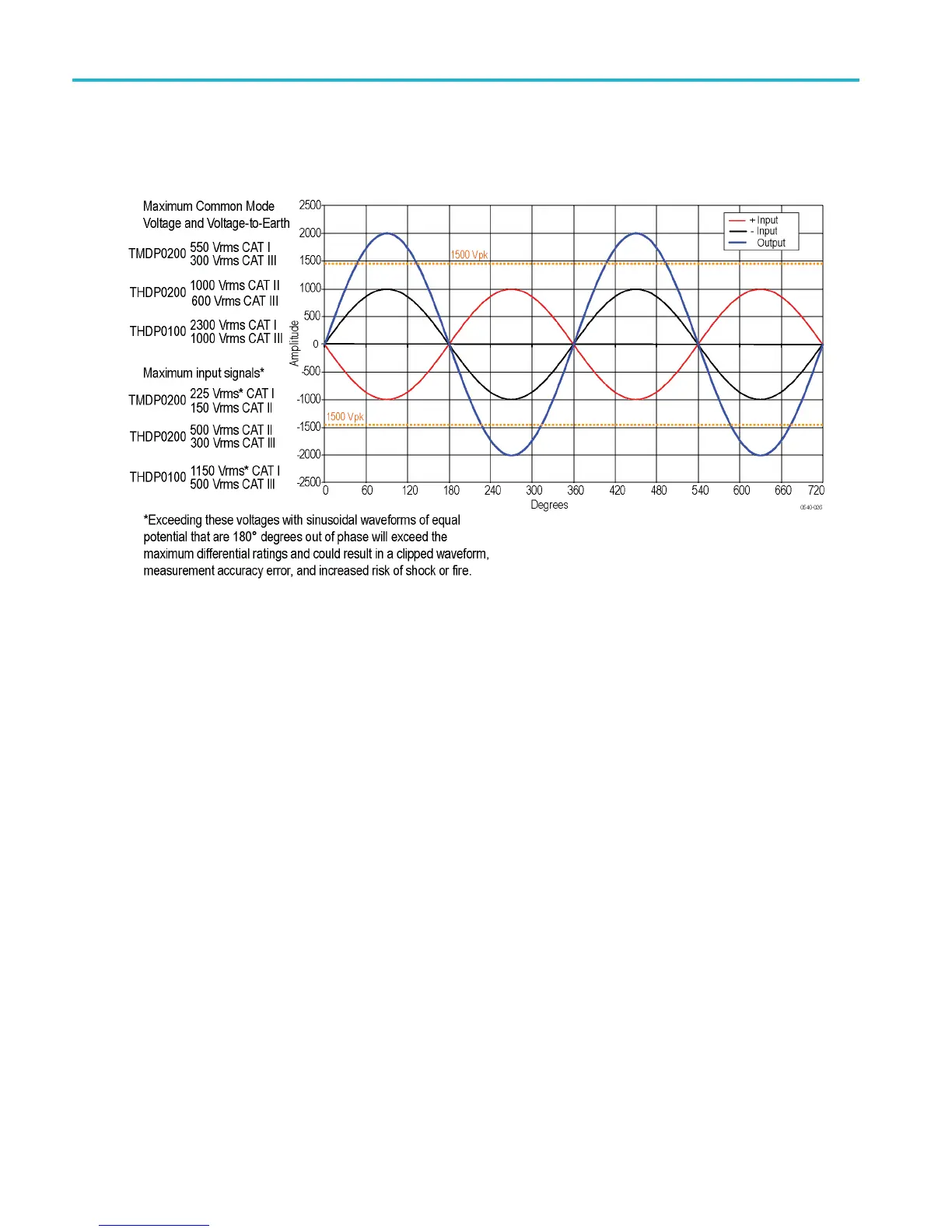

Figure 3: Measuring two equal-amplitude waveforms that are 180 degrees out of phase
If both waveforms are at the same voltage potential, then th e differential measurement would be 2 times the individual
signal inputs (in this example, 2000 V
pk
). Looking at the maximum measurable differential voltage specifications for the
THDP/T
MDP series probes, the THDP0100 probe is capable of measuring this s ignal. (See Table 6 on page 27.) For
reference, the rms values of the Common-Mode Voltage and Voltage-to-Earth ratings and Maximum Input S ignals for each
probe model are shown in the figure above.
23 THDP0100/0200 & TMDP0200 High Voltage Differential Probes Instruction Manual
