Adjustments

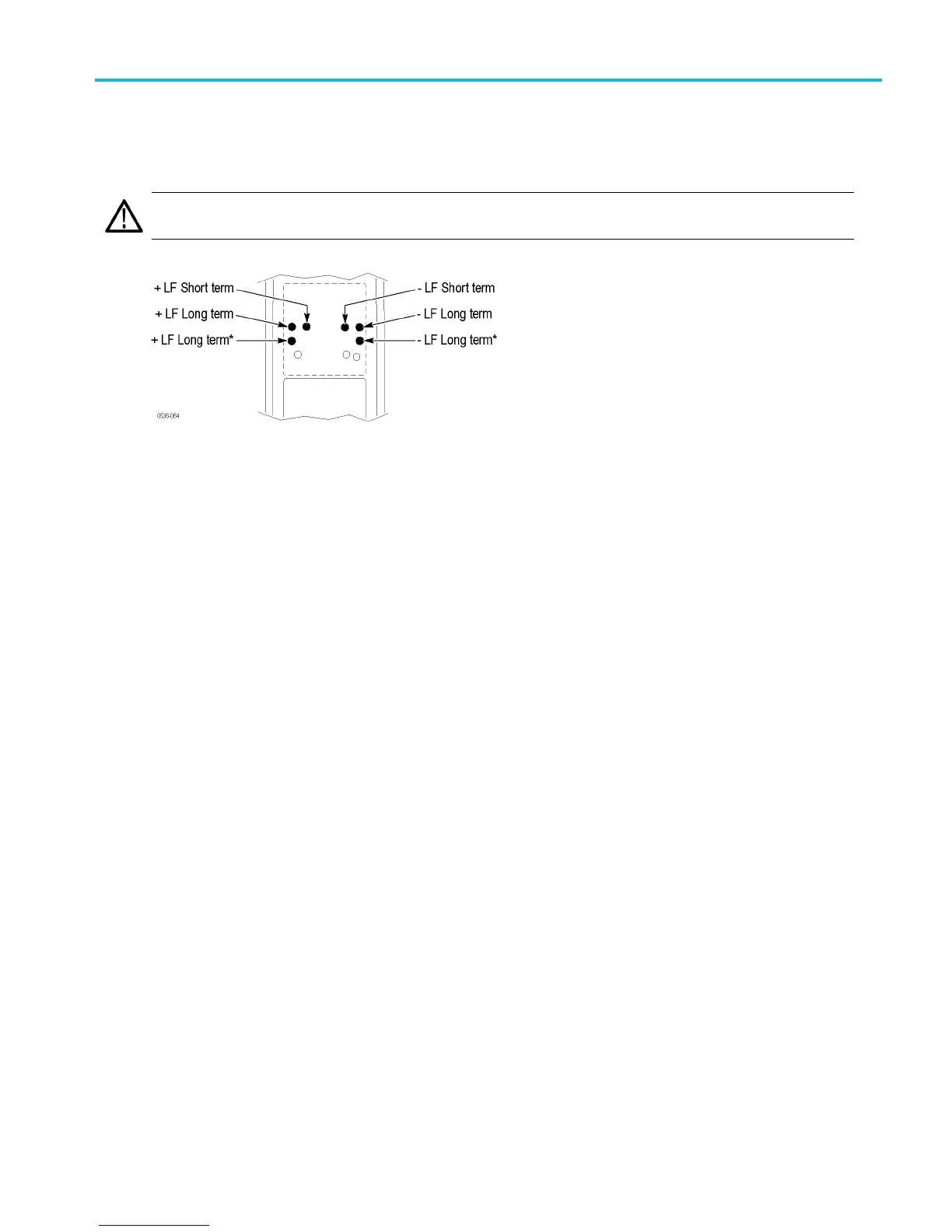

8. Make the adjustments in the following order: long-term +LF, long-term +LF*, short-term +LF. (The long-term +LF*
adjustment is n
ot used in the TMDP0200 probe.) Repeat this sequence as necessary to optimize the square-wave
response.
WARNING. Use only an insulated tool to make the adjustment. Failure to do so presents a potential shock hazard.
9. Disable the generator output.
10. Reverse the probe input leads to the generator.
11. Invert the signal and trigger slope on the oscilloscope to display the rising edge of the signal. A djust the trigger level
if necessary.
12. Enable the generator output and make the adjustments in the following order: long-term –LF, long-term –LF*, short-term
–LF. (The long-t
erm –LF* adjustment is not used in the TMDP0200 probe.) Repeat this sequence as necessary to
optimize the square-wave response.
THDP0100/0200 & TMDP 0200 High Voltage Differential P robes Instruction Manual 50
