Removal and Installation Procedures
6-26
TLA5000 Series Service Manual

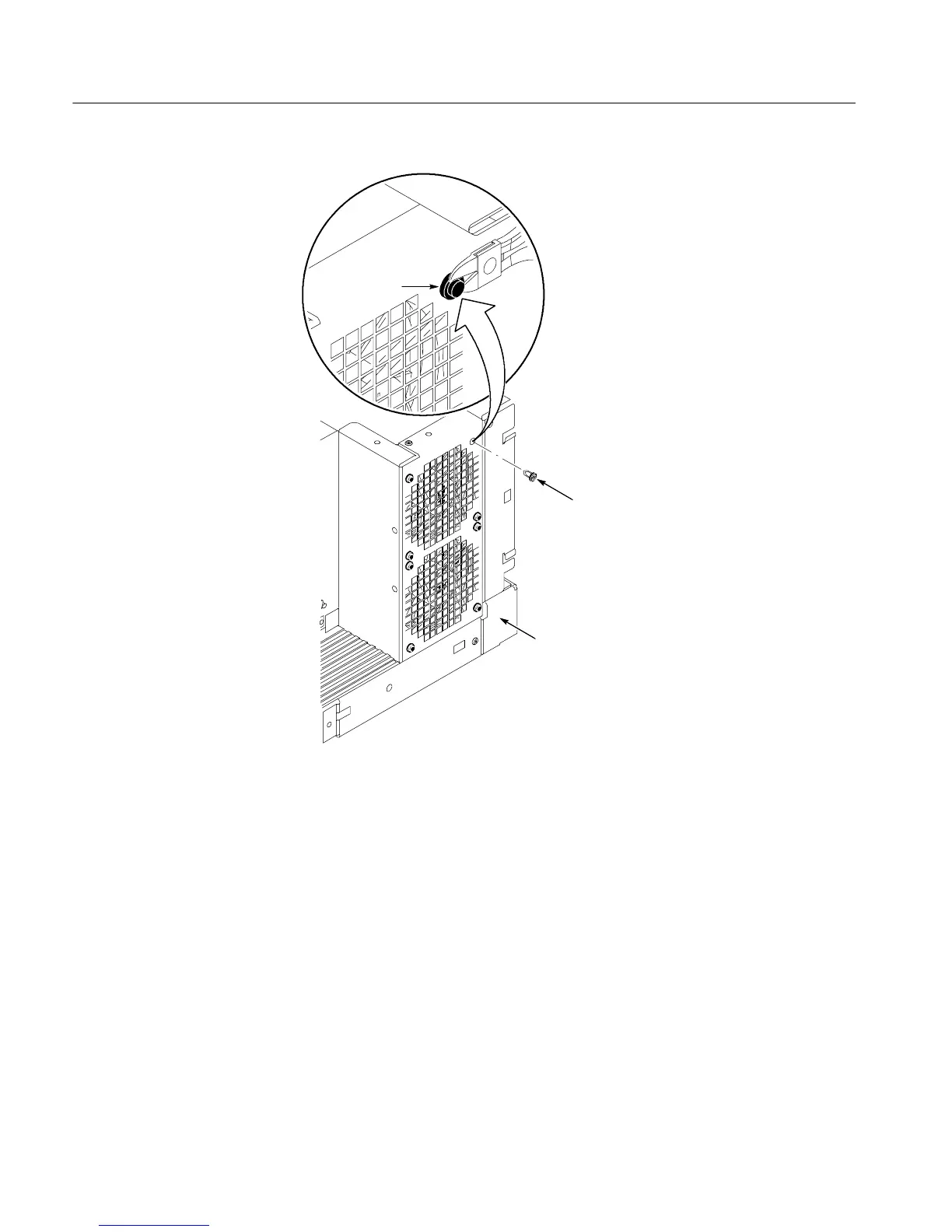

Plastic fasteners
Left side of the instrument
Plastic fastener
Figure 6- 13: Fan f astener removal
Power Supply
1. Remove the top and right trim and the top-right cover.
2. Remove the floppy disk drive assembly.
3. Set the instrument so its bottom is down on the work surface and the back is
facing you.
4. Locate the power supply in the locator diagram in Figure 6--5 on page 6--14.
5. Refer to Figure 6--14, on page 6--27 and remove the four T-15 Torx-drive
screws that secure the power supply to the back of the chassis.
