Getting Started
To remove the ba
ttery packs, follow these steps:
1. Press the battery compartment door latch on the right side panel and open the
battery compa
rtment.
2. Grab the strap and lift up.
3. Push the spring clip towards the outside of the battery pack and pull the strap
to remove the battery pack.
4. Close the battery compartment door.
Charging Battery Packs
You can charge the battery packs in an oscilloscope or with the TPSCHG external
battery charger. (See page 88, Charging TPSBAT Battery Packs.)
Power Cord
Use only power cords designed for the AC adapter for the oscilloscope or external
charger. The AC adapter for the oscilloscope and external charger requires 90 to
264 VAC
RMS
, 45 to 66 Hz. Optional power cords are available. (See Table 14
on page 140.)
Versatile Hanger
Use the versatile hanger to securely suspend the oscilloscope when you cannot
placeitonastablesurface,suchasonabenchtop.

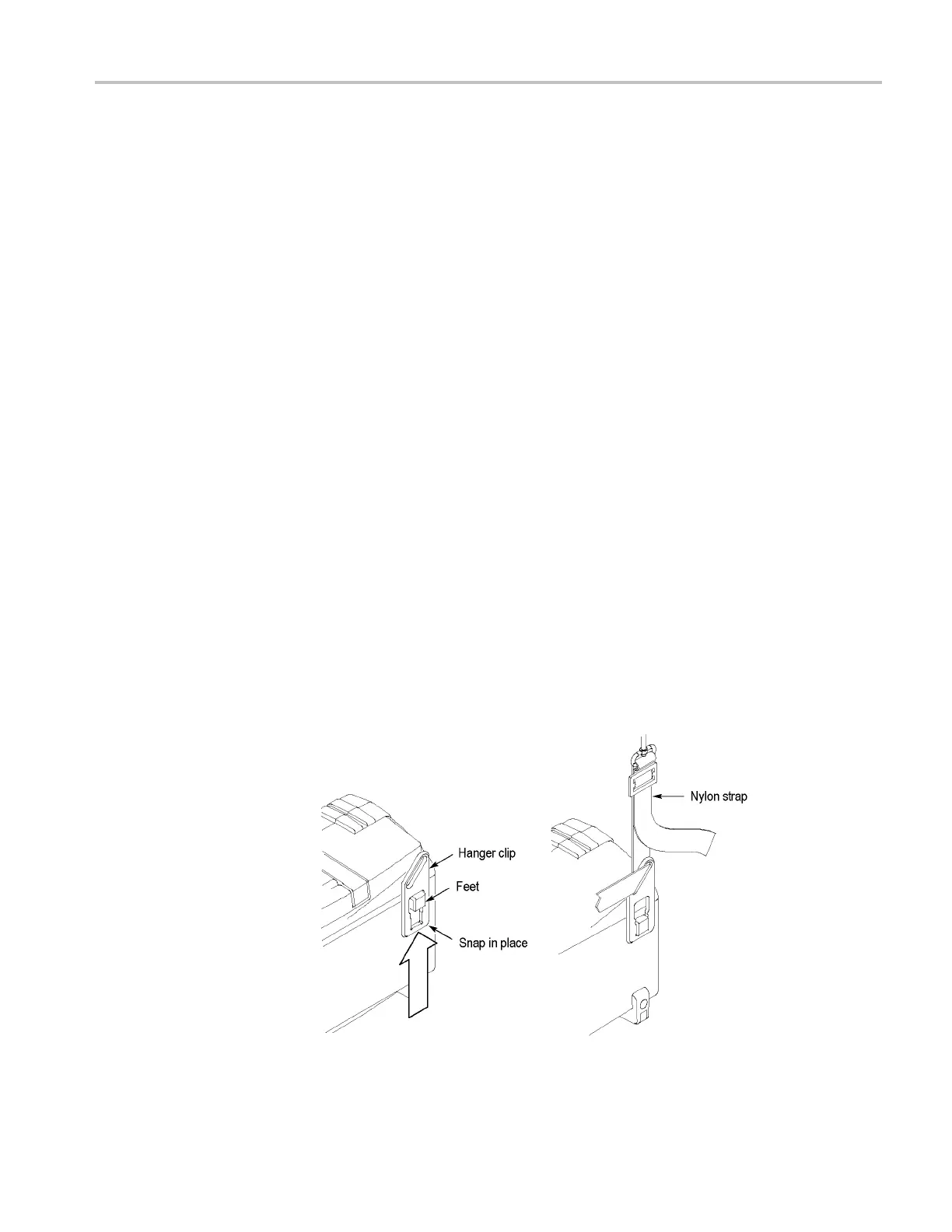

To attach the hanger, follow these steps:
1. Position a hanger clip over one of the feet on the rear case so the c lip is flat
against the case. Orient the slot at the top of the clip.
2. Push the clip up towards the top of the case to snap it in place.
3. Repeat steps 1 and 2 for the other clip.
TPS2000B Series Digital Oscilloscope User Manual 7
