Monitoring Audi
o

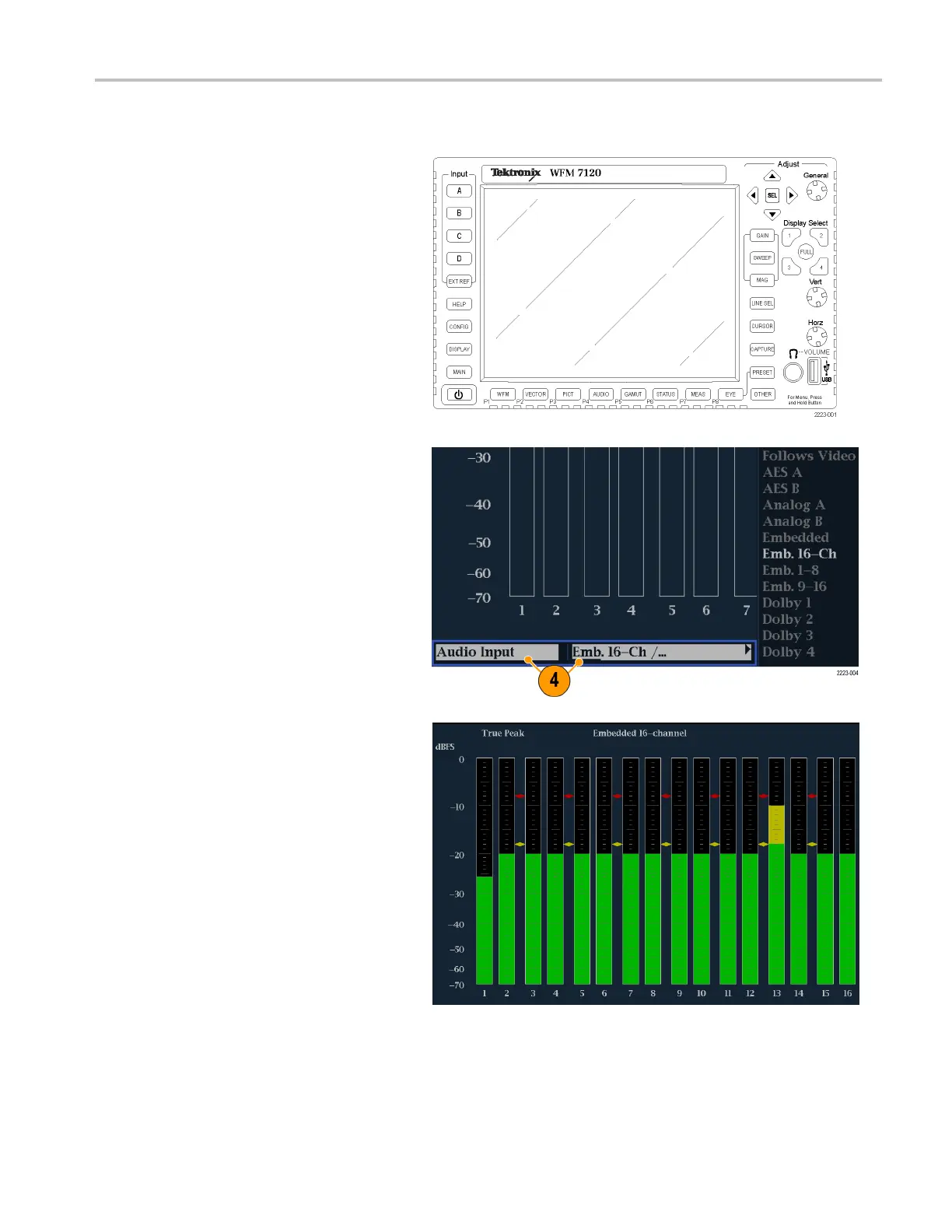

Selecting Audio Input for Embedded 16-Channel Audio
1. Select a tile.
2. Press and hold
the Audio button to open
the Audio display in a tile and pop up the
Audio menu.
3. Use the arrow keys and SEL button to
make selections in the steps that follow.
4. Select Audio Input and then select the
Emb. 16-Ch option as shown.
The 16-Channel audio bars display is as
shown.
Waveform Monitors Quick Start User Manual 101
