Tektronix WFM6120 User Manual

Monitoring Clos
ed Captioning (CC), Teletext, AFD, and Safe Area Compliance

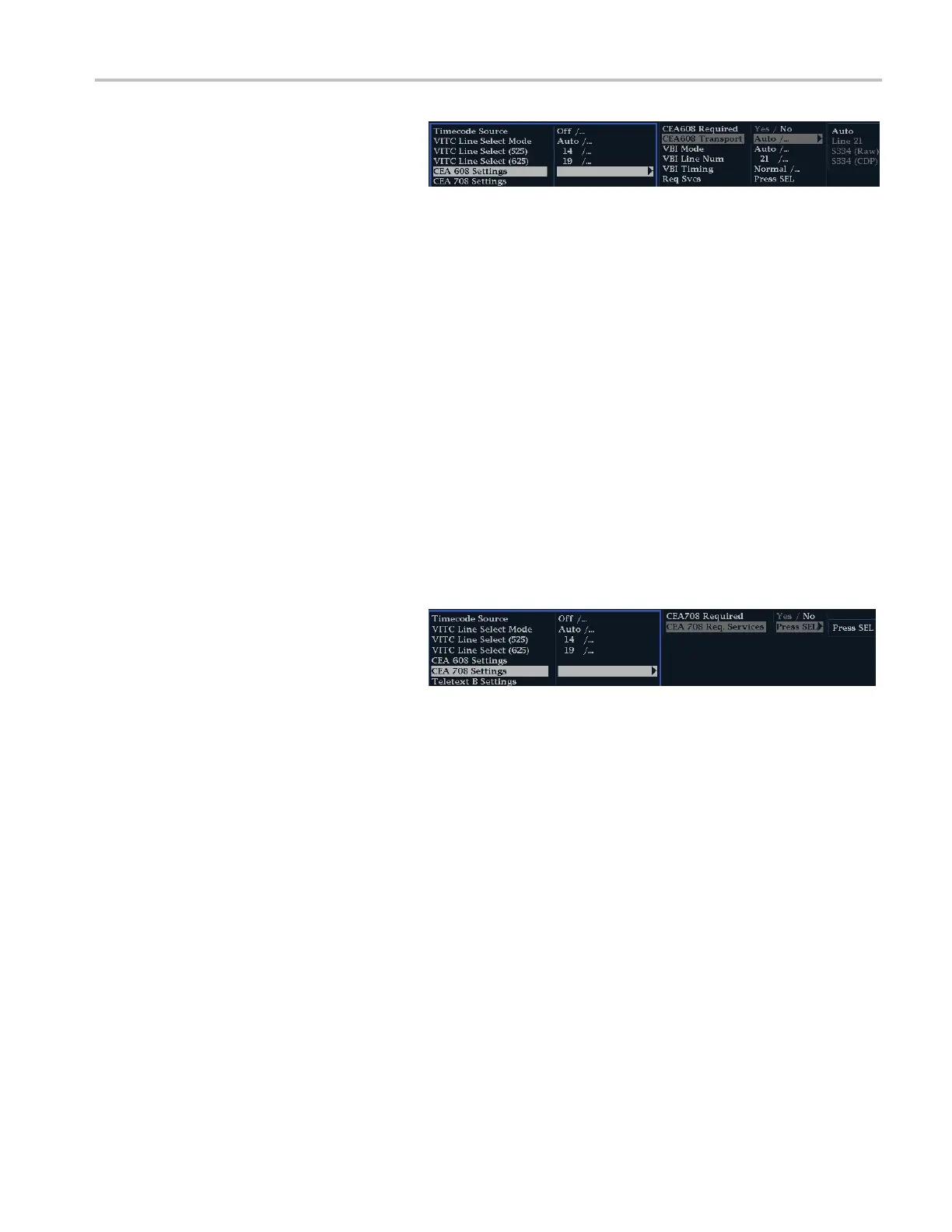

CEA 608 Settings
5. Select CEA608 Settings from the Aux
Data Settings submenu.
6. Select CEA608 Required and then
select Yes or
No, depending on whether
or not you want to monitor for required
settings.
7. Select CEA608 Transport, and then
select from
Auto, Line 21, S334 (RAW),
or S334 (CDP). If you select Auto,the
instrument will search for any available
transport
.
8. Select VBI
Mode, and then select Auto
or Manual. If you select Manual, set VBI
Line Num using the General knob.
9. Select VB I Timing and then select
Normal, E
arly, or Late.
10. If requir
ed services is set to Yes, select
Req Services and press the SEL
button. This will bring up a d ialog box
that all
ows you to select CC and Text
required channels.
CEA 708 Settings
11. Select CEA708 Settings from the Aux
Data Settings submenu.
12. Select CEA708 Required and then
selec
t Yes or No, depending on whether
or not you want to monitor for required
settings.
13. If required services is set to Yes, select
Req S
ervices and press the SEL
button. This will bring up a d ialog box
that allows you to select CC and Text
requ
ired channels.
Waveform Monitors Quick Start User Manual 117
