Attenuator range (Fig. 3/4 pos. 6)
Slope selection (Fig. 3/4 pos. 7)
16-31 dB Flat
0-15 dB Middle sloped
High sloped
OLC mode jumper (Fig. 3/4 pos. 8 )
External control jumper (Fig. 3/4 pos. 11)
OLC ON
External control ON
OLC OFF External control OFF

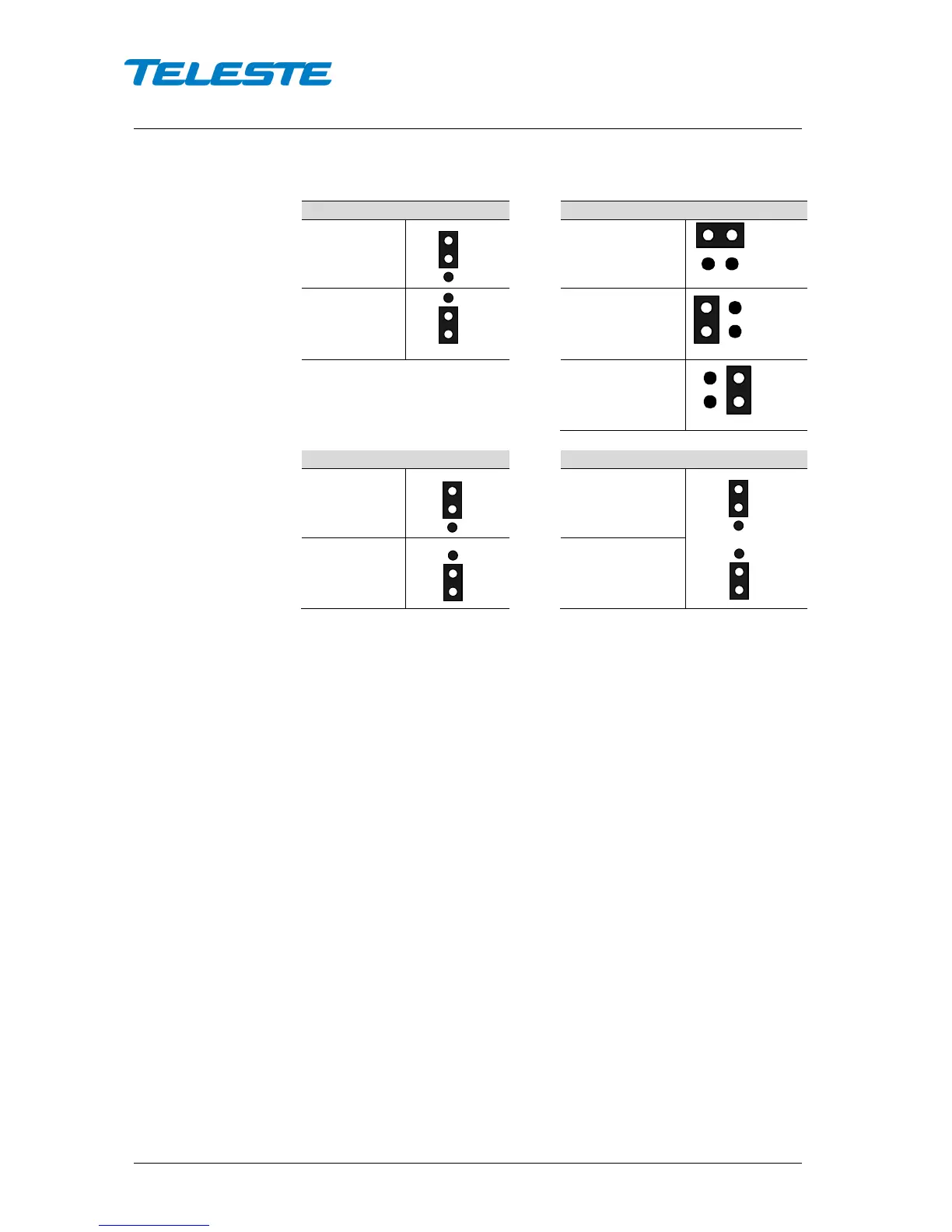

Figure 5. Jumper configurations
