TELEVAC CC-10 - 5.2 Combined Output

CC-10
INSTRUMENT MANUAL
Phone:(215) 947-2500 fax:(215) 947-7464 e-mail:sales@televac.com web site:www.televac.com
CC-10 MANUAL REV D
Page 22 of 40
Y
TELEVA

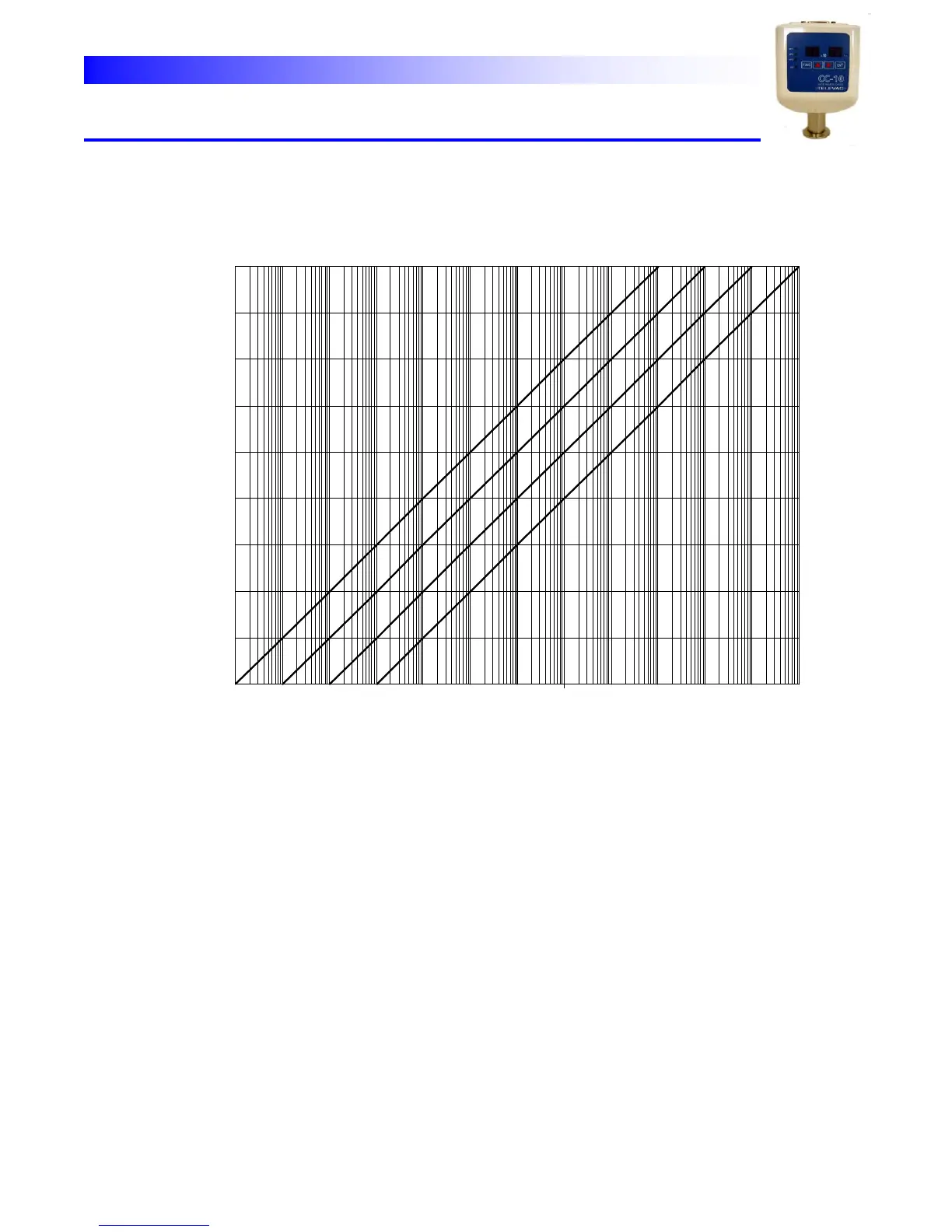

Analog Output [1V/decade]
V=LogP+10 V=LogP+9 V=LogP+8 V=LogP+7
0 1
9
8
7
6
5
4
3
2
1
1.0E-09 1.0E-08 1.0E-07 1.0E-06 1.0E-05 1.0E-04 1.0E-03 1.0E-02 1.0E-01 1.0E+00 1.0E+01 1.0E+02 1.0E+03
Pressure [Torr]
Analog output voltage V is expressed as;
V=logP + (10-n) where P is pressure (Torr) and n is full scale pressure value (n= 0, 1, 2 or 3)
