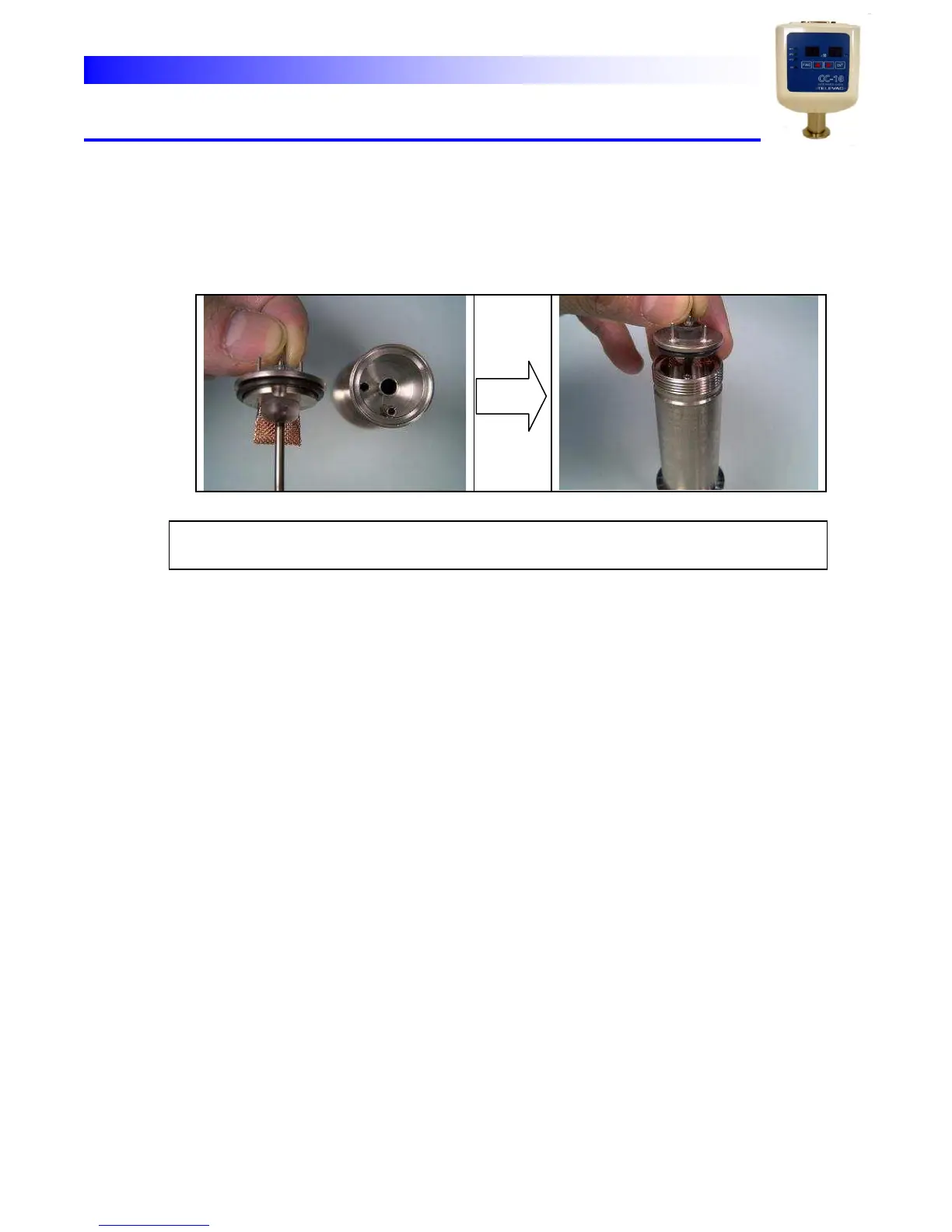

7.5 Se nso r Ass e m b l y
1. Install the magnet.
2. Insert the anode assembly fitting the key into the anti-rotation hole.
3. Install the spacer, the washer and the nut in this order.
4. Tighten the nut securely so that the O-ring has an enough seal force.
Notes: Perform the zero and the atmosphere adjustment when new anode assembly is
installed.
