EN
11

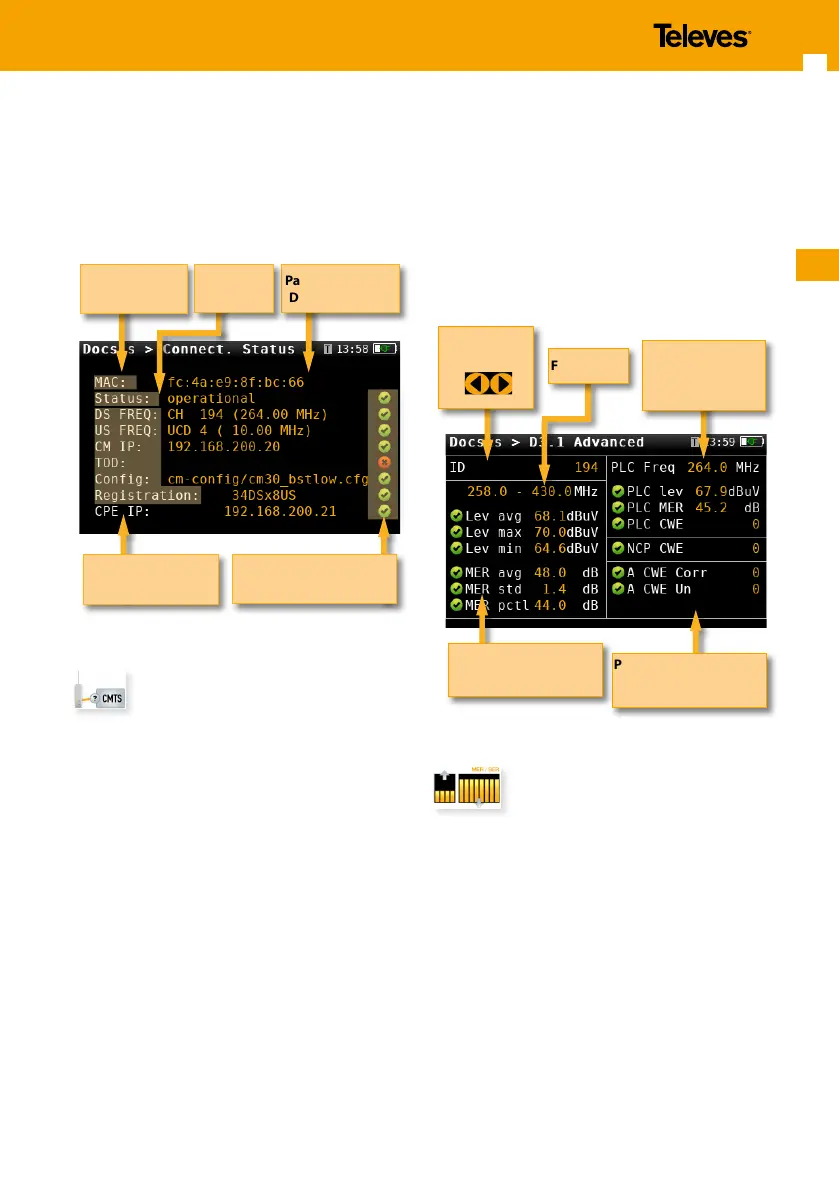

1.1.1. Main window
Below is a capture of a Connection window with a
brief explanation of its features.
Steps that the meter
must be completing
Indicators that show the
state of the processes
Parameters of the
DOCSIS network
MAC of the
DOCSIS modem
Connection
Status
1.2. Docsis3.1 Advanced
This function shows all the measurements of the
OFDM Docsis channel.
In addition to the level and MER measurements,
all the PLC (physical link channel) and NCP (next
codeword pointer) measurements are also shown
which are very important for the system to work
properly.
For the Level measure, the average, maximum and
minimum values of all the frequencies are shown.
For the MER measure, the average, maximum and
minimum values of all the frequencies are shown.
For the PLC, the average, maximum and minimum
values of all the frequencies are shown., the MER
and the uncorrectable codeword errors. This last
measure is also shown for NCP.
1.2.1. Main window
Below is a capture of a Docsis3.1 Advanced window
with a brief explanation of its features.
1.3. Measurements
This function shows the status of all the upstream
and downstream channels at a glance.
The internal modem of the H30D+/H30D+Adv
supports two 192 MHz OFDM downstream
channels, thirty two single-carrier QAM
downstream channels, two 96 MHz OFDM-A
upstream channels and eight single-carrier QAM
upstream channels. This function graphically
shows the status of all of these channels in a way
that clearly shows which channels comply with the
used-dened thresholds by its green, yellow, or
red colour.
A single channel can then be chosen for further
analysis. The detailed measurements of the
selected channel as well as the modulation data
Frequencies
Channel ID
Change using
Prole A measurements.
Color according to
checkmarks
List of Level and MER
measurements with
pass/fail indicators
PLC Frequency and
measurements.
Color according to
checkmarks
