1.4. Throughput test
This function measures the upstream and
downstream rates of the DOCSIS network.
The rate measurements are performed using an
FTP server that must be congured by the user
(URL, le, get/put, user, password). See section
1.56Setup.
This feature shows the IP modem within the DOCSIS
network and the maximum speed negotiated (DS/
US). When you start the speed test, the speed value
is updated at the end of the test.
1.4.1. Main window

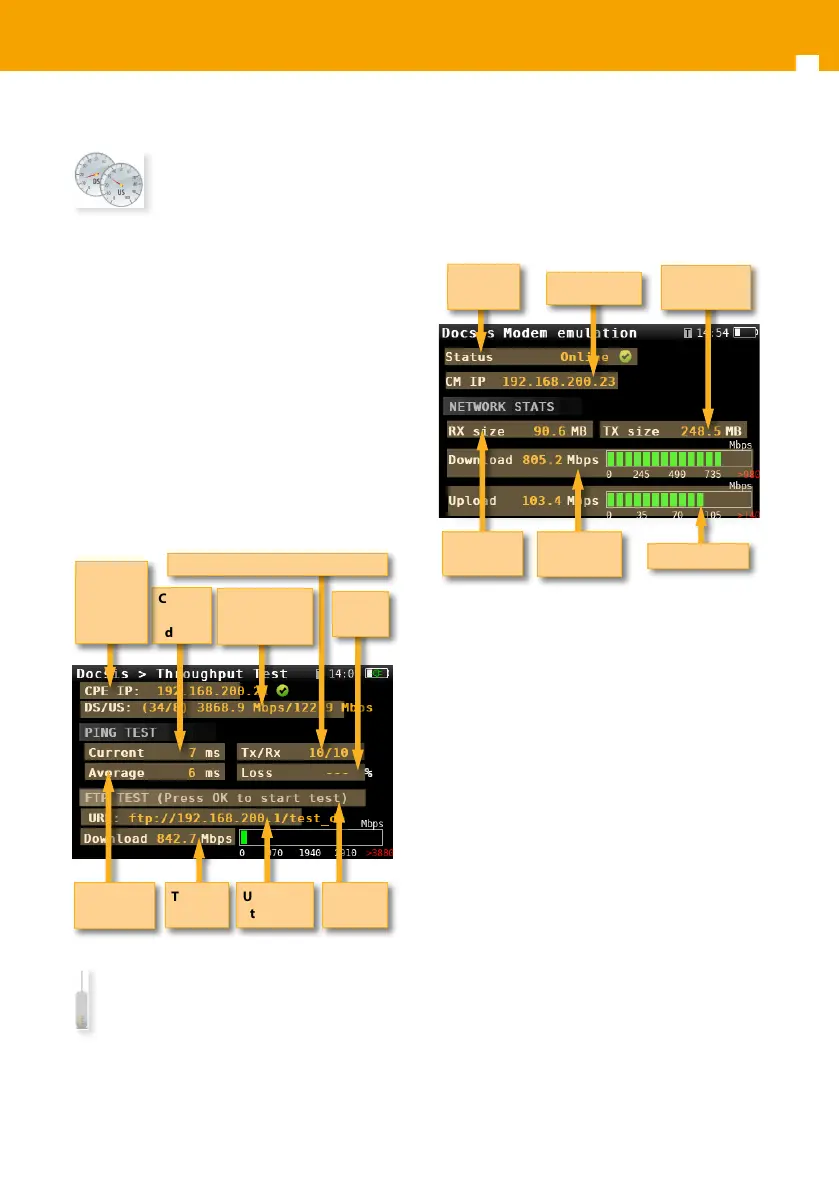

Below is a capture of a Throughput Test window
with a brief explanation of its features.
1.5. Modem Emulation
This function sets the H30D+/H30D+Adv to be
used as a DOCSIS modem. It may be used to give
to another device a connection to the DOCSIS
URL set by
the user
Transfer
status
Transfer
speed
Current
PING
delay
Average
PING delay
Transmitted and received packets
Modem IP
within the
DOCSIS
network
Maximum DS
and US speed
negotiated
Lost
packets
network via the H30D+/D+Adv’s Ethernet port.
1.5.1. Main window
Below is a capture of a Modem Emulation window
with a brief explanation of its features.
Upload speed
Download
speed
Received
data size
Modem
status
Modem IP
Transmitted
data size

Televes H30+ Specifications

General

Input Impedance	75 Ω
Power Supply	100-240 V AC, 50/60 Hz
Display	2.8-inch color LCD
Battery	Li-Ion
Connectors	F-type
Measurements	MER, BER, C/N
Battery Life	4 hours
