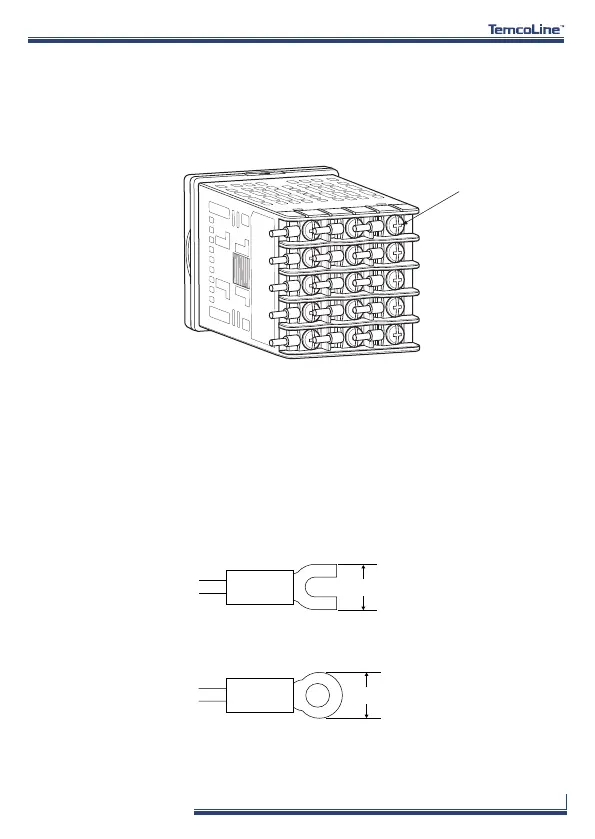

7) Terminal wiring method
(1) SCREW
① When wiring the terminal, tighten the screw with a tightening torque of
0.74 to 0.90 N.m.
(2) Cautions for terminal wiring
① Signal lines and power lines should be separately wired to avoid the effects
of noise
② Use a crimp terminal to wire the terminals.
③ Tighten the terminal screws with a tightening torque of 0.74 to 0.90 N.m.
④ Please use the following form of crimp terminal M3.5.
SCREW
Crimp terminal
Less then 7.2 mm
Less then 7.2 mm
