Concurrent Dual Band Wireless N600 Gigabit Router

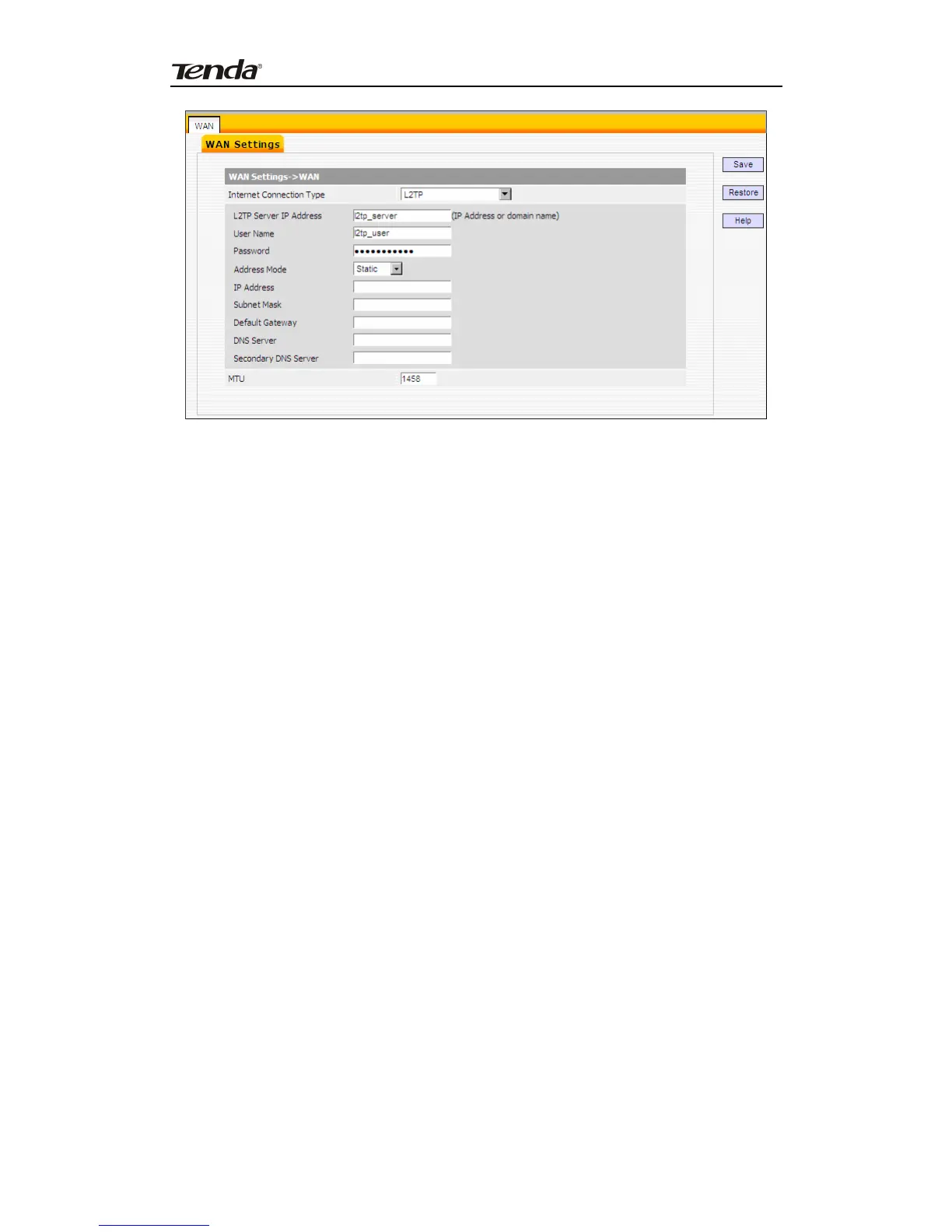

Internet connection Type: Displays a list of available Internet connection
types.
L2TP Server IP Address: Enter the IP address of a L2TP server.
Username/Password: Enter Username/Password specified by the L2TP server.
Address Mode: Select “Dynamic” if you don’t get any IP info from the L2TP
server, otherwise select “Static”.
IP address: Enter the IP address provided by your ISP. Inquire your local ISP if
you are not clear.
Subnet mask: Enter the subnet mask provided by your ISP.
Default Gateway: Enter the gateway provided by your ISP. Inquire your local
ISP if you are not clear.
DNS Server: Enter the necessary DNS address provided by your ISP.
Secondary DNS Server: Enter the other DNS address if your ISP provides you
with 2 such addresses, and it is optional.
MTU: Maximum Transmission Unit. The default value is 1458.
18
