Concurrent Dual Band Wireless N600 Gigabit Router
Chapter 4 Configurations

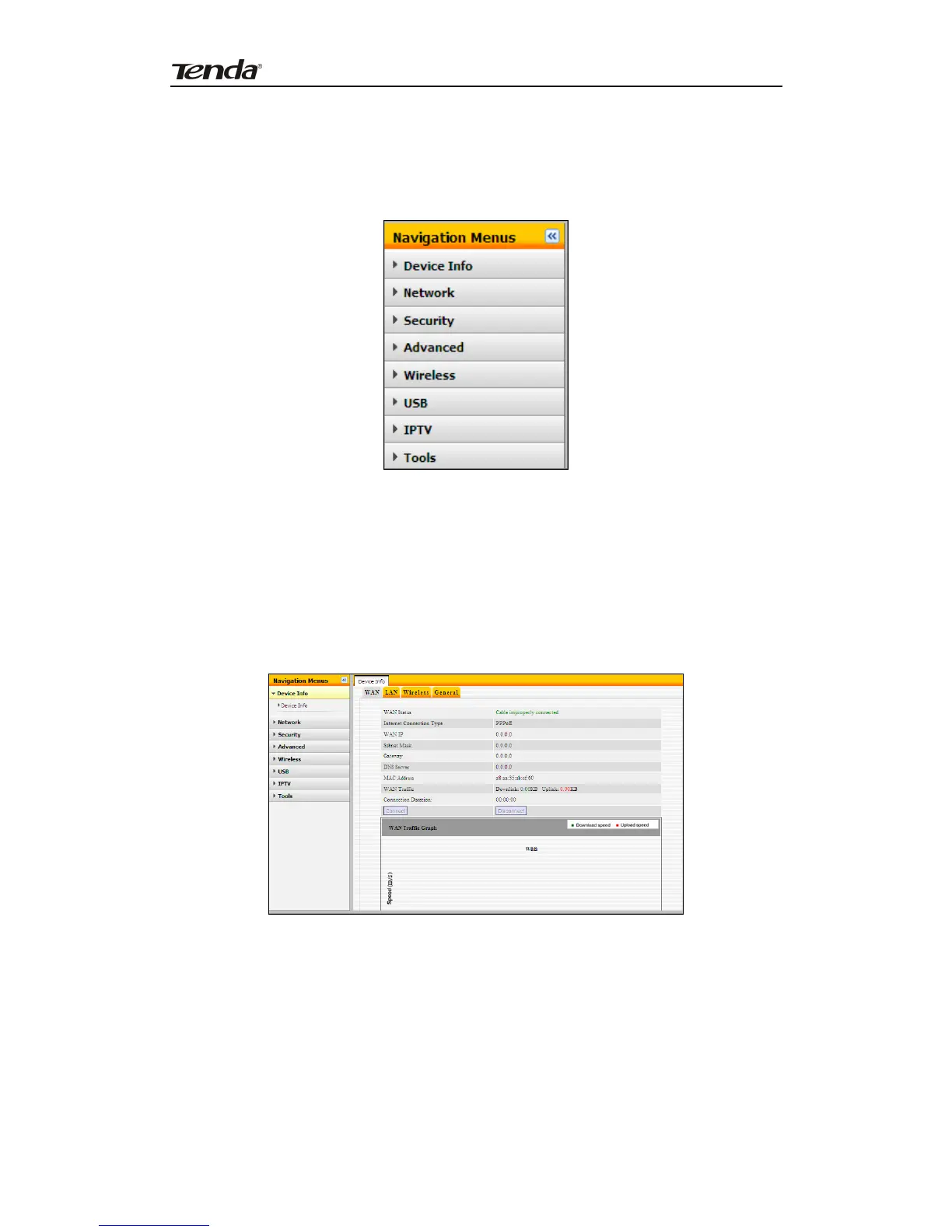

This chapter delivers a detailed presentation of router’s functionalities and
features under 8 main menus below, allowing you to manage the router with ease.
During operation, if you are not clear about a certain feature, you can simply
click the “Help” button to read all related helpful info.
4.1 Device Info
WAN
This section allows you to view the router’s WAN info listed below:
WAN Status: Displays WAN connection status: Disconnected, Connecting or
Connected.
Disconnected: Indicates that the Ethernet cable from your ISP side is / is not
correctly connected to the WAN port on the router or the router is not logically
connected to your ISP.
Connecting: Indicates that the WAN port is correctly connected and is requesting
an IP address from your ISP.
11
