Concurrent Dual Band Wireless N600 Gigabit Router

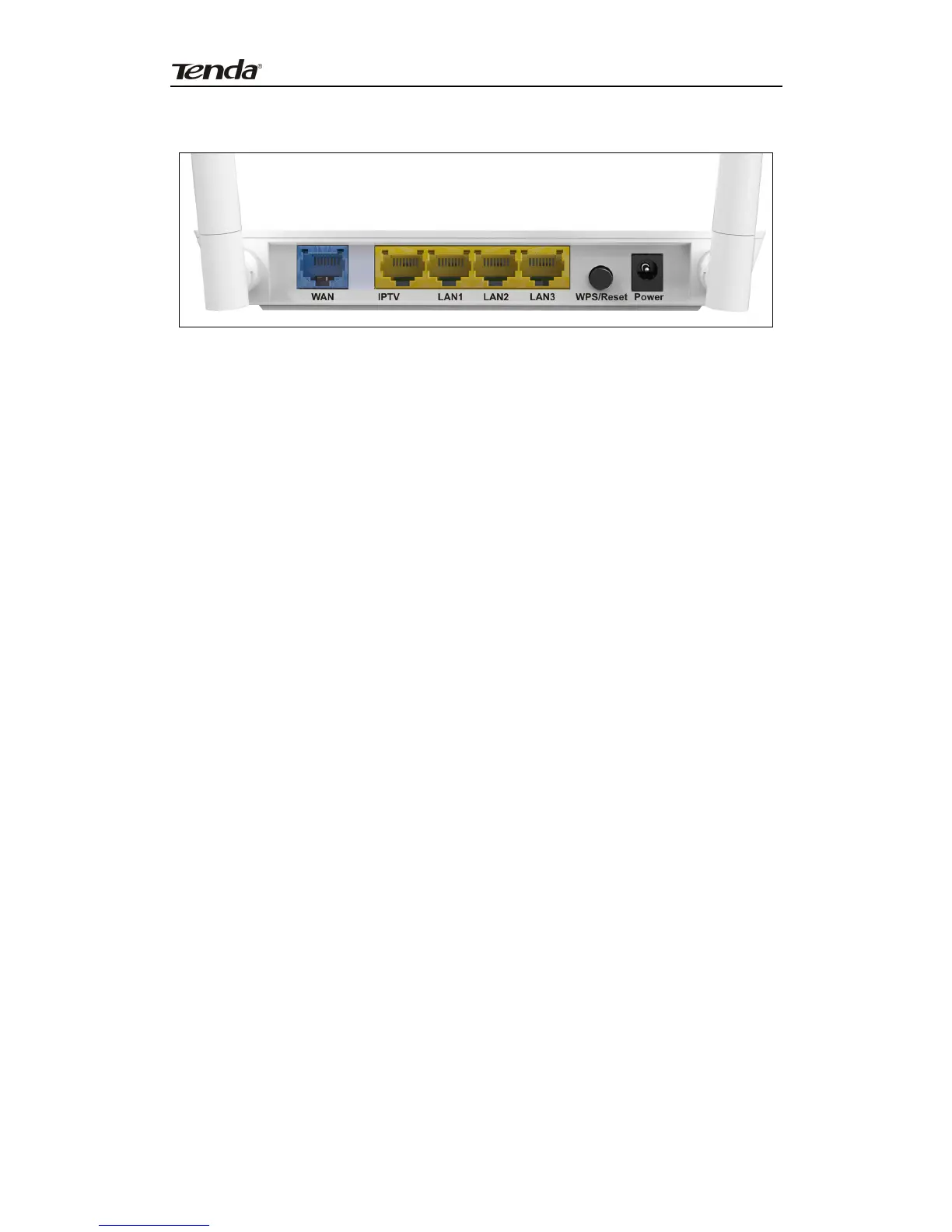

Back Panel
WAN: Internet port （ RJ-45 ）for connection to an Internet-enabled xDSL
Modem/Cable Modem or existing Ethernet.
IPTV：IPTV port for connection to a network set-top box. However such port can
function as a LAN port if IPTV STB port is not enabled.
LAN/1/2/3: 3 LAN ports （RJ-45） for connection to PC’s NIC or uplink to a hub,
switch or wireless AP.
WPS/Reset: WPS button/Reset button: Pressing it for about 1 second enables WPS
encryption with a blinking WPS LED while Pressing it for about 7 seconds restores
the device to factory defaults.
2.2 Minimum System Requirements
Installed Network Adapter
Internet Explorer 5.0 or higher
Broadband Internet Service (through xDSL/Cable Modem/Ethernet)
2.3 Hardware Installation
1. Connect one end of the included power adapter to the router and then plug
the other end into a wall outlet nearby. (Using a power adapter with a different
voltage rating than the one included with the router will cause damage to the
product.)
7
