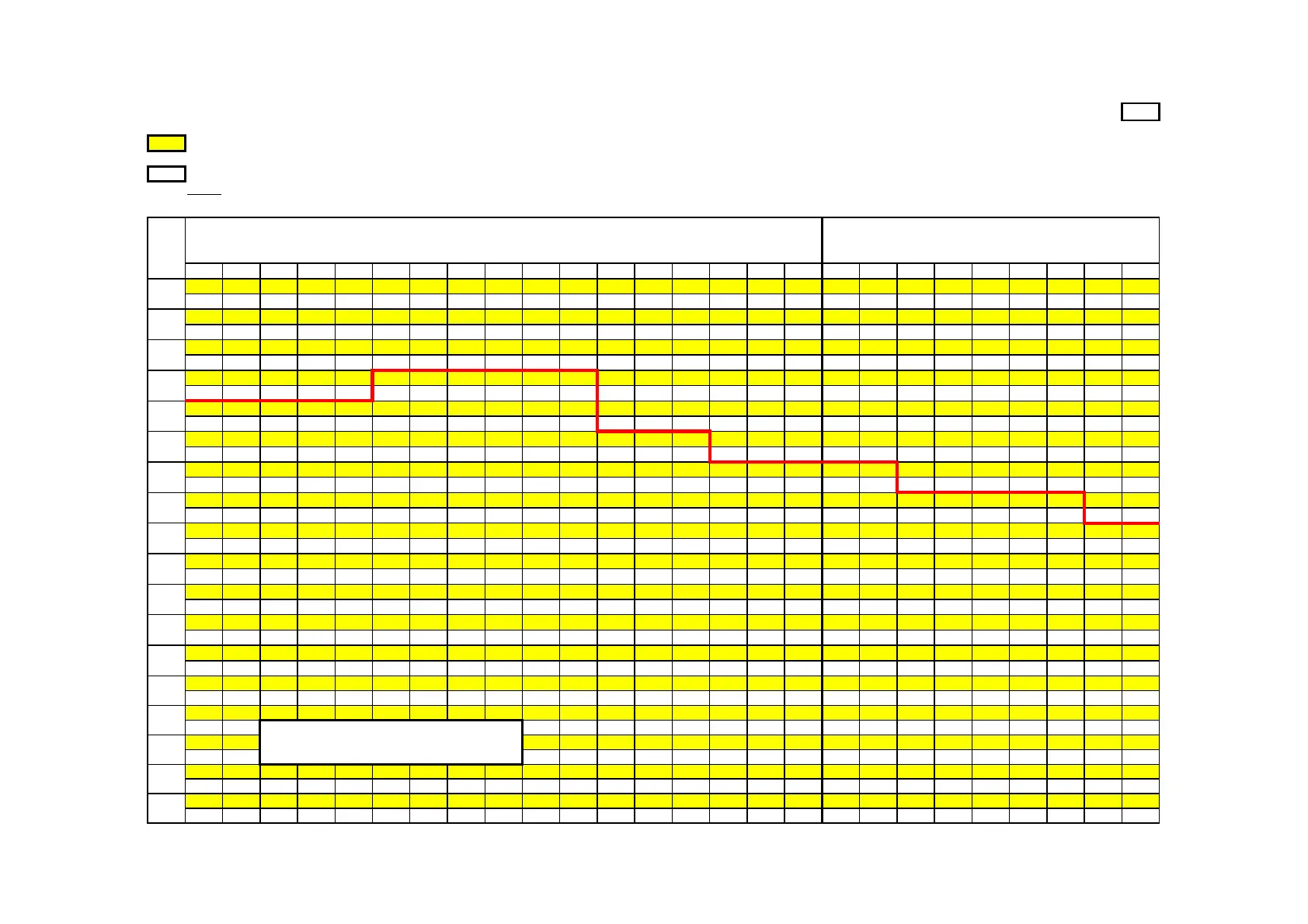

MAC-25 RHINO HOOK LOAD CHART - 10 DE
G
LMI DUT
Y
202
COUNTERWEIGHT ON REAR OF CRANE - SPRING LOCKOUTS ENGAGED
S.W.L. ARE BASED ON 66.7% STABILITY & STRENGTH
S.W.L IN KILOGRAMS FOR SLEW ANGLES OF 10 DEGREES OR LESS EITHER
- S.W.L. ABOVE BOLD RED LINE ARE STRUCTURAL
SIDE OF STRAIGHT AHEAD (INDICATED BY GREEN LED ON DASH).
S.W.L. ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG) AS PER AS1418.5)
BOOM ANGLE - UNDEFLECTED (REF.)
WITH TYRES INFLATED AS PER NOTES
NOTE :
VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE.
LIFT & CARRY - THE S.W.L. SHALL BE CARRIED WITH THE MINIMUM BOOM LENGTH & AS
CLOSE TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 M/SEC (1.44 KM/HR)
Radius BOOM PIVOT TO HOOK CENTRE - THIRD BOOM RETRACTED THIRD BOOM EXTENDING
in (metres) (metres)
Metres 6.45 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 14.00 14.65 15.00 15.50 16.00 16.50 17.00 17.50 18.00 18.50 18.75
1.4
15000 15000 15000 15000 15000 15000 15000
51 55 58 60 62 64 65
2.0
15000 15000 15000 15000 15000 15000 15000 15000 15000 15000
44 49 52 55 57 59 61 63 64 65
2.5
15000 15000 15000 15000 15000 15000 15000 15000 15000 15000 15000 14200
37 43 47 50 53 56 58 59 61 63 64 65
3.0
15000 15000 15000 15000 14950 14900 14900 14850 14850 14800 14800 13200 12750 12300
29 36 41 45 49 52 54 56 58 60 61 62 64 65
3.5
12700 12700 12650 12650 12600 12600 12550 12550 12500 12500 12500 12300 11850 11450 11150 10800
17 29 35 40 44 47 50 52 55 56 58 60 61 62 63 64
4.0
11750 10900 10900 10900 10850 10850 10800 10800 10800 10750 10750 10750 10700 10700 10400 10100 9750 9600 9450
(3.7) 18 28 34 39 43 46 49 51 53 55 57 58 60 61 62 63 64 65
5.0
10050 8800 8400 8400 8400 8350 8350 8350 8300 8300 8300 8300 8250 8250 8250 8250 8250 8300 8200 8050 7900 7800 7700
(4.3) (4.8) 16 26 32 37 40 44 46 49 51 53 54 56 57 59 60 61 62 63 64 65 65
6.0
7800 7000 6750 6700 6700 6700 6700 6700 6650 6650 6650 6650 6650 6600 6650 6700 6700 6750 6800 6800 6850 6800 6650
(5.3) (5.8) 15 24 30 35 38 42 44 47 49 51 52 54 55 57 58 59 60 61 62 63 63
7.0
6300 5750 5550 5550 5500 5500 5500 5500 5500 5500 5450 5450 5500 5550 5550 5600 5650 5650 5700 5700 5700
(6.3) (6.8) 15 23 29 33 37 40 42 45 47 49 50 52 53 55 56 57 58 59 60
8.0
5200 4800 4650 4650 4650 4600 4600 4600 4600 4600 4600 4650 4700 4700 4750 4800 4800 4850 4850
(7.3) (7.8) 14 22 28 32 35 38 41 44 45 47 49 50 52 53 54 55 56
9.0
4400 4050 3950 3950 3950 3950 3900 3900 3950 4000 4000 4050 4050 4100 4150 4150 4150
(8.3) (8.8) 13 21 27 31 34 38 39 42 44 46 47 49 50 51 52
10
3750 3450 3350 3350 3350 3350 3400 3450 3450 3500 3550 3550 3600 3600 3600
(9.3) (9.8) 13 20 26 31 33 36 38 40 42 44 46 47 48
11
3200 3000 2900 2900 2950 3000 3000 3050 3100 3100 3150 3150 3150
(10.3) (10.8) 12 21 25 29 32 35 37 39 41 43 44
12
2800 2550 2550 2600 2650 2700 2700 2750 2750 2800 2800
(11.3) (11.9) 12 19 24 28 31 34 36 38 39
13
2450 2350 2300 2350 2400 2400 2450 2450 2500
NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER (12.3) (12.8) 12 18 23 27 30 33 34
14
LOAD HANDLING DEVICES SHALL BE ADDED 2200 2100 2100 2150 2150 2200 2200
TO THE WEIGHT OF THE LOAD (13.3) (13.8) 11 18 23 26 28
15
2000 1950 1950 1950 1950
(14.3) (14.8) 11 17 20
16
1850 1750 1750
(15.3) (15.8) (16.)
35/66 MXC1347B COUNTERWEIGHT - REAR MAC 25 RHINO HOOK - 10 DEG
