Terex MAC 25 - Page 58

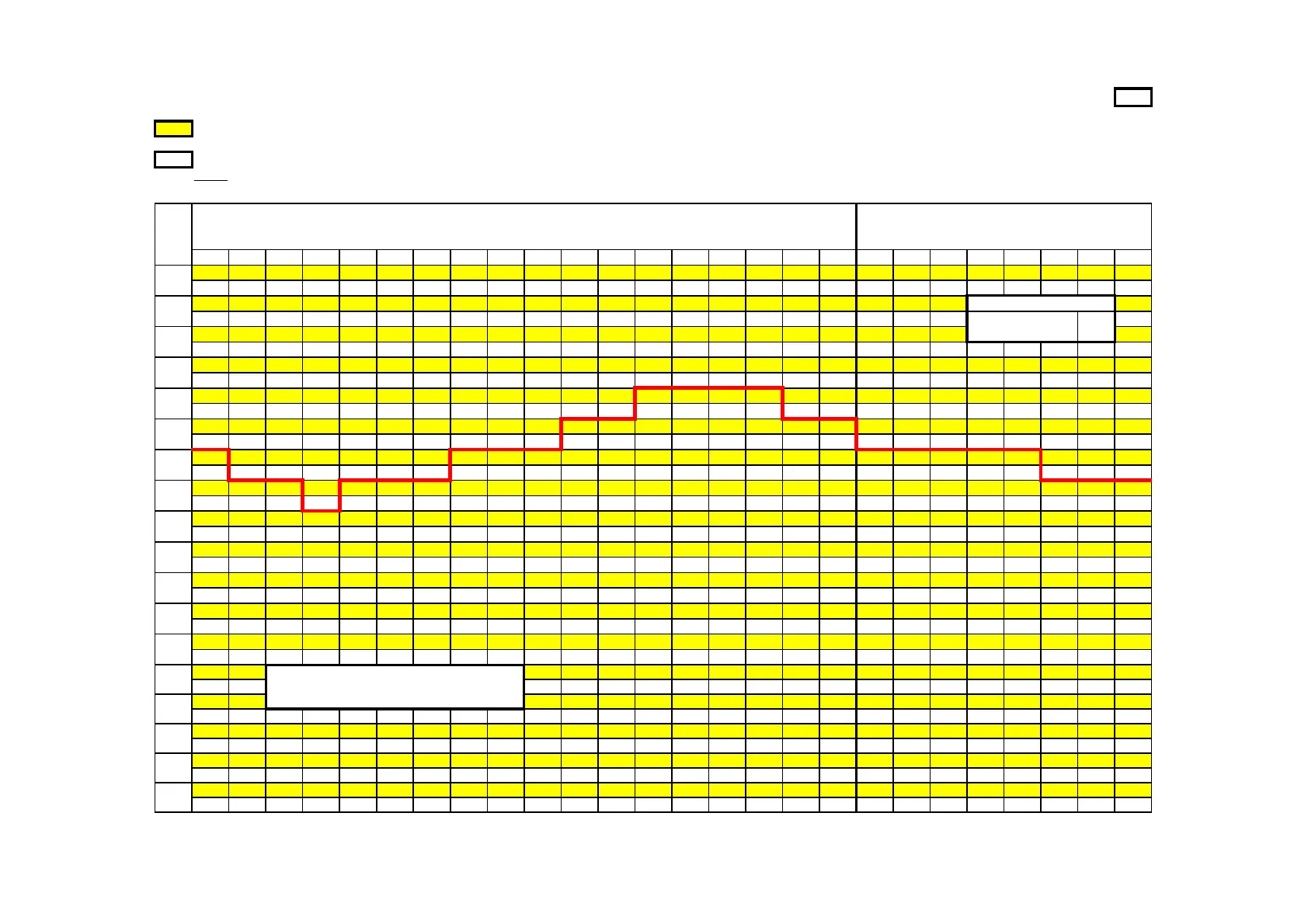

MAC-25 OFFSET HEAD BOTTOM POSITION LOAD CHART - 40 DEG
LMI DUTY
303
STANDARD 1500 KG COUNTERWEIGHT (PLMXF2009) + EXTRA 2160 KG COUNTERWEIGHT (PLMXF2019-) ON REAR OF CRANE - SPRING LOCKOUTS ENGAGED
RC IN KILOGRAMS FOR SLEW ANGLES OF GREATER THAN 10 DEGREES UP TO 40
RC ABOVE BOLD RED LINE ARE STRUCTURAL
DEGREES EITHER SIDE OF STRAIGHT AHEAD (INDICATED BY RED LED ON DASH).
RC ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG) AS PER AS1418.5)
BOOM ANGLE - UNDEFLECTED (REF.)
WITH TYRES INFLATED AS PER NOTES
NOTE :
VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE.
LIFT & CARRY - THE RC SHALL BE CARRIED WITH THE MINIMUM BOOM LENGTH & AS
RC ARE BASED ON 66.6% STABILITY & STRENGTH CLOSE TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 m/s (1.44 km/h)
Radius BOOM PIVOT TO EDGE OF SHEAVE - THIRD BOOM RETRACTED THIRD BOOM EXTENDING
in (metres) (metres)
Metres 6.86 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 14.00 14.50 15.06 15.50 16.00 16.50 17.00 17.50 18.00 18.50 19.16
1.4
8400 8400 8400 8400 8400 8400
55 56 59 61 63 65
2.0
8400 8400 8400 8400 8400 8400 8400 8400 8400
WINCH RC
49 50 53 56 58 60 62 64 65 SINGLE PART 4200
2.5
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 TWO PARTS 8400
43 44 48 51 54 56 58 60 62 63 65
3.0
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400
36 38 43 46 50 52 55 57 59 60 62 63 64 65
3.5
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8150 7850 7600 7400
27 30 36 41 45 48 51 53 55 57 59 60 62 63 64 65
4.0
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8200 7900 7650 7400 7150 6900 6700 6500
(4.2) 19 29 35 40 44 47 50 52 54 56 58 59 60 62 63 64 65
5.0
8400 8400 8400 8400 8400 8400 8150 7850 7550 7250 7000 6750 6500 6300 6100 5950 5750 5650 5550 5450 5350 5250
(4.3) (4.8) 18 27 33 38 41 44 47 49 52 53 55 57 58 59 61 61 62 63 64 65
6.0
8400 7550 7250 7250 7150 6850 6600 6350 6150 6000 5750 5600 5400 5250 5100 5000 4950 4850 4750 4700 4600 4550 4450
(5.3) (5.8) 17 25 31 36 39 42 45 47 49 51 53 54 56 57 58 59 60 61 62 63 64
7.0
6800 6200 5950 5950 5850 5650 5450 5250 5100 5000 4850 4700 4550 4500 4400 4350 4300 4200 4150 4100 4000
(6.3) (6.8) 16 24 30 34 37 40 43 45 47 49 51 52 54 55 56 57 59 59 61
8.0
5650 5150 5000 5000 4900 4700 4550 4450 4300 4200 4100 4050 3950 3900 3850 3800 3750 3700 3650
(7.3) (7.8) 15 23 28 33 36 39 41 44 46 48 49 51 52 53 55 56 57
9.0
4750 4400 4250 4250 4150 4000 3900 3800 3650 3650 3600 3550 3500 3450 3400 3350 3300
(8.3) (8.8) 14 22 27 31 35 37 40 42 44 46 48 49 51 52 53
10
4050 3800 3700 3700 3550 3450 3300 3300 3250 3200 3150 3150 3100 3050 3000
(9.3) (9.8) 14 21 26 30 34 36 39 41 43 45 46 48 50
11
3500 3250 3200 3200 3050 3000 2950 2900 2900 2850 2850 2800 2750
(10.3) (10.8) 13 20 26 29 32 35 37 40 42 43 45
12
NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER 3050 2850 2800 2800 2750 2700 2650 2600 2600 2550 2550
LOAD HANDLING DEVICES SHALL BE ADDED (11.3) (11.8) 14 20 24 28 31 34 36 39 41
13
TO THE WEIGHT OF THE LOAD 2650 2550 2500 2500 2450 2400 2400 2350 2350
(12.4) (12.8) 12 19 24 27 30 33 36
14
2400 2300 2300 2300 2250 2200 2150
(13.3) (13.8) 12 18 23 27 30
15
2200 2100 2100 2100 2000
(14.3) (14.8) 12 18 24
16.4
2000 1950 1850
(15.3) (15.8) (16.4)
55/66 MXC1347B 16.6t RAW COUNTERWEIGHT - REAR MAC 25 OFFSET HEAD BOTTOM POSITION - 40 DEG
