Terex MAC 25 - Page 59

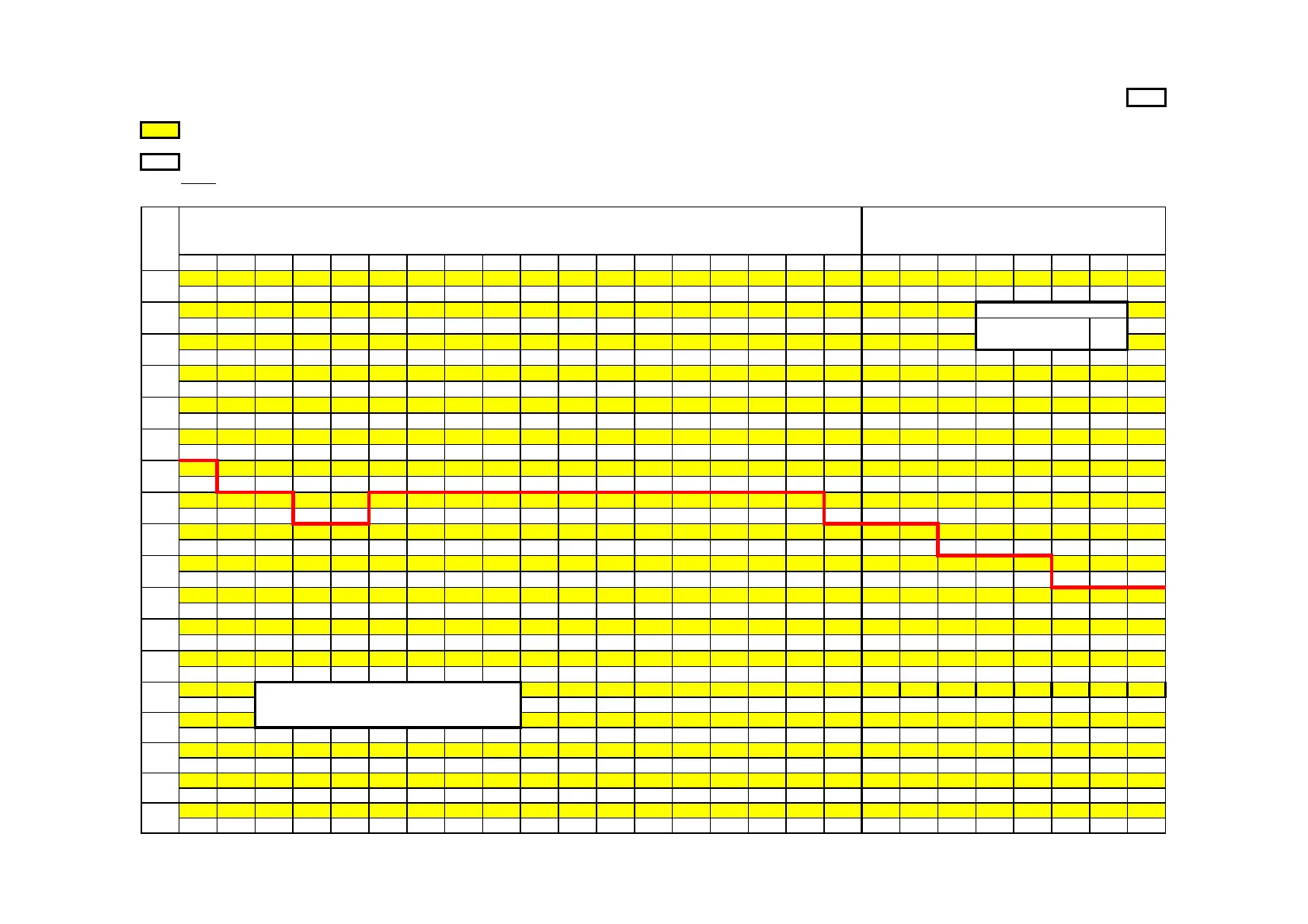

MAC-25 OFFSET HEAD TOP POSITION LOAD CHART - 10 DEG
LMI DUTY
304
STANDARD 1500 KG COUNTERWEIGHT (PLMXF2009) + EXTRA 2160 KG COUNTERWEIGHT (PLMXF2019-) ON REAR OF CRANE - SPRING LOCKOUTS ENGAGE
D
RC IN KILOGRAMS FOR SLEW ANGLES OF 10 DEGREES OR LESS EITHER
RC ABOVE BOLD RED LINE ARE STRUCTURAL
SIDE OF STRAIGHT AHEAD (INDICATED BY GREEN LED ON DASH).
RC ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG) AS PER AS1418.5)
BOOM ANGLE - UNDEFLECTED (REF.)
WITH TYRES INFLATED AS PER NOTES
NOTE :
VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE.
LIFT & CARRY - THE RC SHALL BE CARRIED WITH THE MINIMUM BOOM LENGTH & AS
RC ARE BASED ON 66.6% STABILITY & STRENGTH CLOSE TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 m/s (1.44 km/h)
Radius BOOM PIVOT TO EDGE OF SHEAVE - THIRD BOOM RETRACTED THIRD BOOM EXTENDING
in (metres) (metres)
Metres 6.82 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 14.00 14.50 15.02 15.50 16.00 16.50 17.00 17.50 18.00 18.50 19.12
1.4
8400 8400 8400 8400 8400 8400 8400
52 53 56 58 60 62 64
2.0
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400
WINCH RC
45 47 50 53 56 58 60 61 63 64 SINGLE PART 4200
2.5
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 TWO PARTS 8400
39 41 45 49 52 54 56 58 60 61 63 64
3.0
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400
32 34 40 44 47 50 53 55 57 58 60 61 63 64 65
3.5
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400
24 27 33 38 42 46 49 51 53 55 57 59 60 61 62 63 64
4.0
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400
(4.1) 16 26 32 37 41 45 47 50 52 54 56 57 59 60 61 62 63 64
5.0
8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8400 8300 8200 8050 7950
(4.3) (4.8) 15 24 30 35 39 42 45 48 50 52 53 55 56 58 59 60 61 62 63 64 65
6.0
8400 8400 8150 8150 8150 8100 8100 8050 8050 8050 8050 8000 8000 8000 7800 7650 7500 7400 7250 7150 7050 6950 6300
(5.3) (5.8) 14 23 29 34 37 40 43 46 48 50 51 53 54 56 57 58 59 60 61 62 63
7.0
7700 7000 6750 6750 6750 6700 6700 6700 6700 6650 6650 6650 6650 6650 6700 6650 6500 6450 6350 6250 5850
(6.3) (6.8) 14 22 28 32 36 39 41 44 46 48 50 51 53 54 55 56 57 58 59
8.0
6400 5900 5700 5700 5700 5700 5650 5650 5650 5650 5600 5650 5700 5700 5750 5800 5750 5650 5450
(7.3) (7.8) 13 21 27 31 34 37 40 42 44 46 48 49 51 52 53 55 56
9.0
5450 5050 4900 4900 4850 4850 4850 4850 4850 4850 4900 4950 4950 5000 5000 5050 5050
(8.3) (8.8) 12 20 25 30 33 36 39 41 43 45 46 48 49 51 52
10
4700 4350 4250 4250 4200 4200 4200 4250 4250 4300 4350 4350 4400 4400 4450
(9.3) (9.8) 12 19 25 29 32 35 37 40 42 43 45 47 48
11
4050 3800 3700 3700 3700 3700 3750 3800 3800 3850 3850 3900 3900
(10.3) (10.8) 12 19 24 28 31 34 36 38 40 42 44
12
NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER 3550 3350 3250 3300 3300 3350 3400 3400 3450 3450 3500
LOAD HANDLING DEVICES SHALL BE ADDED (11.3) (11.8) 12 18 23 27 30 33 35 37 40
13
TO THE WEIGHT OF THE LOAD 3150 3000 2950 3000 3000 3050 3050 3100 3100
(12.3) (12.8) 11 18 22 26 29 32 35
14
2850 2700 2700 2700 2750 2800 2800
(13.3) (13.8) 11 17 22 25 29
15
2600 2500 2450 2500 2550
(14.3) (14.8) 10 17 22
16.45
2400 2300 2200
(15.3) (15.8) (16.5)
56/66 MXC1347B 16.6t RAW COUNTERWEIGHT - REAR MAC 25 OFFSET HEAD TOP POSITION - 10 DEG
