Terex TA300 User Manual

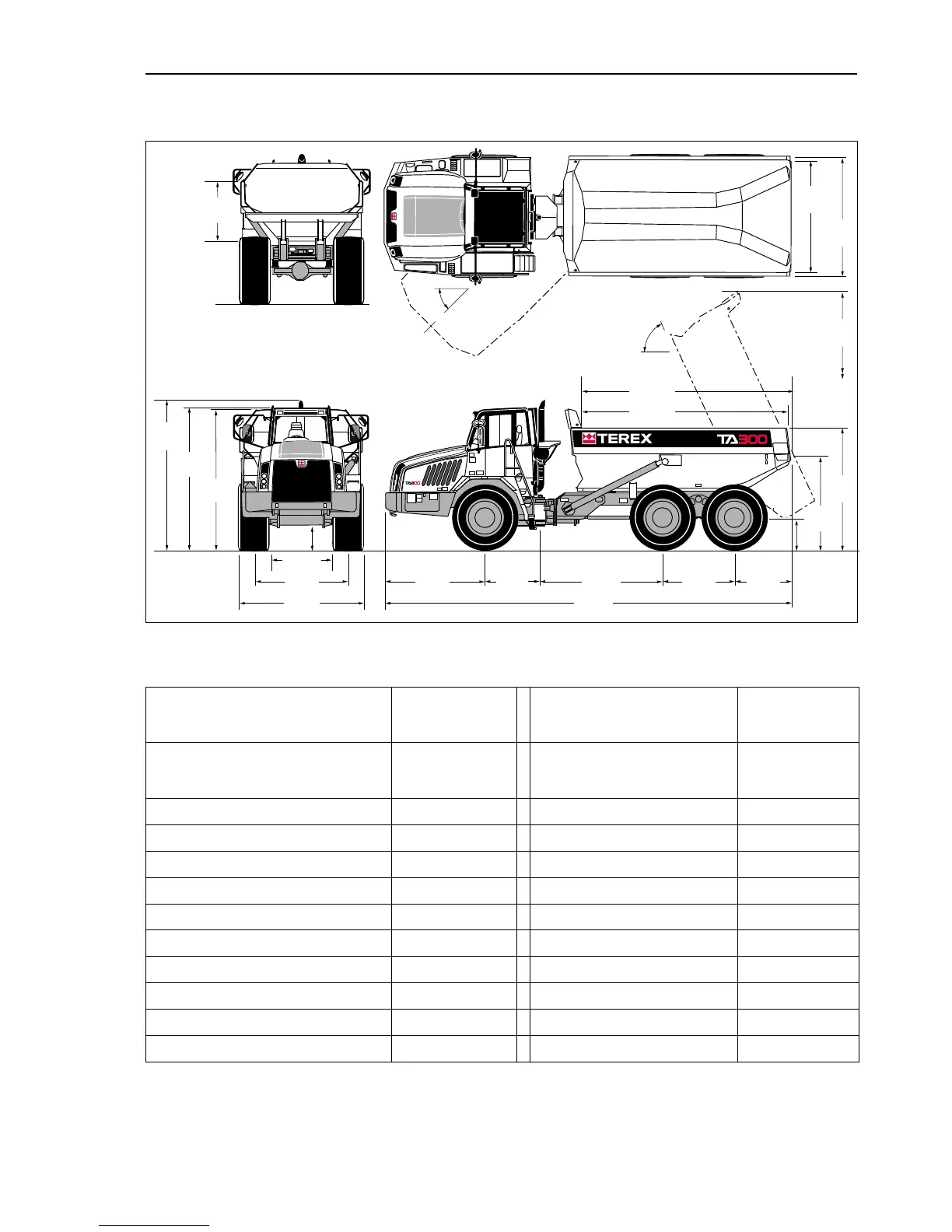

Technical Data
9-3
2 575
(8-5)
2 200
(7-2)
1 310
(4-4)
2 945
(9-8)
4 920
(16-2)
5 010
(16-5)
1 690
(5-6)
1 410
(4-9)
2 175
(7-0)
725
(2-3)
2 895
(9-6)
2 685
(8-10)
2 895
(9-6)
9 930
(32-6)
2 895
(9-6)
3 420
(11-2)
3 325
(10-10)
405
(1-6)
1 580
(5-3)
4 230
(13-10)
1 445
(4-9)
6 110
(20-0)
45˚
65˚
Max.
Body
Depth
SAE Turning Radius
Clearing Radius
8 470mm (27-9)
8 950mm (29-4)
Dimensions in
mm (ft-in)
MOT00284
TECHNICAL DATA TA300
ENGINE
NOTICE: The Tier IV Engines meet ACEA E7 specifications.
Make / Model Scania DC09 Cooling Coolant (50% Water
and 50% Glycol - anti-
freeze)
Fuel injection Scania XPI Valve clearances, cold engine
intake valve (mm/in)
outlet valve (mm/in)
0.45/0.02
0.70/0.03
Number of cylinders and configuration 5, straight Number of teeth on the flywheel 158
Working principle 4 stroke engine Low idle speed (rpm) 600–750
Cylinder diameter (mm/in) 130/5.12 Maximum full-load speed (rpm) 2 100
Cylinder diameter (mm/in) 140/5.51 Maximum torque at speed (rpm) 1300
Displacement (dm3/in3) 9.3/567.5 Fuel Diesel (10 PPM)
Firing sequence 1-2-4-5-3 Oil pan capacity 32 - 38 Litres
Power Range 276kW Weight, without coolant and oil (kg/lb) 950/2094
Compression ratio 16:1
Engine direction of rotation, viewed from rear Anticlockwise
Fan direction of rotation, viewed from front Clockwise

Terex TA300 Specifications

General

Brand	Terex
Model	TA300
Category	Trucks
Language	English
