Terex TA300 - Operator Interface Overview

Controls and Operating
3-3

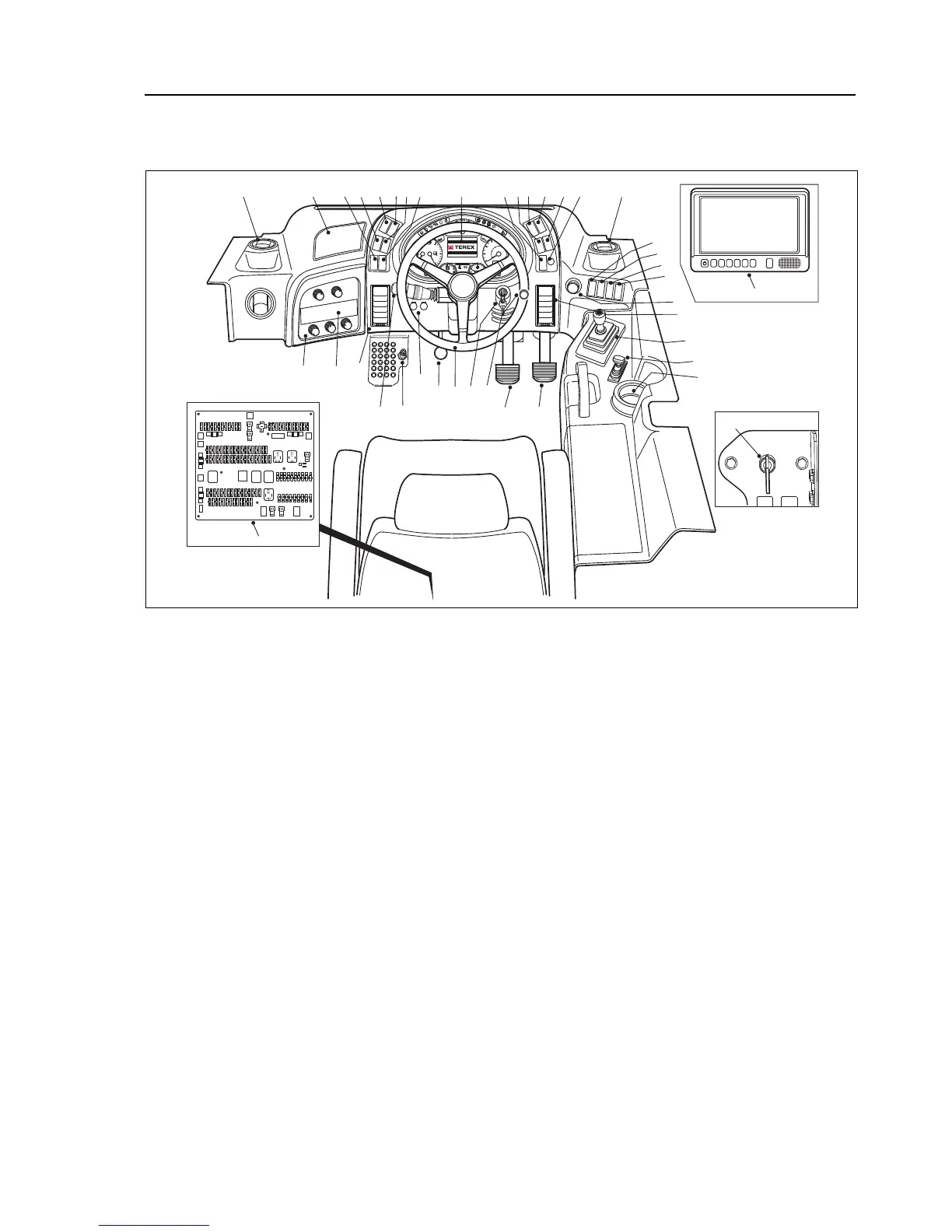

CONTROLS AND INSTRUMENTS
MENU SELECT DN UP + -
P
5
0
10
15
20
25
30
STOP
1
2
RE
0
10
20
30
40
80
70
60
50
0
10
20
50
40
30
km/h
rpm
mph
000000
00_
TA300-A11
88.88.2011 88.88.88
GIGA
MCU HV008
V01.04.01
SV08.08.08
123 4 5 6 7 8 9 10 11 12 13 14 15 1
16
17
18
19
20
21
22
23
2526
282930
32
31
33
35
34
36
21
24
27
37
MOT00064
38
1 - Side Window Demister
2 - N/A
3 - Hazard Warning Lights
4 - N/A
5 - Display Menu O.K. Switch
6 - Display Menu Navigation Switch
7 - N/A
8 - Rear Wash / Wipe
9 - Display Screen
10 - N/A
11 - Transmission Retarder Request Switch
12 - Engine Exhaust Brake Request Switch
13 - N/A
14 - Transmission Differential Lock Request switch
15 - N/A
16 - Heated Mirrors (Optional)
17 - Rear Working Lights (Optional)
18 - Flashing / Rotating Beacon (Optional)
19 - Rear Fog Lamp (Optional)
20 - Park / Emergency Brake Control
21 - Heater Vent
22 - Transmission Gear Shift Control
23 - Body Control Lever
24 - Cup Holder
25 - Accelerator Control
26 - Service Brake Control
27 - Engine Start / Stop Switch
28 - Power Key Switch
29 - Steering Wheel
30 - Steering Wheel Adjustment Lock
31 - 12V / 24V Jack Points
32 - Cross Axle Differential Lock Request Switch
33 - Lights, Windscreen Wiper / Wash, Horn Switch,
Direction Indicators
34 - Radio Facia
35 - Heater/Air Conditioner Controls
36 - Battery Master Switch
37 - Rear View Camera
38 - Fuse / Relay Printed Circuit Board
