Controls and Operating
3-18
TRANSMISSION DIAGNOSTICS is based on the ZF TCU_1 CAN Mes-
sage. In the ‘ERROR CODE’ the ZF TCU ERROR CODE is displayed
cyclically in 1 second intervals.
The display indicates gear selected and driving direction as follows:
Manual Mode - When driving with the shift selector in manual range, the
bars only are shown in position 1, and, driving direction and gear selected
are indicated in positions 2 and 3.
Automatic Mode - When driving with the shift selector in automatic
range, a full display of bars and arrows are shown in position 1, and, driv-
ing direction and gear selected are indicated in positions 2 and 3. For
more details please refer to Section 3.

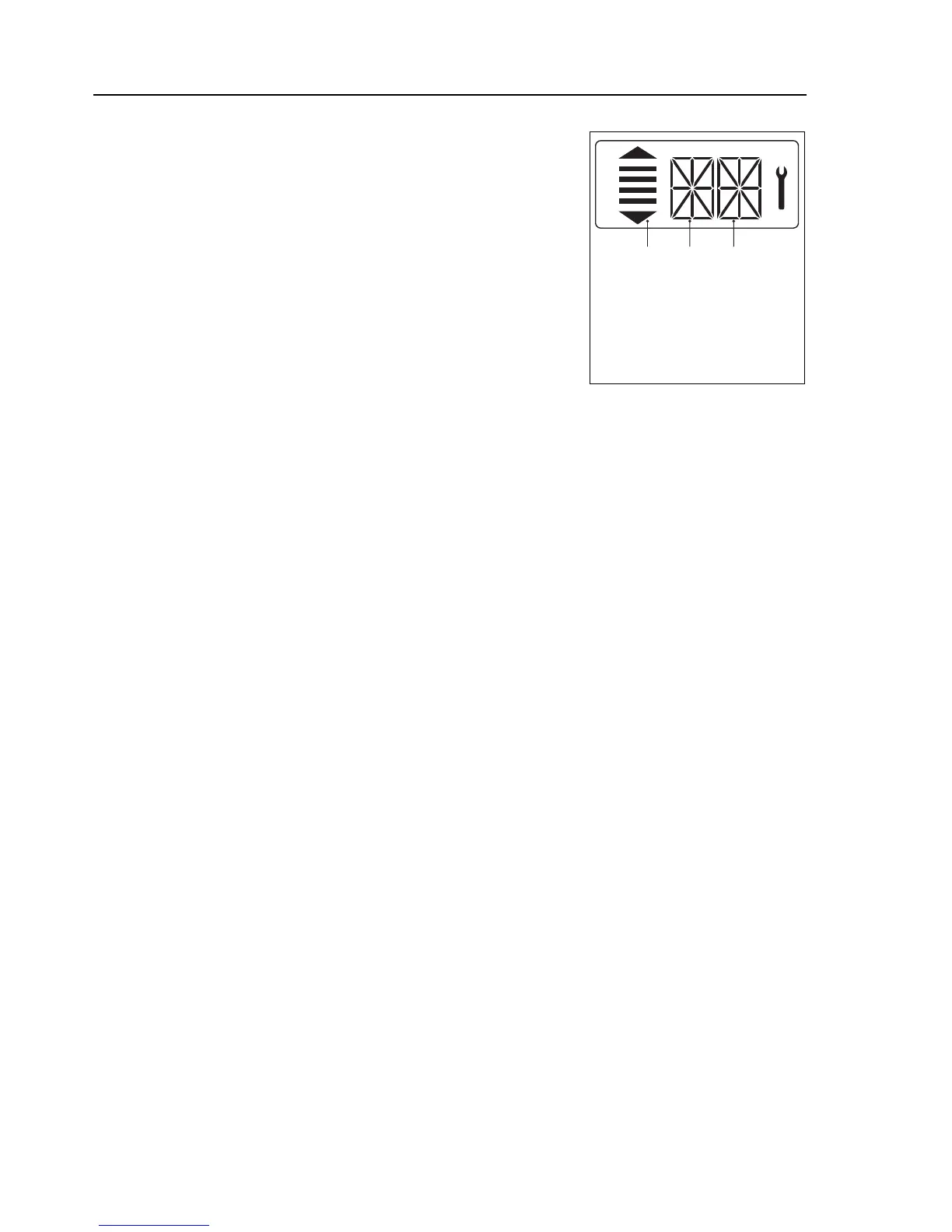

1 - Bars show gear ranges and full display
(as
'shown) indicates driving in auto-
matic mode.
2 - Display shows actual gear in use.
3 - Display shows actual driving direc-
tion.
