2-16
Safety
Please be fully aware that there are areas around the vehicle that cannot be seen when operating the vehicle in
normal conditions and all operators should survey their surroundings and field of vision before and during vehicle
operation.
Site management should employ suitable jobsite organization to minimize hazards due to restricted
visibility.

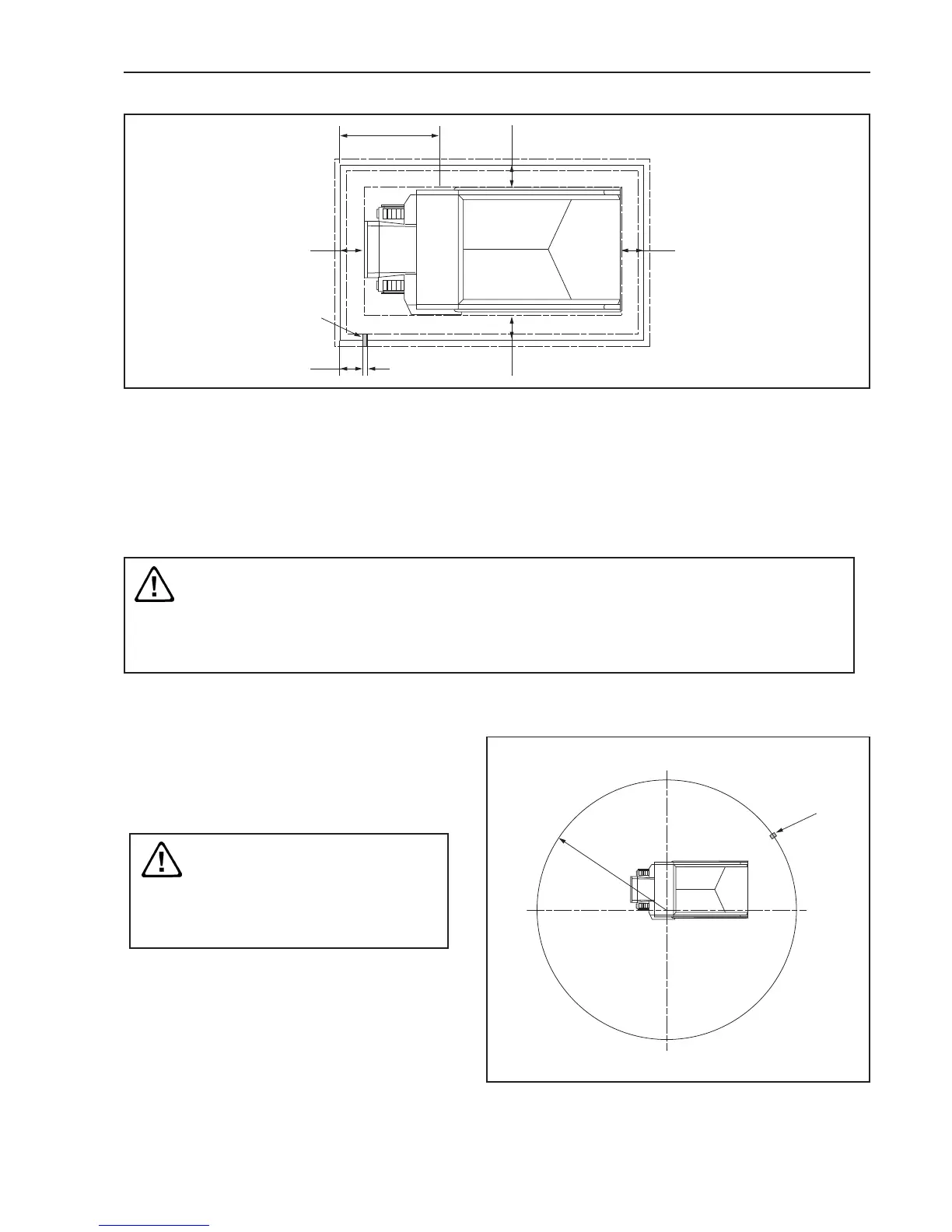

The visibility at a radius of 12 m from the Seat Index Point (SIP) is shown in the diagram below. The hatched
area (B) shows the area where the view is blocked, when mirrors and other CCTV visual aids are installed and
adjusted correctly.
Site management should employ suitable
jobsite organization to minimize hazards
due to restricted visibility.
2068
R
1
2 m
B
R
1
2 m
The visibility for this vehicle at a 1m area boundary from the outside surface of the vehicle at a height no greater than
1.5 m is shown in the diagram above. The hatched area (A) shows the area where the operator’s view is blocked by
part of the machine, when mirrors and other CCTV visual aids are installed and adjusted correctly, when viewing from
the operator’s seating position.
Visibility
2067
1000 1000
1000 1000
1000
4 280
200
A
