Terex TR100 - Page 50

2-26
Safety
30 1C 1 0.3 30 1L 10 5
25 1C 3 1 25 2 15 9
20 1L 5 3 20 3 22 14
15 1L 9 5 15 4 28 17
10 2 15 9 10 4 34 21
5 4 30 17 5 5 54 33
0
TR35
555340555
34
15335780
%
KPH MPH
%
KPH MPH
WARNING
Operating the
truck outside
the stated limits
on the chart
could result in
death or serious
injury.
Do not operate
truck outside
the limits stated
on the chart.
Select the correct
gear for the
gradient you are on.
30 30 1L 11 6
25 1C 5 3 25 1L 12 7
20 1C 6 3 20 2 16 9
15 1L 10 6 15 3 20 12
10 2 15 9 10 4 31 19
5 4 30 18 5 6 59 36
0
TR45
666410666
41
15335781
%
KPH MPH
%
KPH MPH
Operating the
truck outside
the stated limits
on the chart
could result in
death or serious
injury.
Do not operate
truck outside
the limits stated
on the chart.
Select the correct
gear for the
gradient you are on.
WARNING

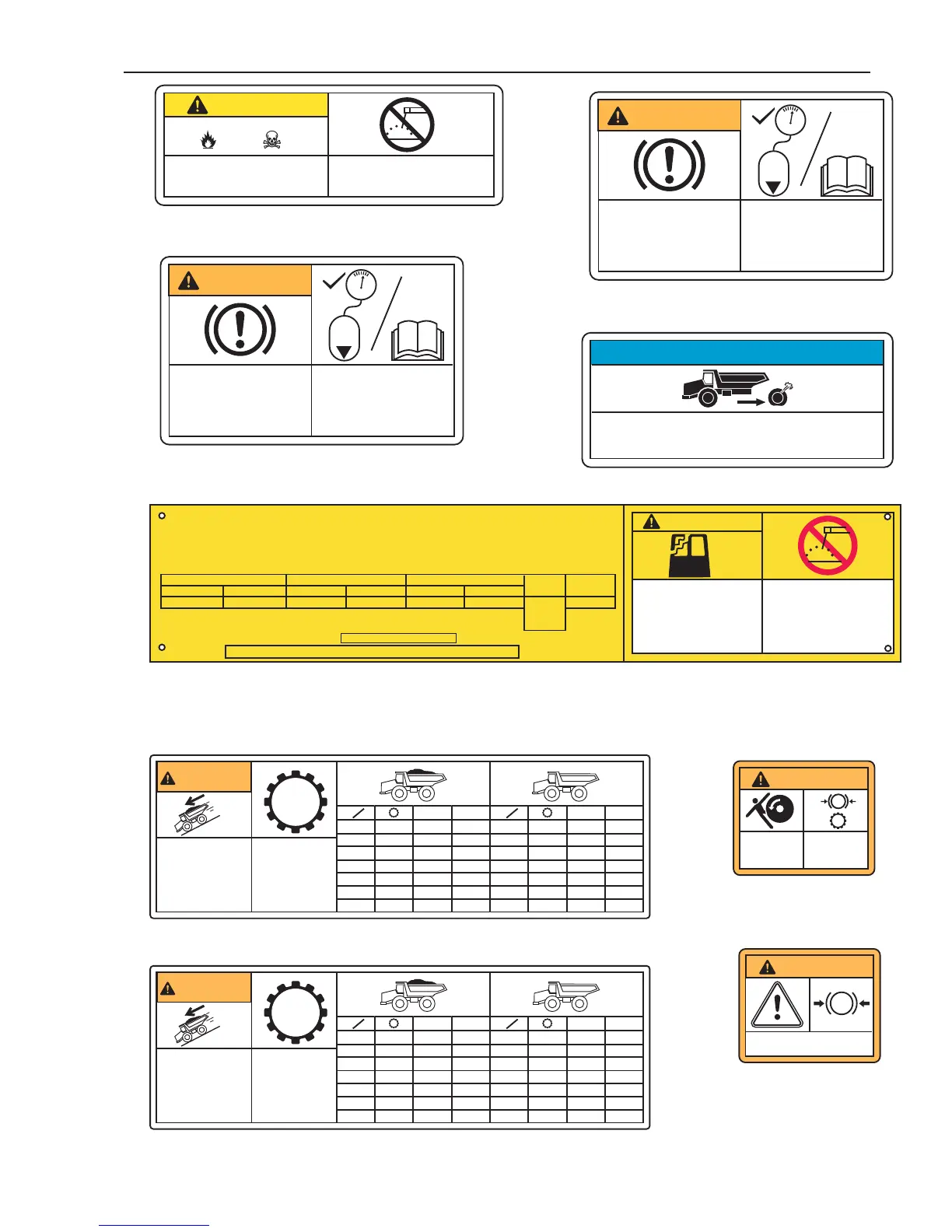

SAFETY DECAL SET ANSI STANDARD
Decline Warning TR35 (1911)
Decline Warning TR45 (1913)
15335812
CAUTION
NOTICE OF ROPS & FOPS CERTIFICATION
This structure meets the following requirements
for the machine and weights listed:
ROPS FOPS MAX. WEIGHT
SAE ISO SAE ISO
STRUCTURE
PART No.
lb kg
MODEL
MANUFACTURED FOR/BY
TEREX EQUIPMENT LTD. - SCOTLAND
Damage to ROPS may
weaken structure
and may cause injury.
If damaged, ROPS
must be replaced.
Do not repair.
Unauthorised modification
will void certification.
Tighten fastners
periodically.
ROPS and FOPS (1932)
Warning maintain accumulators (1922)
Caution cab foam, do not burn or weld cab structure
(1921)
Warning Suspension Struts
(1930)
Rim Clamps (1929)
Warning Park Brake
(1926)
Warning Emergency/Park
Brake (1971)
Accumulators.
Incorrectly maintained
accumulators can result
in brake failure, which
can result in death or
serious injury.
Maintain nitrogen
precharge in accumulators
for proper operation of
brake system.
Read manual for brake
system imformation.
15333270
N
2
PSI / BAR
0
WARNING
PERSONAL INJURY CAN
OCCUR IF WELDING OR
BURNING CAB STRUCTURE
DO NOT WELD OR BURN CAB
STRUCTURE UNLESS
ACCOUSTICAL FOAM IS REMOVED
CAUTION
15335790
Deflate tyre completely before
loosening rim clamps. For dual
assembly, delate both tyres
before loosening rim clamps.
15335791
NOTICE
SUSPENSION STRUTS
suspension is equipped
with precharged
nitrogen gas cylinders.
Read manual for
suspension and ride strut
system inrormation.
15335822
N
2
PSI / BAR
0
WARNING
15335815
WARNING
P
USE TO STOP ONLY IN EMERGENCY
OTHERWISE USE PARKING BRAKE
N
15335787
P
1.
2.
Crush Hazard.
Sudden and unwanted
machine movement can
result in serious
injury or death.
Always ensure when
starting / stopping
engine to :
1. Apply park brake
2. Shift transmission
into neutral.
WARNING
