Bracing Angle
Bracing Plate
Once adjusted to
brace gap, use pilot
holes for fixing.
Special Circumstance
x Gap greater than 97.5mm
x Use Bracing Plate to bridge the gap
and cut plate if necessary
x Use slots for adjustment
x Use pilot holes to fix in position
Intermediate
Guide
Join Below
Guide
Aperture
x Long sling has intermediate guides to allow for
differing ceiling heights within its range.
x There will always be a guide join above and below the
aperture.
x Join below aperture needs to be braced back to wall.

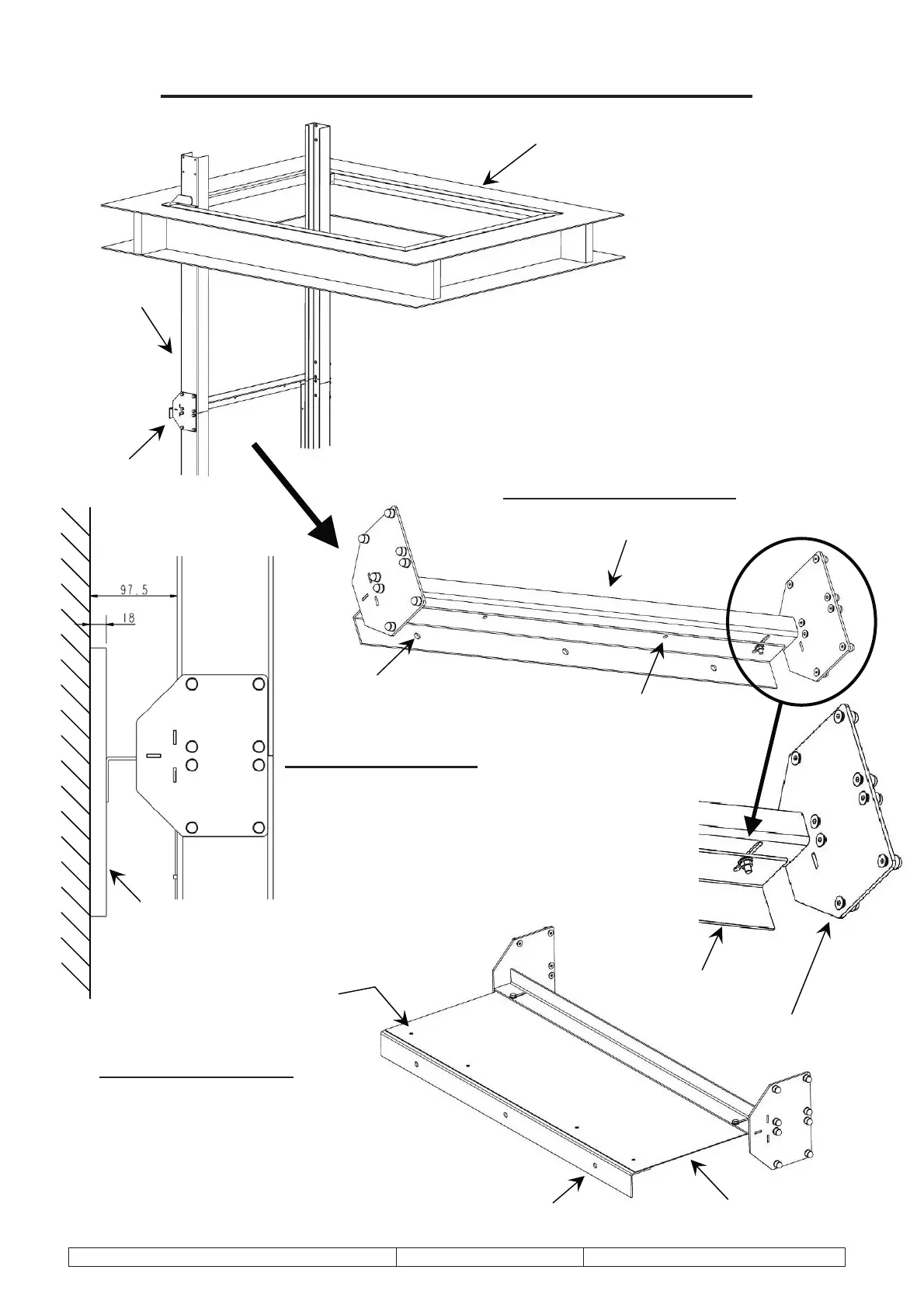

Intermediate Guide Installation – Long Sling ONLY
Long Sling Lower Guide Brace Kit
- LHG2039 (STD)
- LHG5014 (WIDE)
Bracing Angle
Bracing Fish Cross Bar
Once adjusted to brace
gap, use pilot holes to fix.
Use wall fixing kit supplied,
to brace to wall.
Normal Circumstance
x 97.5mm or less between rear of guides & wall patch
x Bracing Fish Cross Bar with Bracing Angle
x Slots allow for adjustment within this gap
x Use pilot holes to fix bracing angle in position
18mm thk Wall Patch should
already be fitted to wall as part of
prep-work for lift.
