Harmony Series 2 Homelift - XH00200 Issue: D Page 33 of 106
3. Secure the trapdoor leg to the
trapdoor using the two rectangular
washer plates and nyloc nuts supplied.

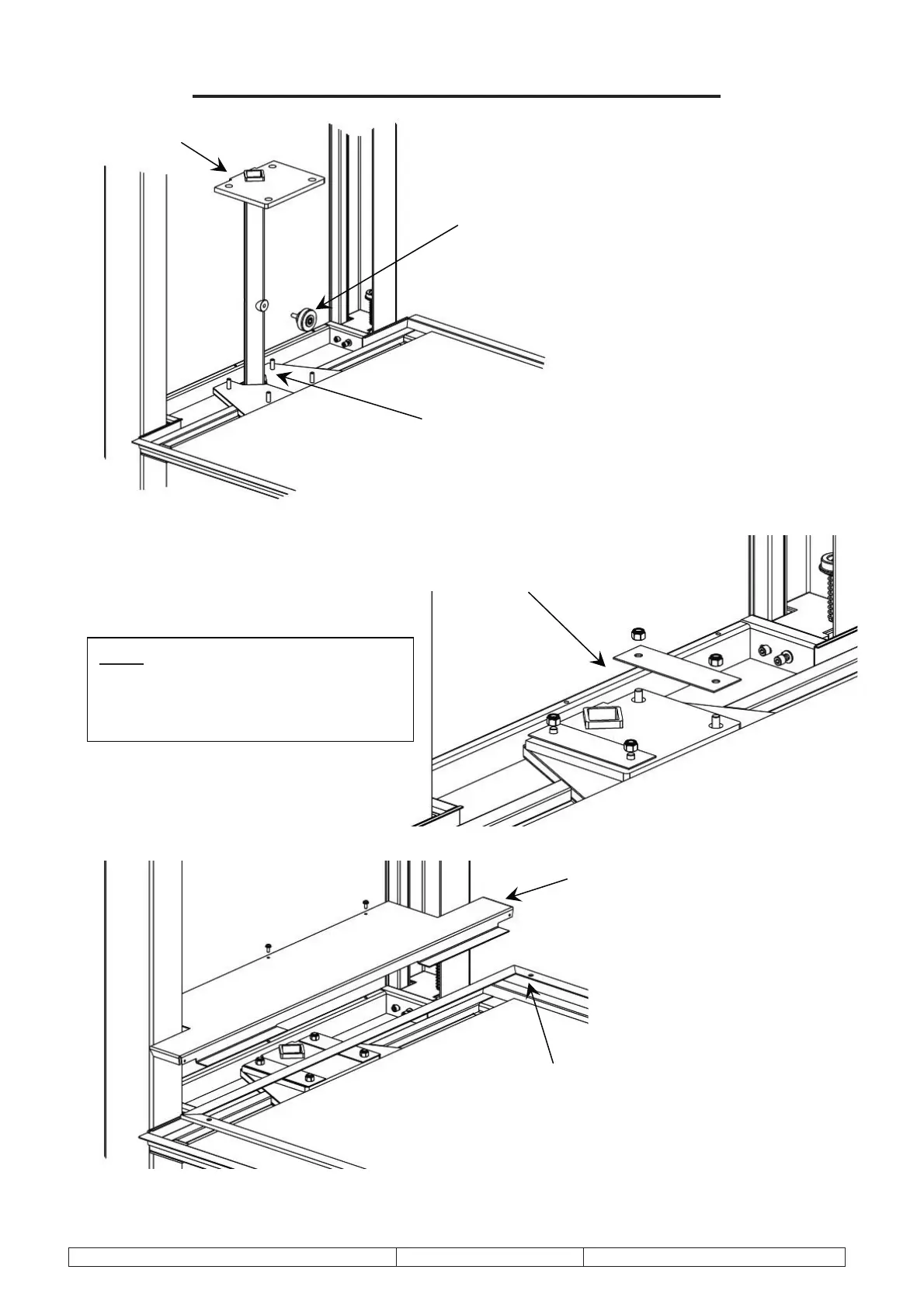

Fitting the Trapdoor ‘Leg’ & Rear Cover Plate
Note: It may be necessary to adjust
the position of the trapdoor panel on
the four nuts, to ensure it sits flush
down into the liner during set up.
1. Remove roller arrangement from
front of trapdoor leg.
2. Feed trapdoor leg through cut out in
trapdoor panel, dropping the four holes in
trapdoor leg plate, over the four studs on
the trapdoor.
Trapdoor Leg
5. Fit the flooring e.g. carpet, and fix
with the carpet attachment frame
and fasteners as shown.
4. Fit the trapdoor rear cover
plate to the trapdoor panel,
using the fasteners supplied.
6. Re-attach the roller arrangement to the trapdoor leg.
To Next Page
