TERRY HARMONY 2 Series - Wiring Diagram 3 - Harmony W;C Control PCB (7 Core Colour)

106 pages

Save Page as PDF

To Next Page

To Previous Page

Harmony Series 2 Homelift - XH00200 Issue: D Page 83 of 106

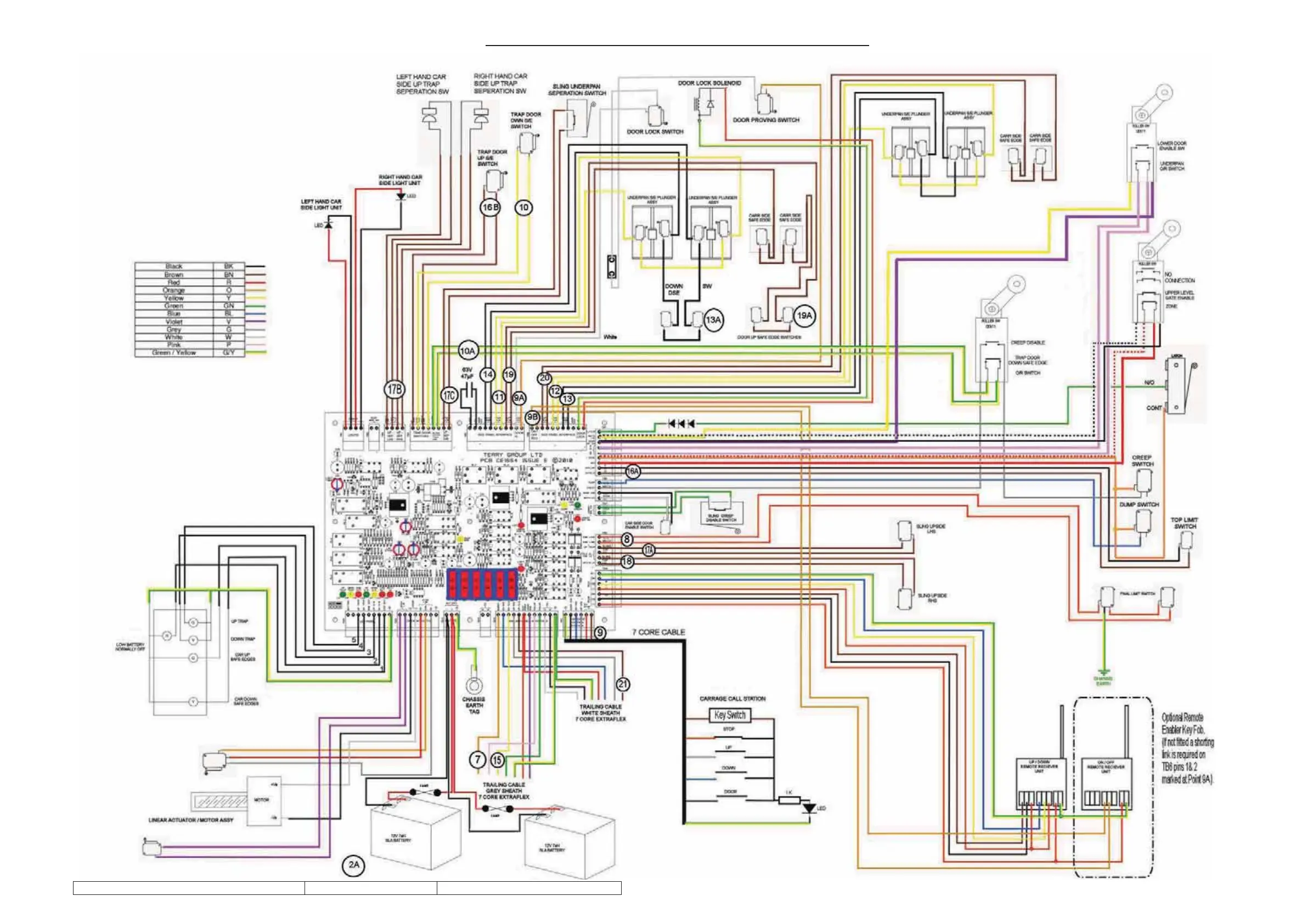

Wiring Diagram 3 - Harmony W/C Control PCB (7 core colour)

Main Page

Table of Contents2
