Harmony Series 2 Homelift - XH00200 Issue: D Page 45 of 106
Adjusting the Control Mechanism
VERY IMPORTANT:
The control mechanism must only be adjusted
when:
a) The finished floor covering is fitted on the trap door panel.
b) The trap door panel has been picked up by the car – lift the panel approx. 200mm
above the aperture.

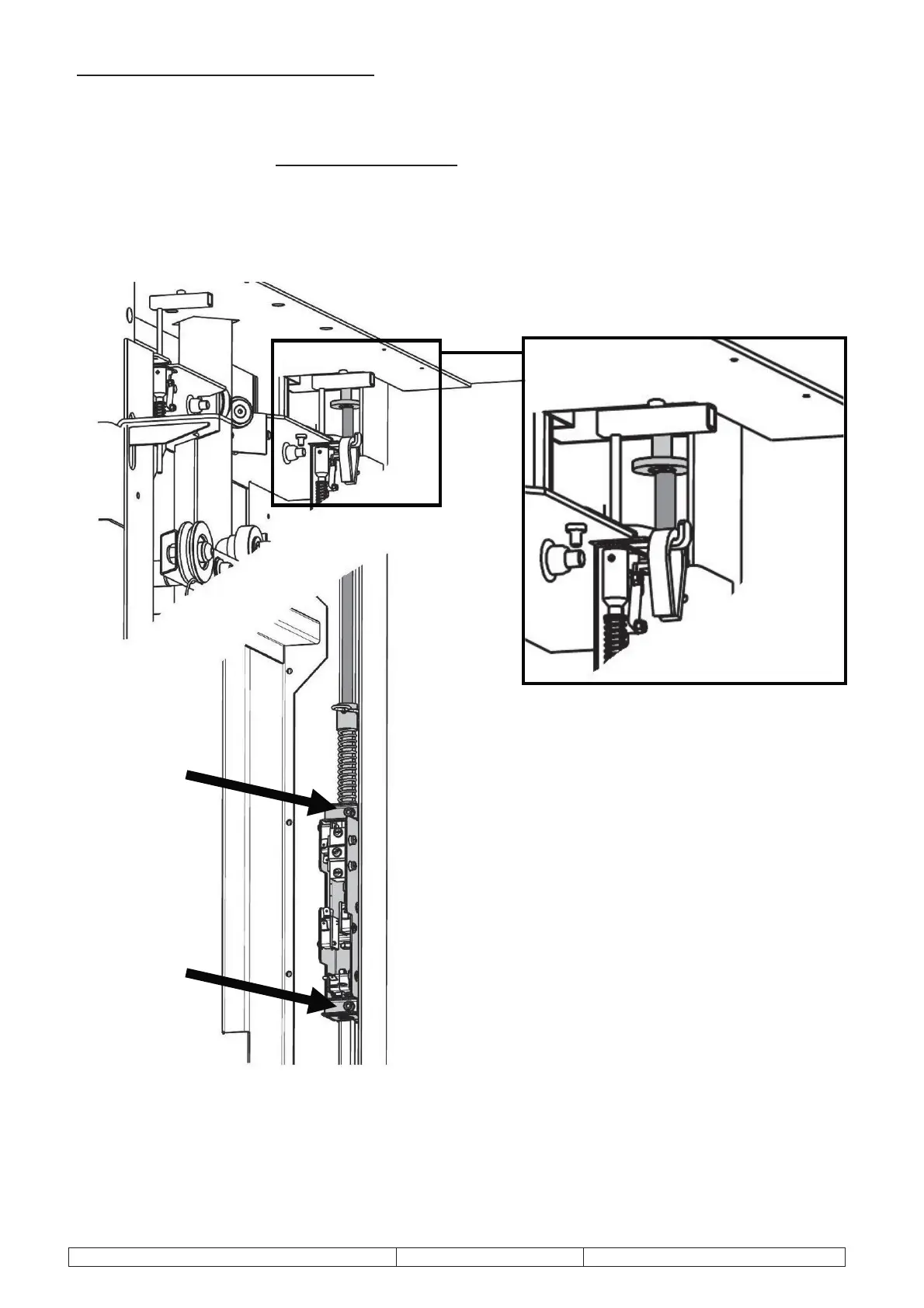

Loosen the M5 Allen screws to adjust
the control mechanism.
see A.
Move up or down so that the top of the
red actuator rod is approx. 1-3mm
away from the free-hanging disc on
the profile trim plunger.
see B.
A
A
To Next Page
