TES TES-3600 User Manual

7

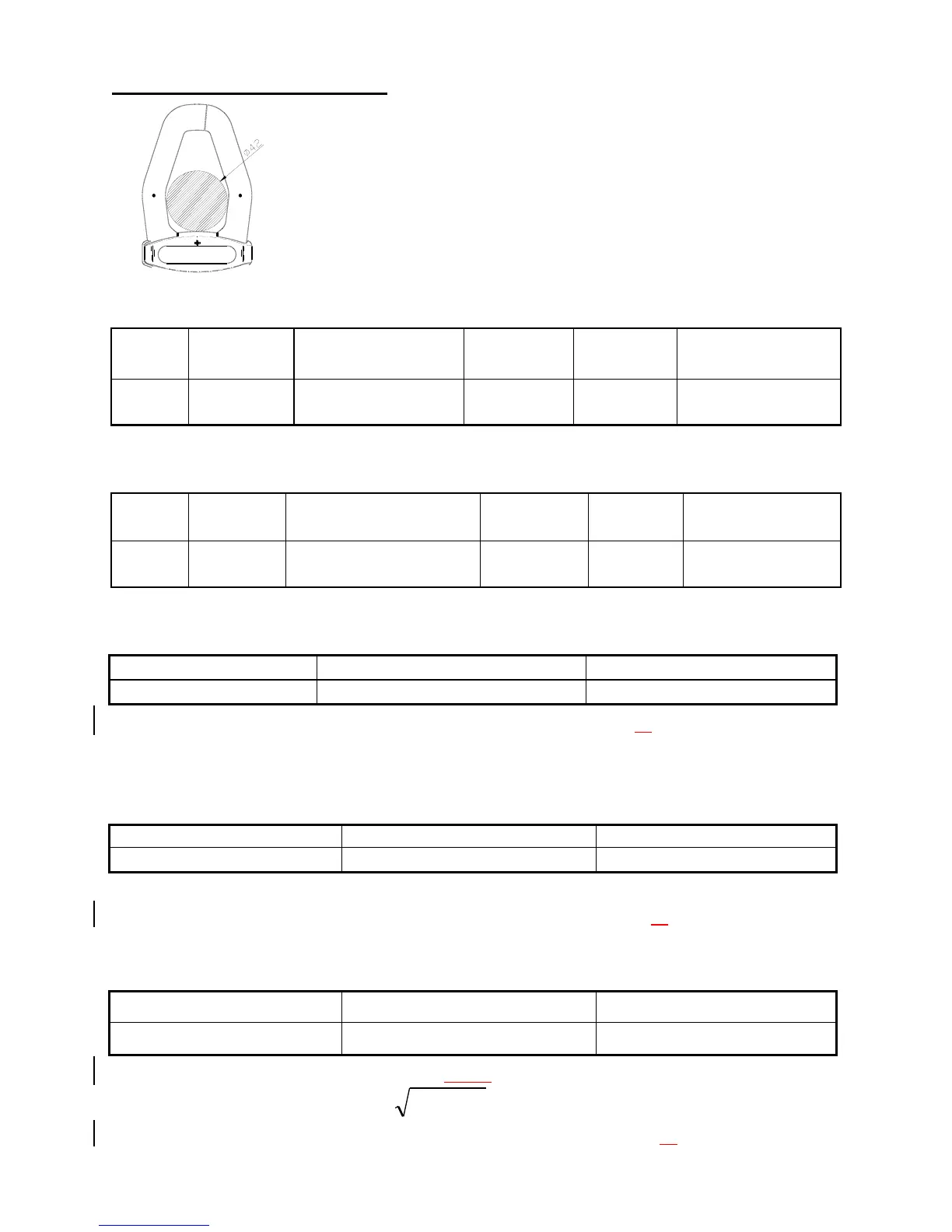

3-4 Electrical Specification
Accuracy : ±(％ of reading ＋ number of digits) at 18℃ to
28℃ ( 64℉ to 82℉) with relative humidity to 80％.
The current error is specified within the largest circle which
can be drawn inside the jaw.
 AC Voltage Trms measurement (V) :
Range
Resolution
Accuracy
Input
impedance
Overload
protection
Nominal power
system frequency
999.9V
0.1V

(0.3%rdg

10dgts)
(>50V)
2M
Ω
1000Vrms
Only 50Hz or 60Hz

Display item : RMS voltage value for each channel.
 AC Current Trms Measurement (A) :
Range
Resolution
Accuracy
(including current probe)
Current
probe output
Overload
protection
Nominal power
system frequency
999.9A
0.1A

(0.5%rdg

15dgts)
(>3A)
0.35mV/A
1000Arms
Only 50Hz or 60Hz

Display item : RMS current value for each channel.
 Active Power measurement P (KW) :
Range
Resolution
Accuracy
999.9KW
0.1KW

1.0%rdg

20dgts

Display items : Active power of each channel and its sum of multiple channels.

Polarity display : For influx (consumption) No symbol, For outflow
(regenerative) “ - ”.
 Apparent Power measurement S (KVA) :
Range
Resolution
Accuracy
999.9KVA
0.1KVA

1.0%rdg

20dgts

Measurement method : Calculate from RMS voltage U and RMS current I.

Display item : Apparent power of each channel and its sum of multiple channels.

Polarity display : No polarity.
 Reactive Power measurement Q (KVAR) :
Range
Resolution
Accuracy
999.9KVAR
0.1KVAR

1.0%rdg

20dgts

Measurement method : Calculate from apparent power S and active power P,
Q=
S P
2 2

.

Display item : Reactive power of each channel and its sum of multiple channels.
