Maintenance
39

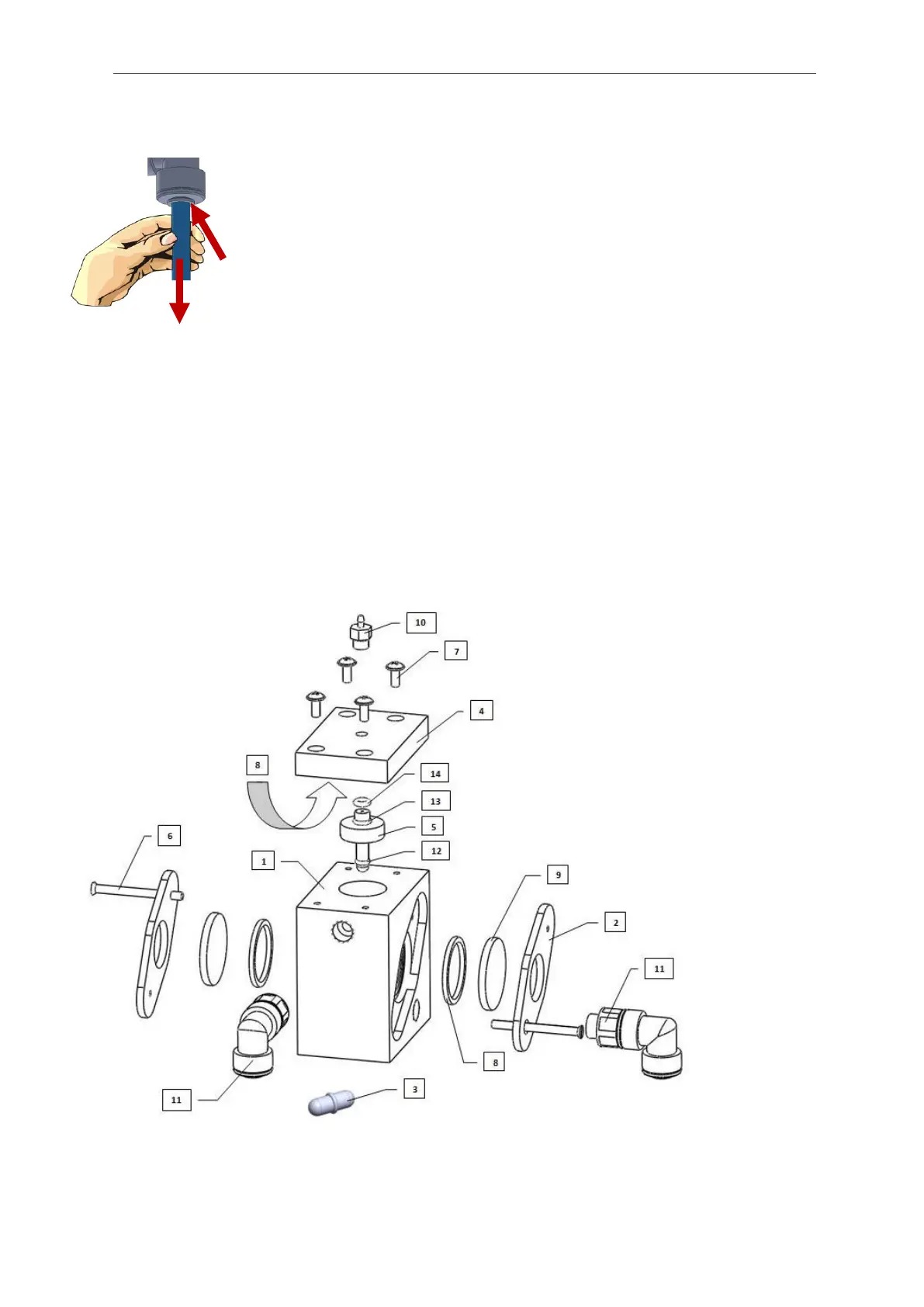

1 Measuring chamber (Article no 37615 (1-4bar)
or 37616 (0,3-1bar))
2 Sight-glass window holder (Article no. 40176)
3 Magnetic stirrer (Article no. 40050)
4 Measuring chamber cover (Article no. 37534)
5 Dosing needle (Article no. 37536)
6 Screw M3x40 (Article no. 33253)
7 Screw M3x12 (Article no. 33246)
8 Flat seal 24x2 (Article no. 33777)
9 Sight-glass window 30x3 (Article no. 40170)
10 Hose adapter (Article no. 37538)
11 Angled plug in connector (Article no. 40157)
12 O-ring 3.8x1.78 (Article no. 33797)
13 O-ring 4.5x1.5 (Article no. 11264)
14 O-ring 1.78x1.78 (Article no. 11245)
Remove the sight-glass windows (9) and the respective flat seals
(8).
Use cleaning spirit to clean the film off the sight-glass windows. If
the instrument has been used to measure hard water for a longer
period of time, a hard-to-remove film may have formed on the
sight-glass windows. In this case, clean the sight-glass windows
and the measuring chamber as described below.
Clean the measuring chamber with a cleaning agent suitable for
decalcification and rust removal (max. 5 – 10% solution). Flush the
measuring chamber thoroughly after cleaning.
Once the measuring chamber has been fully cleaned, it can be
reinstalled. Reassemble in reverse order to disassembly.
Once all assembly work has been completed, bleed the lines be-
fore restarting the instrument (see the section entitled “Inserting
the indicator bottle” on page 26).
Push locking
ring upwards
