Overview of the AFE5832 EVM GUI Features
B.1.1 HSDC Pro Related Parameters
The Quick Setup tab includes advanced features under the HSDC Pro related Parameters section on the
right side of the GUI. The feature explanations follow and are shown in Figure 48.
• fsamp: Displays the sampling frequency
• ADC Input Target Frequency: This frequency should closely match the input signal that is being
supplied

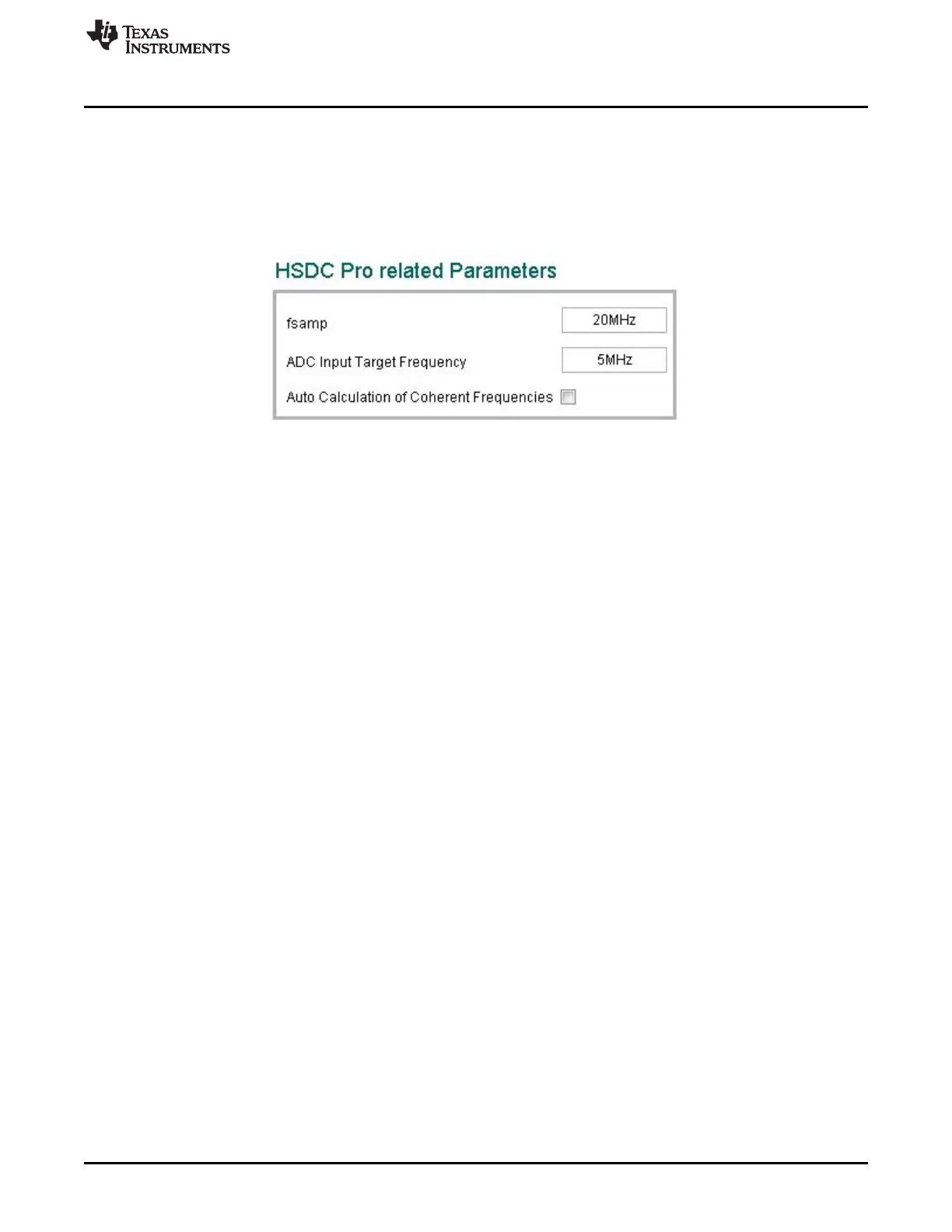

Figure 48. AFE5832: Quick Setup: HSDC Pro Related Parameters
