Overview of the AFE5832 EVM GUI Features
B.3.2 Test Pattern Subtab
The Test Pattern subtab for the AFE5832 has the following feature:
• Selecting preset or custom test patterns to be generated by ADC for LVDS or on certain clock lines

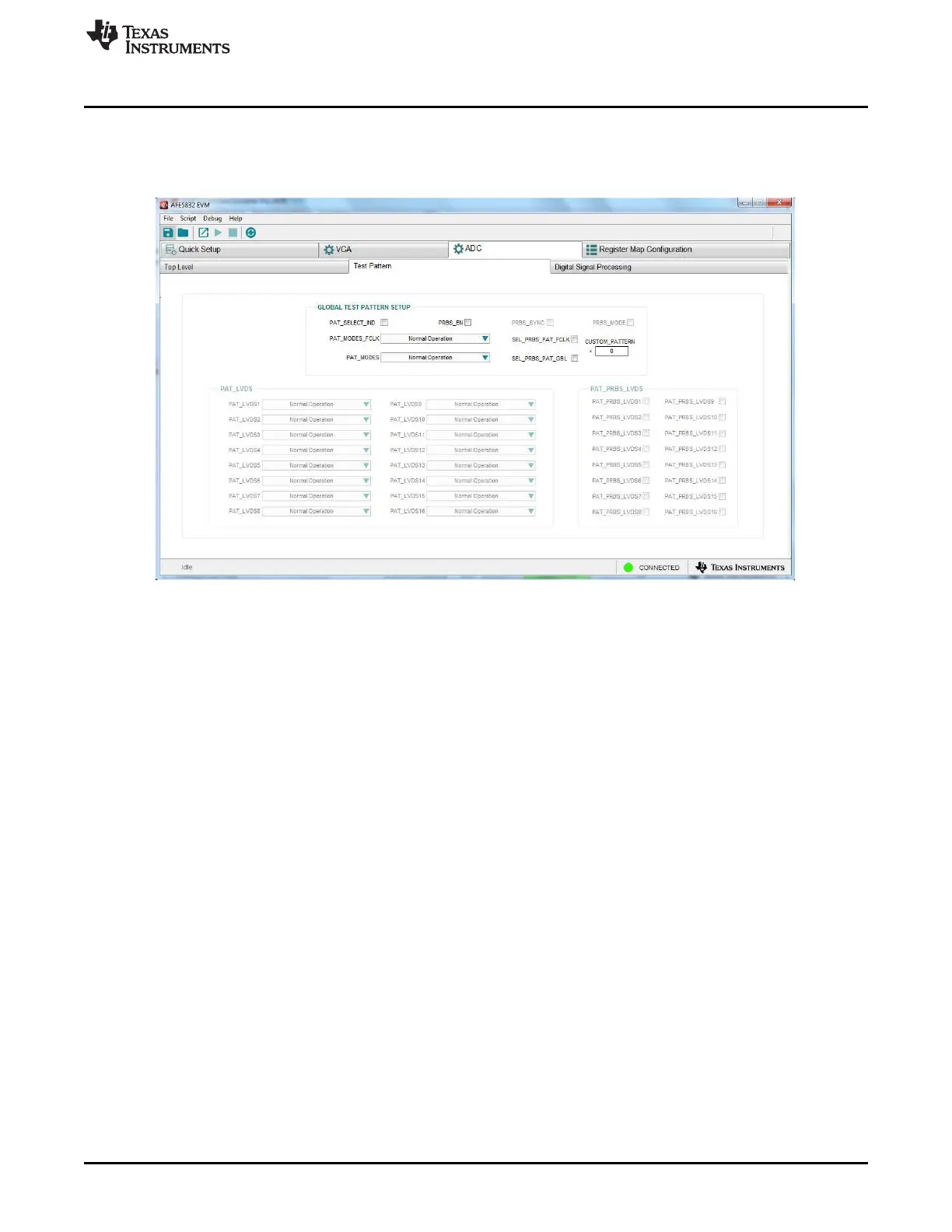

Figure 52. AFE5832: ADC: Test Pattern
