Overview of the AFE5832 EVM GUI Features
B.2 VCA Tab
The VCA tab contains two subtabs: Global VCA Settings and CW Mixer.
B.2.1 VCA and CW Mixer Subtab
The VCA and CW Mixer subtab for the AFE5832 has the following features:
1. Settings for configuring LNA high-pass filter and setting corner and cut-off frequencies
2. Enable or disable LNA HPF at certain channel inputs
3. Fully or partially powering down entire blocks or individual channels in the VCA block
4. Configuring the device in CW mode
5. Controls for setting the corresponding CW mixer channel phases

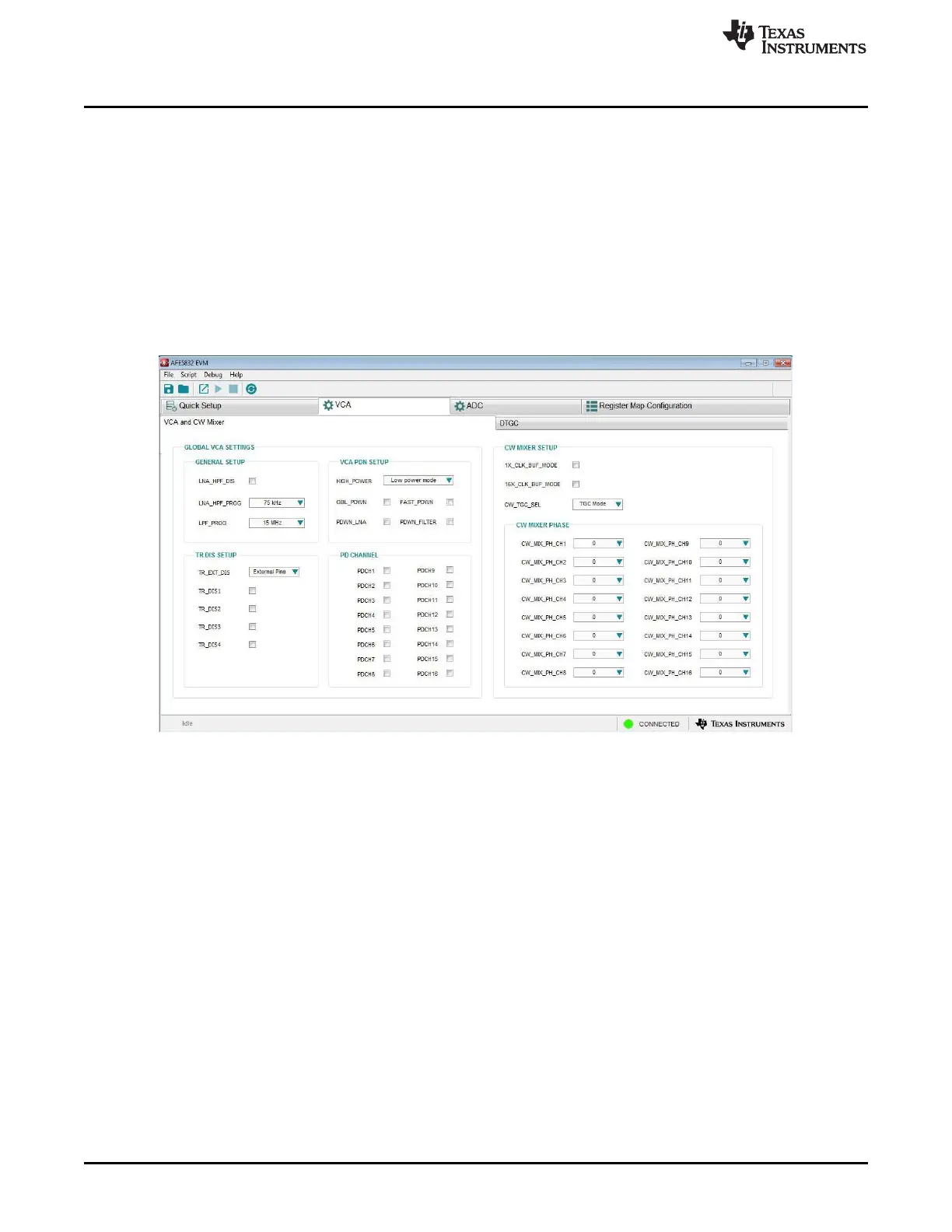

Figure 49. AFE5832: VCA: VCA and CW Mixer
