LMX2572EVM Evaluation Instructions
3.2.6 Register Readback
To read back the written register values,
1. Set MUXout_SW Switch 2 to Break position. See Section 2.7.1 for details.
2. In TICS Pro, set MUXOUT_LD_SEL to Readback.

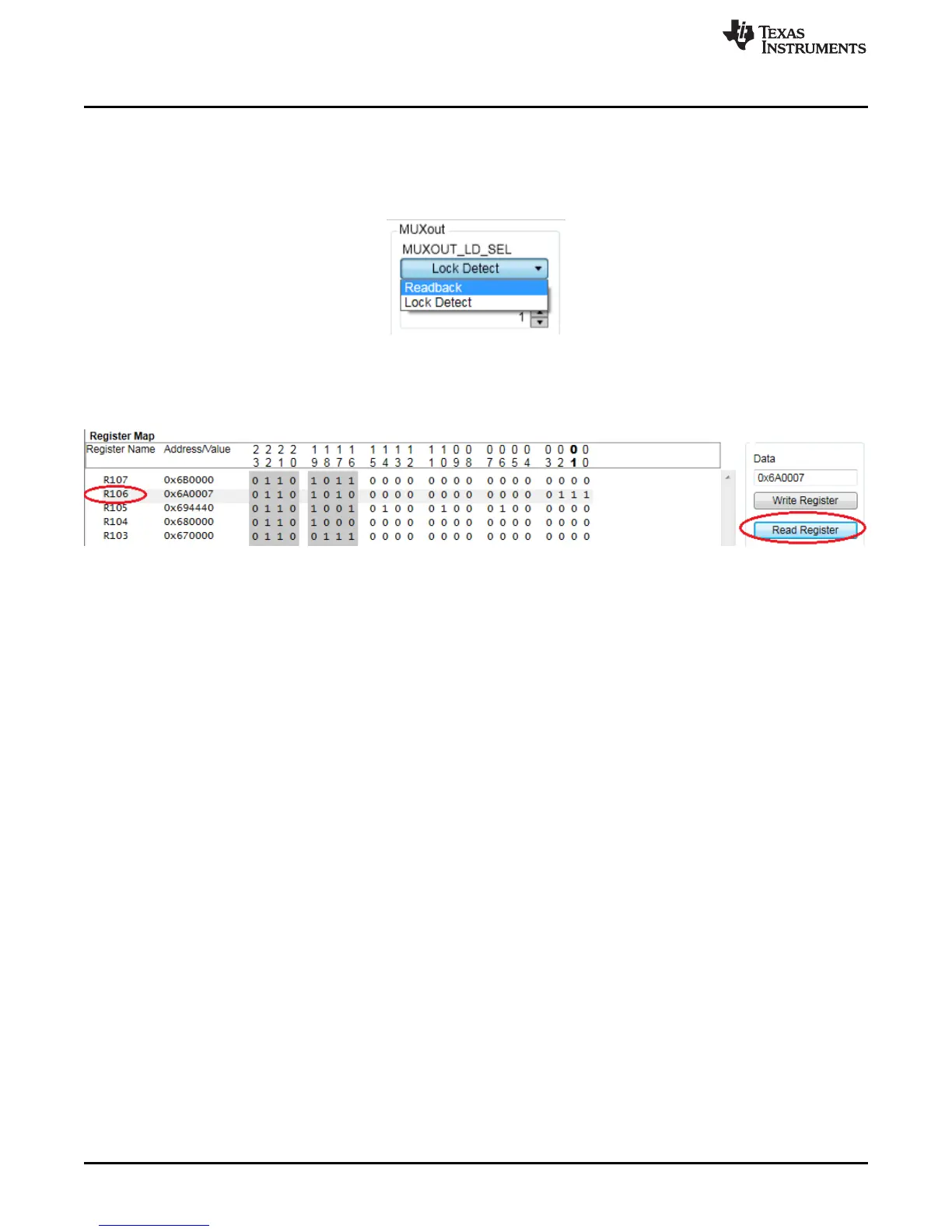

Figure 17. Readback Setting
3. Click on the Register Name that you want to read back.
4. Click the Read Register button to read back the register value.
Figure 18. Register Readback
