B.3 Typical Output Characteristics

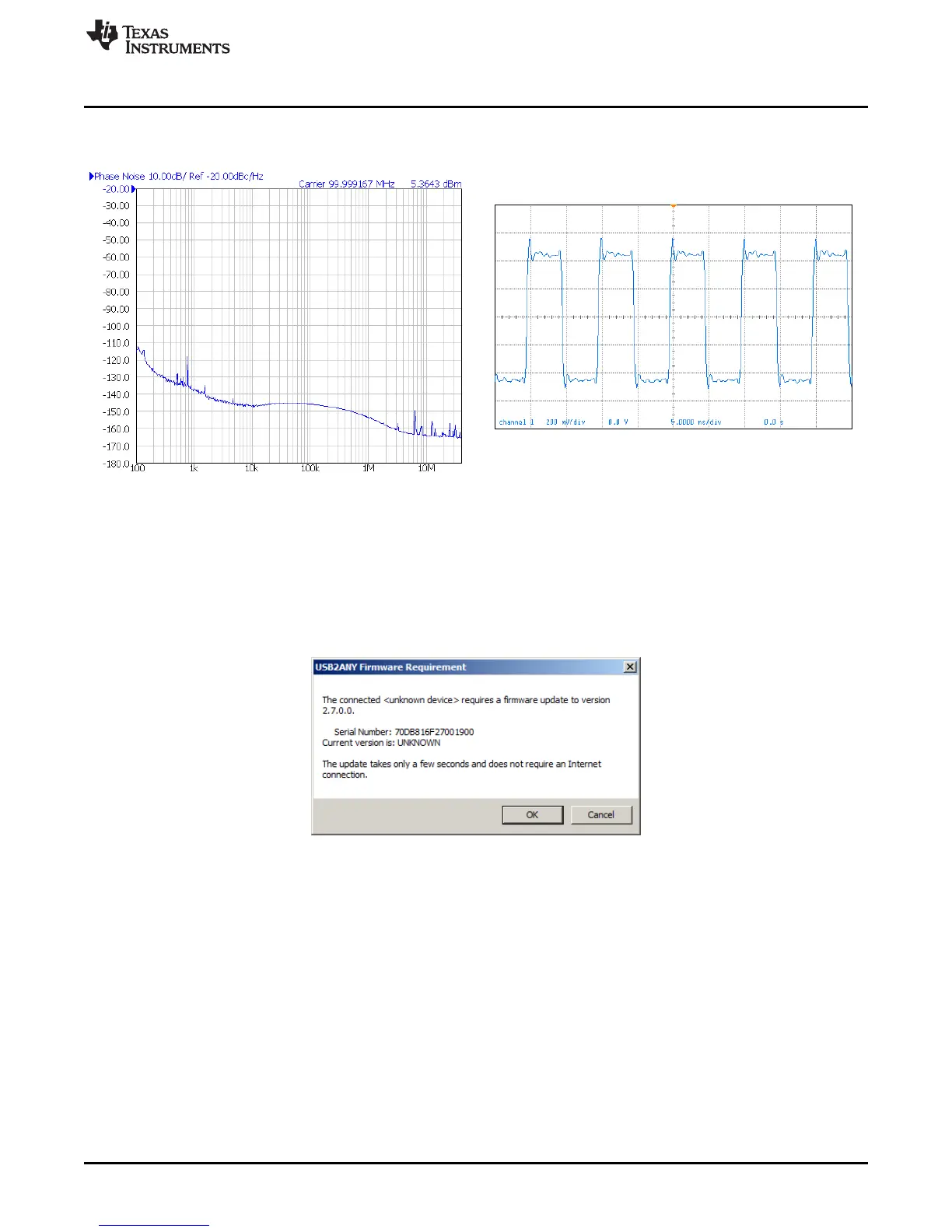

Figure 28. Default Output Phase Nosie Figure 29. Default Output Waveform
B.4 Firmware Update
Usually when the Reference PRO board is used at the first time, TICS Pro will request for a firmware
update. Simply follow the pop-up instructions to complete the update. This is necessary to ensure that the
USB connection between the PC and the Reference PRO board is properly setup, otherwise the
programming to LMX2572EVM will not be successful.
1. When you see this message, click the "OK" button.
Figure 30. Firmware Requirement
2. Next, follow the on-screen procedure.
