LMX2572EVM Evaluation Instructions
1 LMX2572EVM Evaluation Module
1.1 Evaluation Module Contents
In the box, there are:
• One LMX2572EVM board (SV601308-003).
• One Reference PRO board (SV601349).
• Two SMA Male-to-Male adaptors (132168).
• One USB cable.
• One 10-pin ribbon cable.
1.2 Evaluation Setup Requirement
The evaluation will require the following hardware and software:
• A DC power supply
• A spectrum analyzer or a signal analyzer
• A PC running Windows 7 or more recent version
• An oscilloscope (optional)
• A high quality signal generator (optional)
• Texas Instruments Clocks and Synthesizers TICS Pro software
• Texas Instruments PLLatinum Simulator Tool (optional)
1.3 Resources
Related evaluation and development resources are as follows:
• LMX2572 data sheet
• TICS Pro software
• PLLatinum Simulator Tool (PLL Sim)
2 Setup
2.1 Connection Diagram

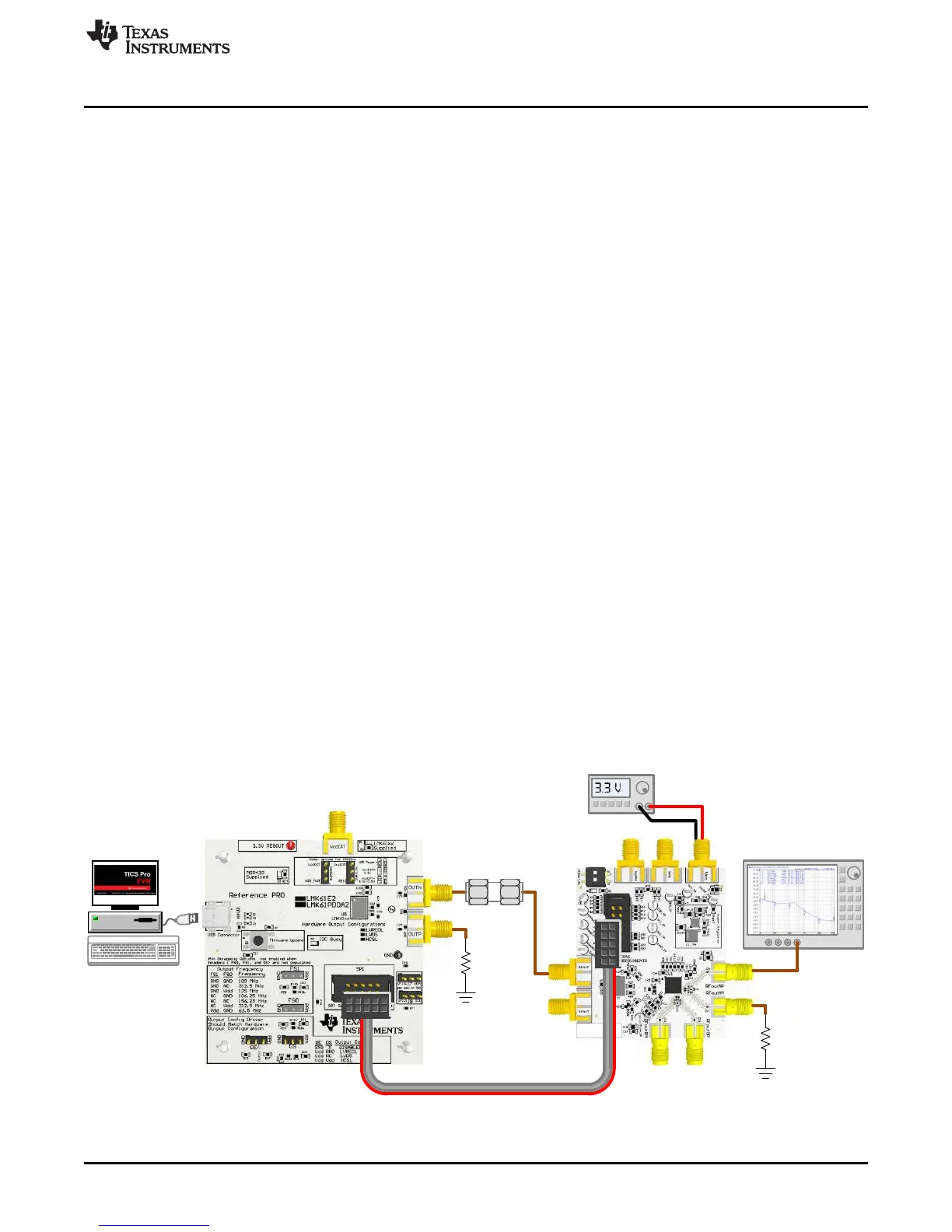

Figure 1. EVM Connection Diagram
