Texas Instruments TMS320F28069 - Page 101

9
4
SPISOMI
SPISIMO
SPICLK
(clock polarity = 1)
SPICLK
(clock polarity = 0)
Master In Data
Must Be Valid
Master Out Data Is Valid
SPISTE
(A)
1
2
3
5
8
Copyright © 2010–2016, Texas Instruments Incorporated Detailed Description
Submit Documentation Feedback
Product Folder Links: TMS320F28069 TMS320F28068 TMS320F28067 TMS320F28066 TMS320F28065
TMS320F28064 TMS320F28063 TMS320F28062
101
TMS320F28069 , TMS320F28068 , TMS320F28067 , TMS320F28066
TMS320F28065, TMS320F28064, TMS320F28063, TMS320F28062
www.ti.com SPRS698F –NOVEMBER 2010–REVISED MARCH 2016
A. In the master mode, SPISTE goes active 0.5t
c(SPC)
(minimum) before valid SPI clock edge. On the trailing end of the word, the SPISTE will go inactive 0.5t
c(SPC)
after
the receiving edge (SPICLK) of the last data bit, except that SPISTE stays active between back-to-back transmit words in both FIFO and non-FIFO modes.

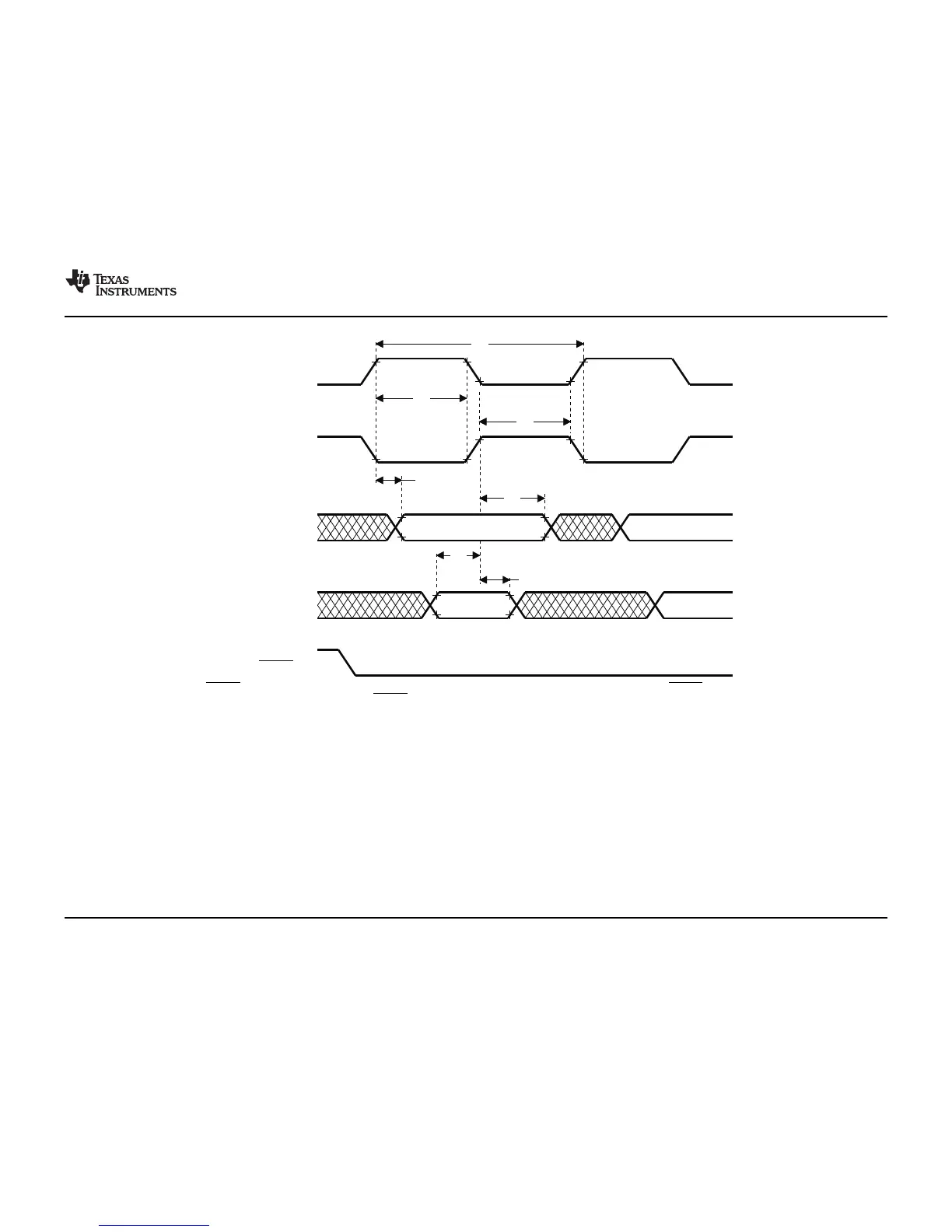

Figure 6-33. SPI Master Mode External Timing (Clock Phase = 0)
