9 ADJUSTMENTS
9.2 ADJUSTING SPEED CONTROL SWITCH __________________________________

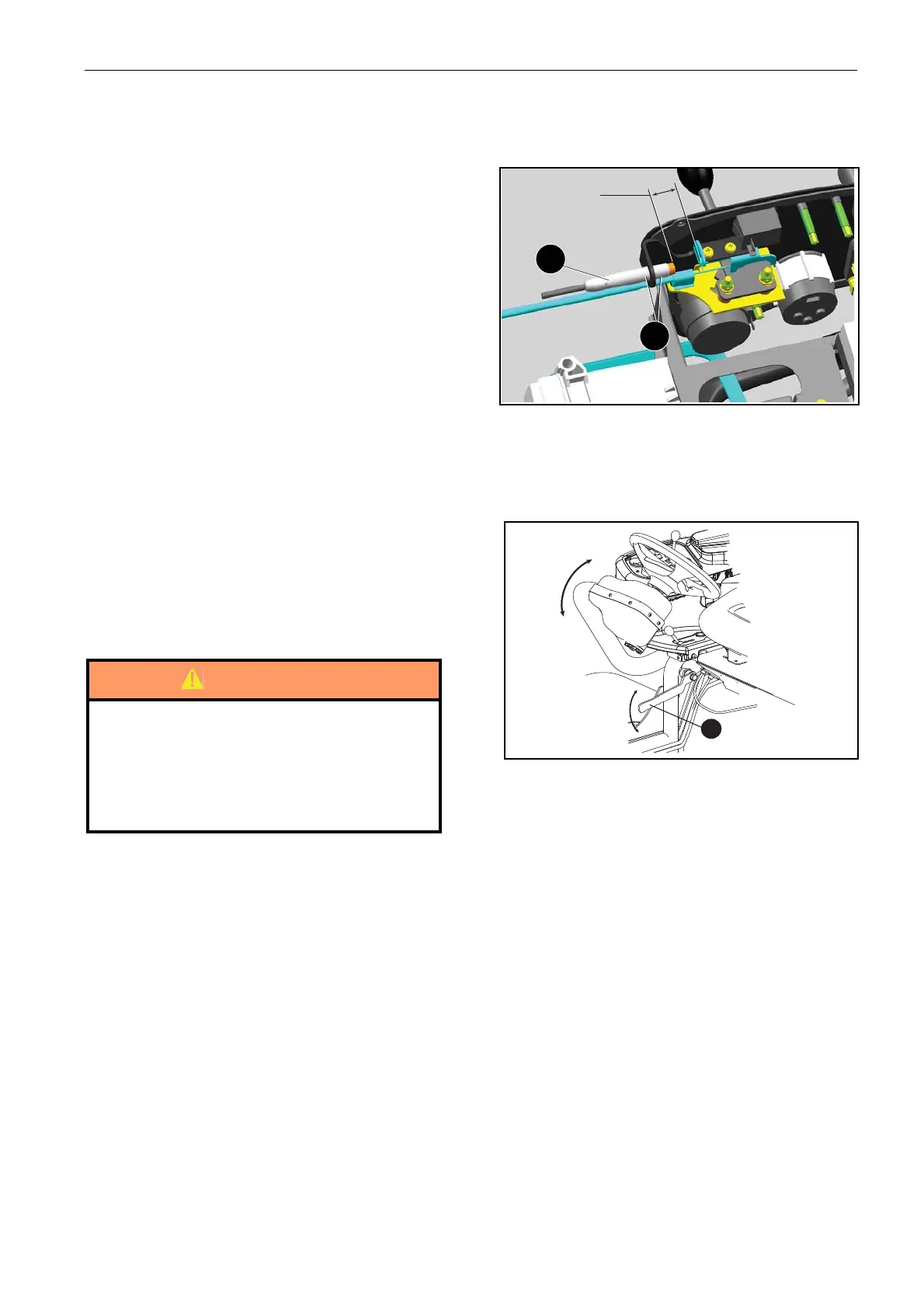

The speed control sensor is positioned under the control
panel. The mechanism is activated when the speed con-
trol lever is cycled from the transport and mow positions.
To set the sensor (A), position the control lever in the
“mow” position, loosen nuts (B), and adjust sensor until a
gap of 4mm is achieved. Tighten nuts. Cycle control lever
to the “transport” position, to ensure bolt head is clear of
switch.
To ensure correct set-up, the cylinders MUST only rotate
when the switch is activated. i.e the Mow position.
9.3 STEERING ARM ADJUSTMENT __________________________________________
Support the control arm to avoid a sudden drop while
adjusting its height. Loosen the Locking Lever (A) to allow
the steering wheel and control arm to be adjusted up or
down. Tighten the locking lever when steering wheel is at
the desired position.
WARNING
DO NOT attempt to adjust the control
arm position while the machine is
moving. The operator may loose control,
causing possible injury to themselves or
bystanders.
