9 ADJUSTMENTS
9.4 REAR SWING OUT ARM ________________________________________________
NOTE:The rear swing out arm is to allow you easy access
to the rear cutting head. The cutting heads must be in the
raised position. DO NOT swing the arm out with the cutting
heads in the lowered position.
1. The grass catcher MUST BE removed before you
swing the arm out.

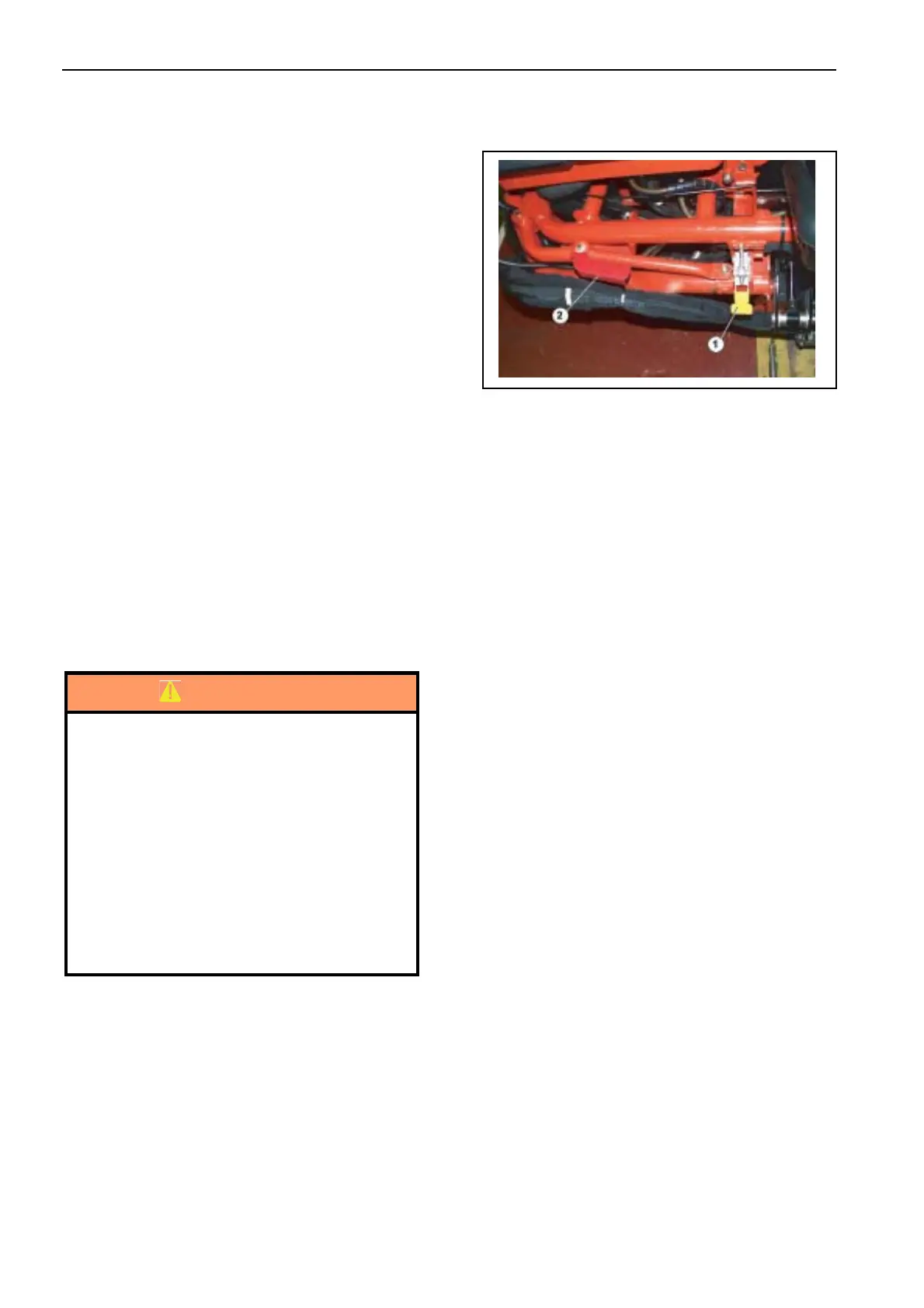

2. Release the latch (1).
3. Pull the handle (2) and swing the rear arm and
cutting head out.
4. After you are properly seated in the operator's seat, restart the unit and lower the cutting heads.
5. Shut off the unit and remove the rear cutting head for service.
6. After you have completed your servicing, secure the cutting head to the rear arm.
7. After you are properly seated in the operator's seat, restart the unit and raise the cutting heads.
8. Shut off the unit and swing the rear arm back under the unit and secure the arm with the draw latch.
9. Install the grass catcher.
WARNING
To avoid the possibility of serious injury,
ALWAYS be properly seated in the
operator's seat while the engine is
running.
NEVER attempt to drive the machine
while the rear arm is not secured by the
draw latch. Driving the machine with the
rear arm out, will result in damage to the
machine and/or cause serious injury or
death of the operator and/or bystanders.
